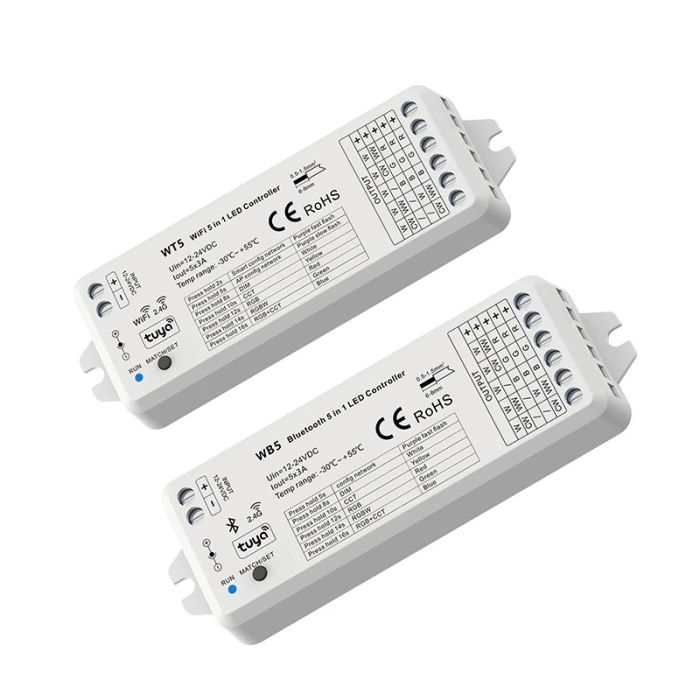

This is 5 in 1 controller series, with WiFi & Bluetooth option, same function, compatible with Tuya paltform,
widely used with single color, CCT, RGB, RGBW, RGB+CCT 1-5 CH LED strip light.
Base on Tuya playform, it can be controlled by voice order, and music control function.
Origin: CN(Origin)
Model Number: WT5 WB5
Remote Distance: 10m
Item Type: RGB Controler
Material: plastic
Warranty: 1 year
Certification: ce
Certification: ROHS
Connection Mode: via bluetooth, wifi
Power Source: DC
Controled Method: APP, voice control
Features: compatible with Tuya
Wattage: 180W@12V, 360W@24V
Applicable Lights: LED strip light
Oscillation frequency: 2.4Ghz
Max. Load Power: 360W
Voltage: 12-24V
output current: 3A x 5C
output type: constant voltage
waterproof: Non-waterproof
dimming gray scale: 4096 levels
PWM frequency: 1000Hz
Protection: Reverse polarity, Over-heat
size: 114x38x20 mm
RF remote: option
Feature:
5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
DC power socket input and 5 channel constant voltage output.
Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.
Voice control, support amazon ECHO and TmallGenie smart speaker.
Match with RF 2.4G remote control optional.
User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
Each WT5 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously
Mechanical Structures and installations
Tuya APP network connection
Power On, the power Off, then on again, then Off again, do this action 5 times to reset the controller to smart config status, you will find the controller on Tuya app,
If Tuya APP connect the controller successfully, the RUN LED indicator will stop flash, and it will display different color to tell you what type of light it is set:
white: single color light
yellow: CCT
red: RGB
green: RGBW
blue: RGB+CCT
you can change the light type in Tuya App.
Tuya APP interface
CE and RoHS approved
