Using WS2801 RGB Strips, they would be capable of displaying lettering messages and all kinds of patterns
as you design via SD Card Controller. You would order SD Card Controller on our website too, We will send
the free editor software within the SD Card, so you would enjoy the amazing performance as you want.
This is very high end led strip, each LED is also independently addressable, opening up entirely new lighting possibilities.
Each LED is powered by a WS2801 IC. There are 32 LEDs per meter, and therefore a total of 32 'pixels' on the 1 meter strip you
will receive. At full brightness the strip will require 1.8A of power, so be sure you have an ample power supply. We also stock
the power supplies, you would get them here.
The WS2801 employs a 2-wire serial data connection, similar to SPI or I2C. ICs are chained together which means whole strings
can be controlled using just 2 pins on your microcontroller.
IC type: WS2801
IC quantity: 32 ICs per meter, 5 meters length, total 160 ICs.
LED type: RGB SMD 5050 LED
LED quantity: 32 LEDs per meter, 5 meters length, total 160 LEDs.
Pixel quantity: 1 LED is 1 Pixel. 32 Pixel per meter, 5 meters length, total 160 Pixel.
Cuttable: Strips can be cut every LED (1 IC, 1 LED per segment)
Working voltage: DC5V
Current: 1.8A
Lumen per 1M/32LED: R29/G81/B27 lm
Power(W/M): approx. 9W/Meter, 5 meters length, total approx 45W
Light source: RGB 5050 Top SMD LEDs
Beam angle 120 deg.
Pixel pitch（mm） P31.25mm
Pixel resolution（Dot/㎡） 1024
Printed circuit board thickness approx. 0.25mm
Operation Temperature -10℃-40℃
Storage Temperature -20℃-80℃
Life span: more than 50000hrs
Dimension: approx L5000mm (5M) x W12mm x T2.5mm The original PCB width is 12MM, if you order waterproof led strip,
then with the silicon, the width is around 14MM.
Color of PCB Background: Pls Choose
Packaging:5 Meters Strips/reel in antistatic bag
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back

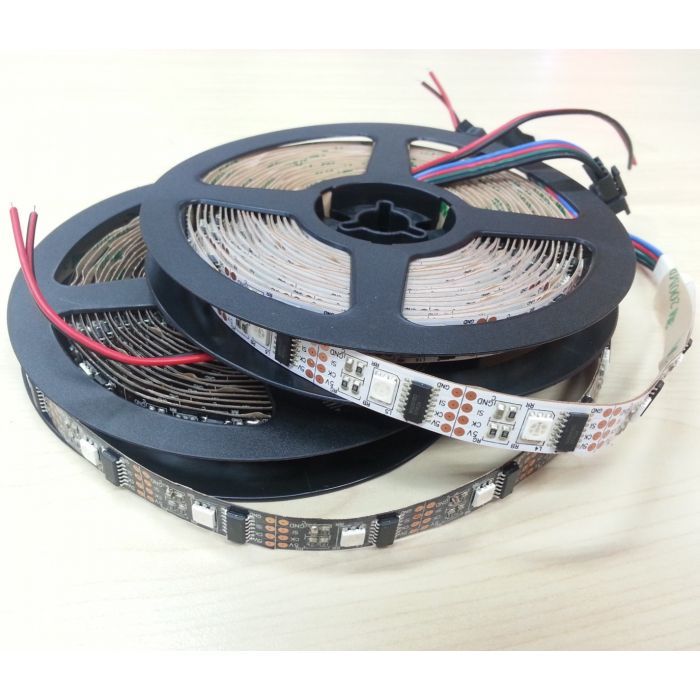

Package Included: 1 Roll of 5 Meters (16.4 Ft) DC 5V WS2801 RGB LED Strip 32LED/M 32IC/M Digital Light
This intelligent WS2801 IC chips SMD5050 RGB LED Strip has 32pcs 5050 RGB LED With 32paths driver IC inside per meter to drive
32 pixels,Connecting with the controller can get more than 80 programs which are various color changing and almost magic effect.
The following images is the projects that we made with our WS2801 Digital LED strip and T-1000S SD Card Digital RGB LED
2048 Pixel Controller (There is free software come with sd controller that you would programme for the pattern you want)
CE and RoHS approved
