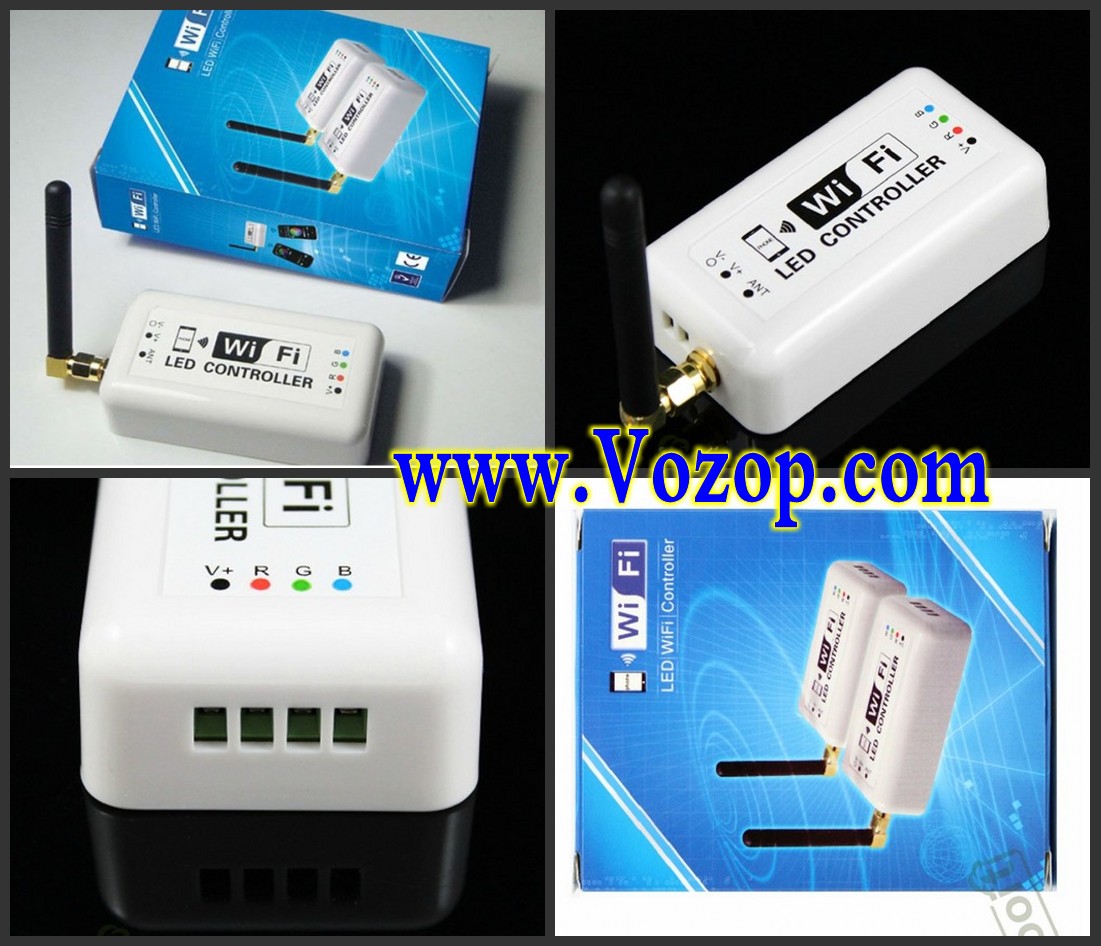

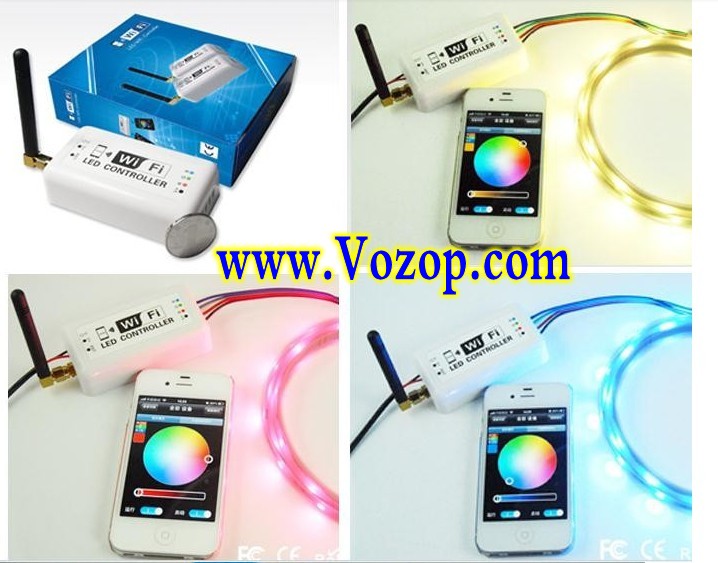

This Wifi LED RGB Controller is designed for LED strip, module etc. After easy installation and settings,
you can use you Phone (IOS or Android system) to control the light. The remote control distance reach
50 meters indoor and more than 100 meters outdoor.The music mode was added to the newest app
for both Android and iOS.It allows you control the LED strip via the music in your cellphone and gives
you more fun.
Support both wifi control of iOS products(such as iPod, iPad, iPhone, iMac), and Android mobile devices
such as Samsung, HTC, Nokia, etc.

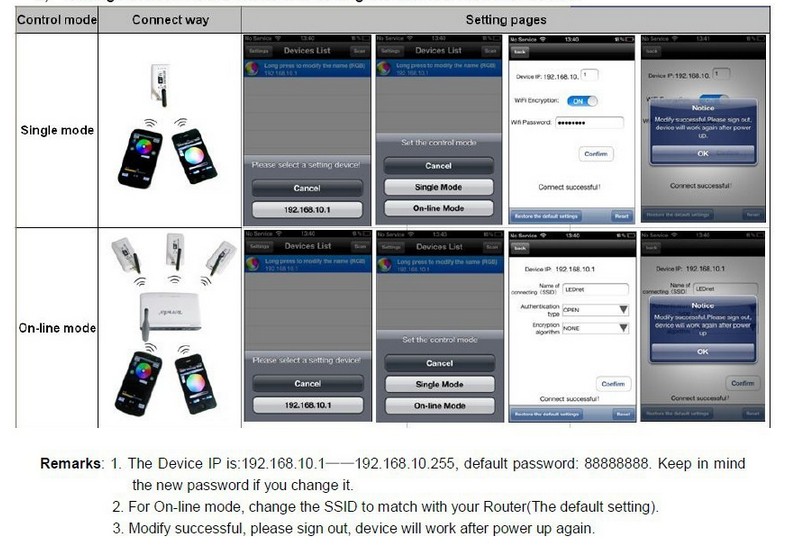

Switch freely via phone between stand-alone and on-line modes.
Strong compatability with Android 2.3 version or above with wifi function, with iOS 4.3 or above.

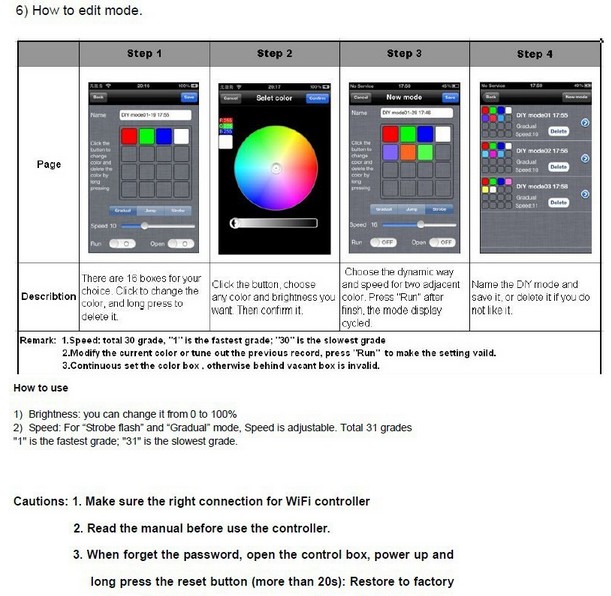

Built-in 20 fixed modes, infinite changes mixed by the three primary colours--red, green and blue.
Small-sized, energy-efficient, environmental protection, great convenience and humanized design.

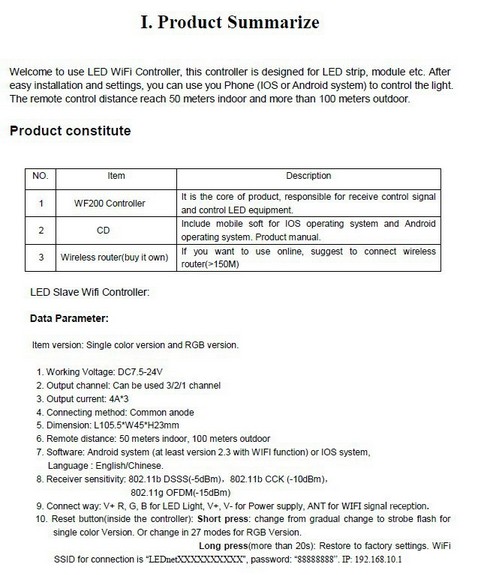

Specifications:
Item version RGB version
Working voltage DC 7.5-24V
Output current 4A * 3
Connecting method Common anode
Remote distance 50 Meters indoor, 100 meters outdoor
Software Android system(at least version 2.3 with WiFi function) or iOS system(version 4.3 or above)
Language English/Chinese
Receiver sensitivity 802.11b DSSS(-5dBm), 802.11b CCK(-10dBm), 802.11g OFDM(-15dBm)
Connect way V + R, G, B for LED light, V+, V- for power supply, ANT for wifi signal reception

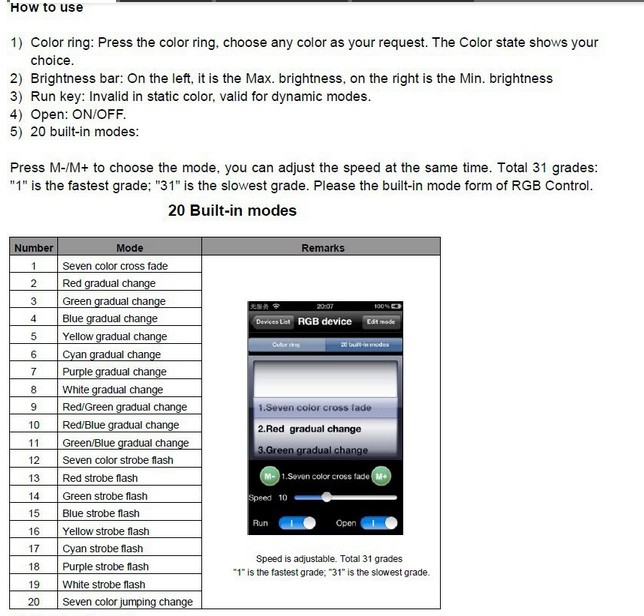

Short press: change in 20 modes for RGB version.

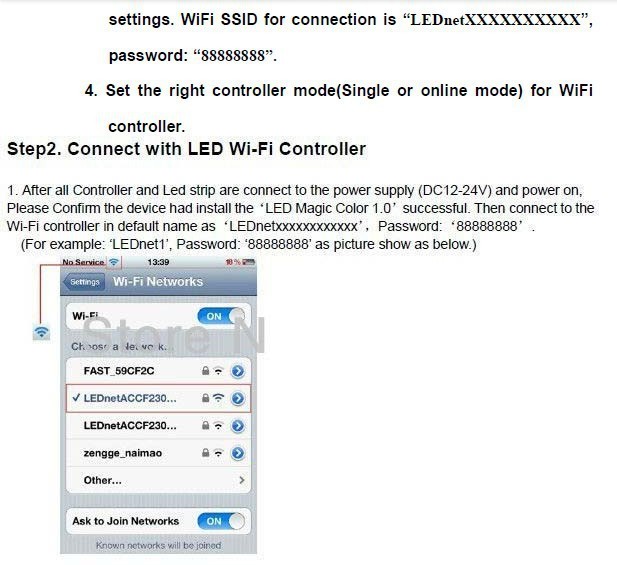

Long press(more than 20s): Restore to factory settings. Wifi SSID for connection is"LEDnetXXXXXXXXXX",
password: "88888888", IP: 192.168.10.1
Reset button(Inside the controller)
Product size Approx. 9.3 * 4.5 * 2.2cm / 3.66 * 1.77 * 0.87in
Product weight Approx. 53g / 1.86oz (Not including the antenna)
Package included:
1 Piece of Wifi LED RGB Controller For Iphone Ipad IOS System Android Mobile Phone
1 Piece of Antenna
1 Piece of CD
1 Piece of User's Manual
CE and RoHS approved
