Whole Structure Bridge Type Gantry Machining Center

$999.99
In stock
SKU
Whole Structure Bridge Type Gantry Machining Center

The listed price is not real price, For correct product's price or customized product, Pls feel free to
contact service@vozop.com or Pls contact WhatsApp +86 13062213712 Adam Wang

Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various
workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working
machine, pipe working machine etc. In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

FAQ

Q: What is the lead time for this machine?

A: It will take around 3 months

Q: What about the after-sales service?

A: We have the local service team. We can offer you good after-sales term for your customer.
And we also have the spare parts in stock locally.

Q: What about the shipping

A: It is a big size machine comparing other conventional CNC machine, so it will be shipped by FR container.

The bridge type portal gantry is big size bridge type gantry machining center.
The worktable is fixed and the crossbeam is moving. And it is also a rigid machining gantry center.

Overview

The bridge type portal gantry is big size bridge type gantry machining center.
The worktable is fixed and the crossbeam is moving. And it is also a rigid machining gantry center.

Very rigid structure which can be used for heavy cutting

Can load very heavy workpiece

Less floor covering

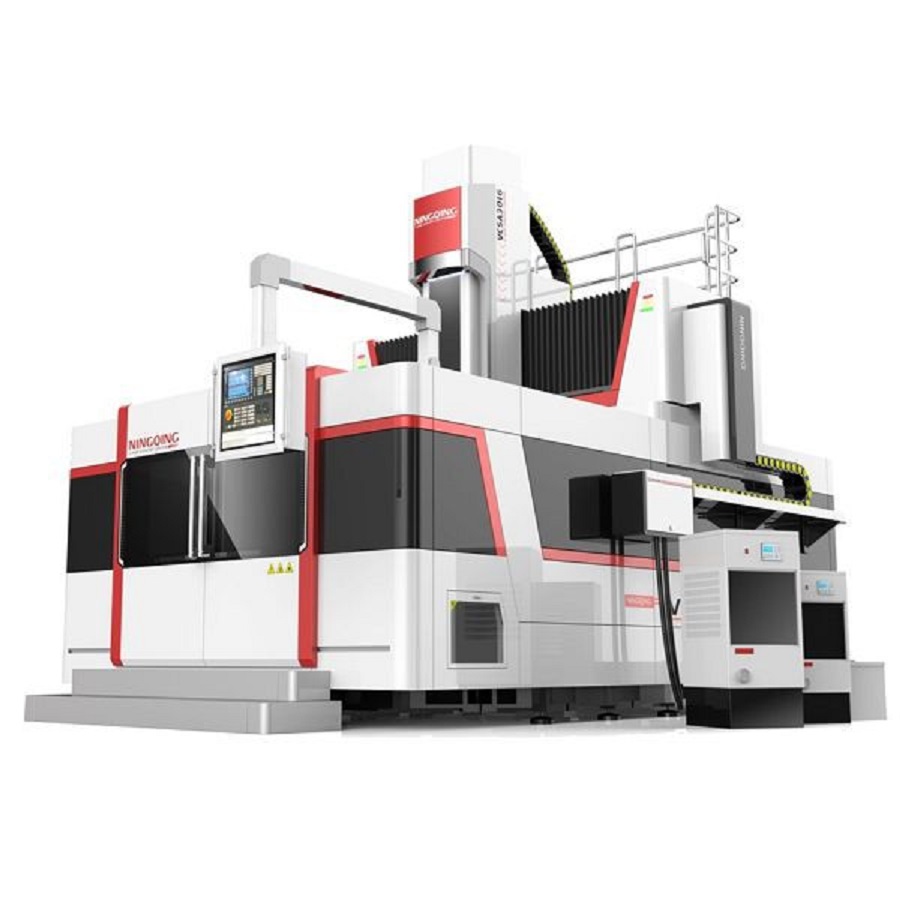

Whole_Structure_Bridge_0321_1

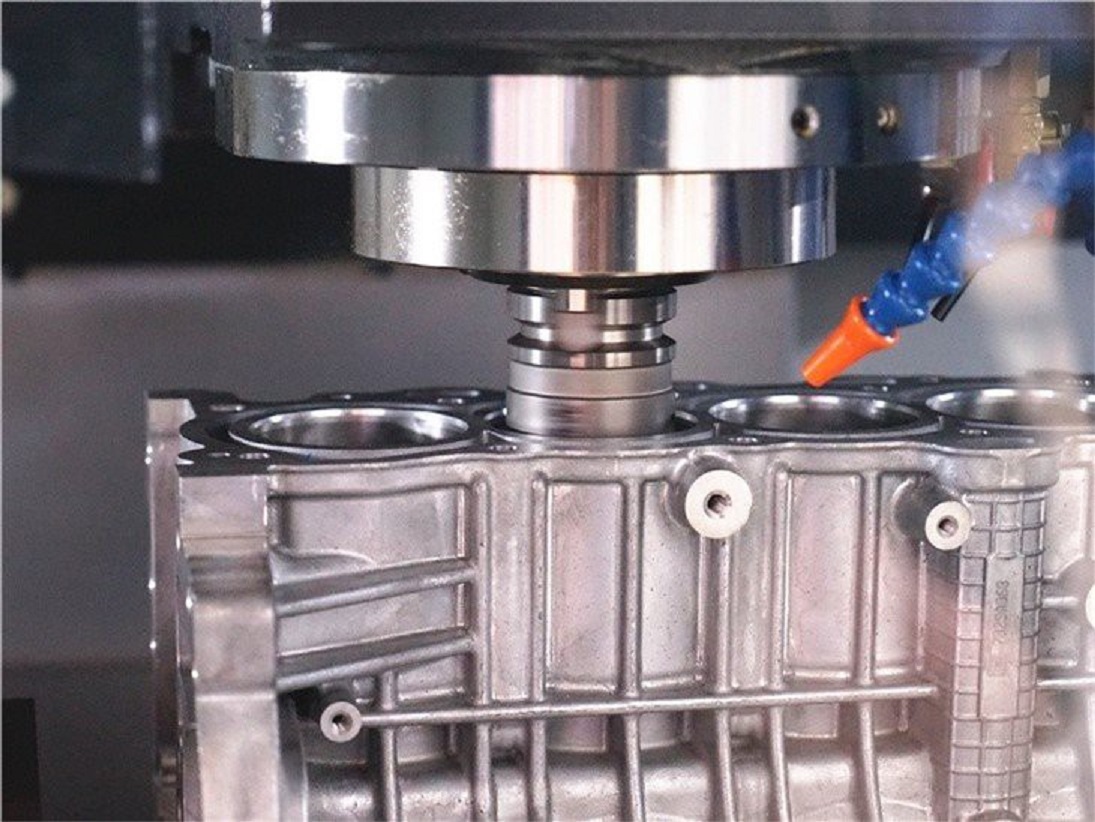

Whole_Structure_Bridge_0321_2

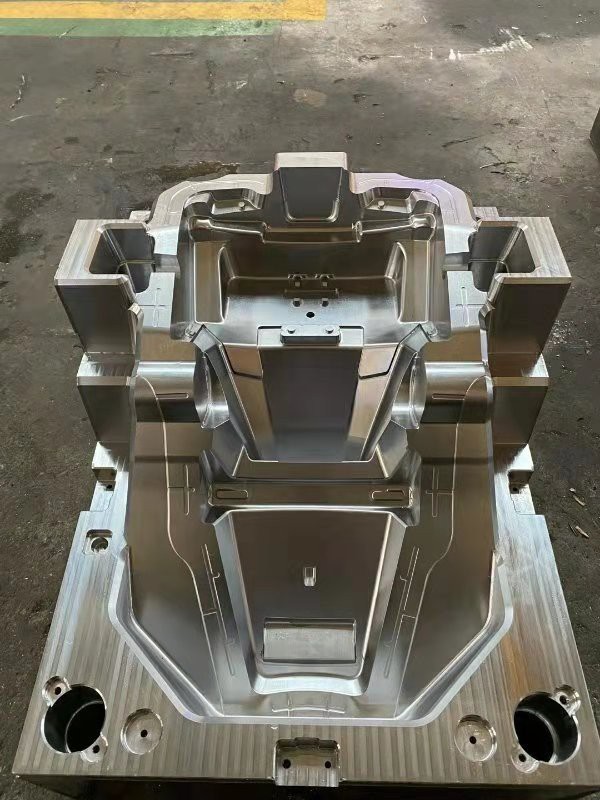

Whole_Structure_Bridge_0321_3

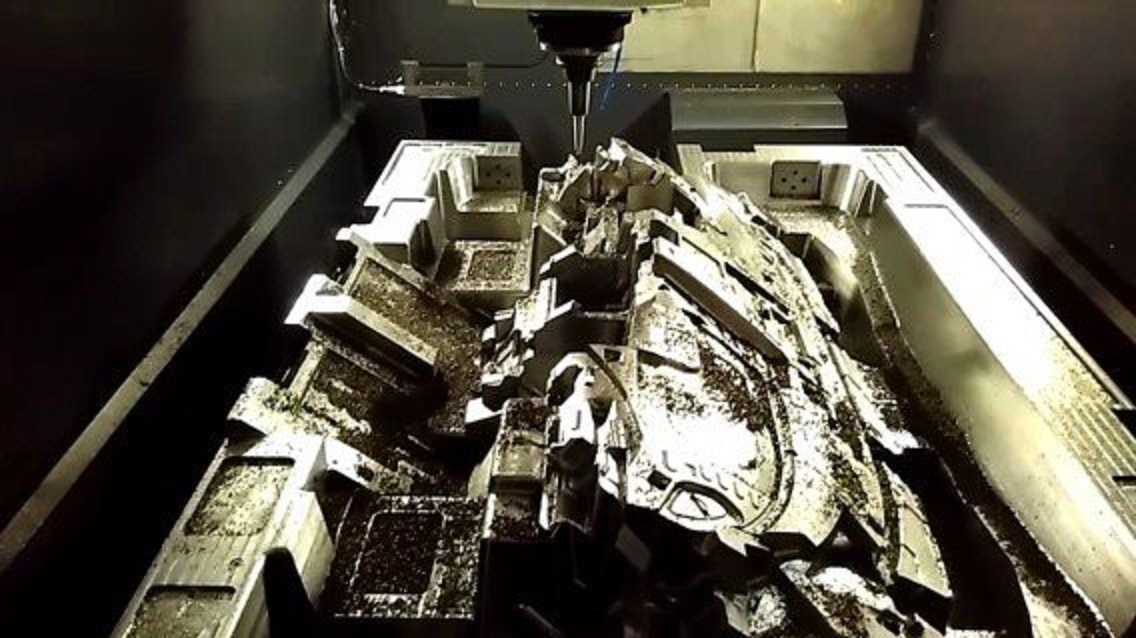

Whole_Structure_Bridge_0321_4

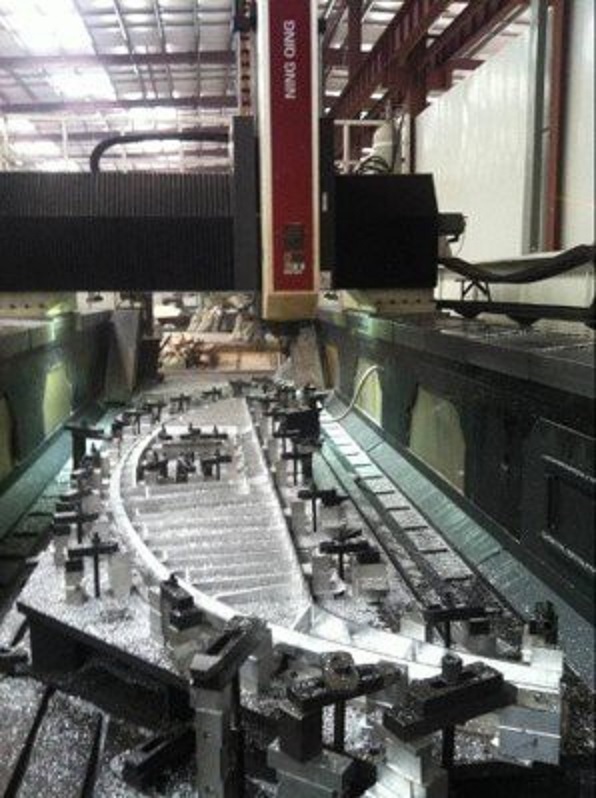

Whole_Structure_Bridge_0321_5

Applications

This machine has been used in many industries successfully, like automotive parts, automotive molds,
engineering machineries parts, ship parts, agricultural machineries parts etc.

Hot Tags: whole structure bridge type gantry machining center, suppliers, manufacturers, customized,
Engraving milling Machine, fiber laser engraver, Temperature Testing Chamber, induction
heating machine for forging, workpiece seperator, Laser Cleaning

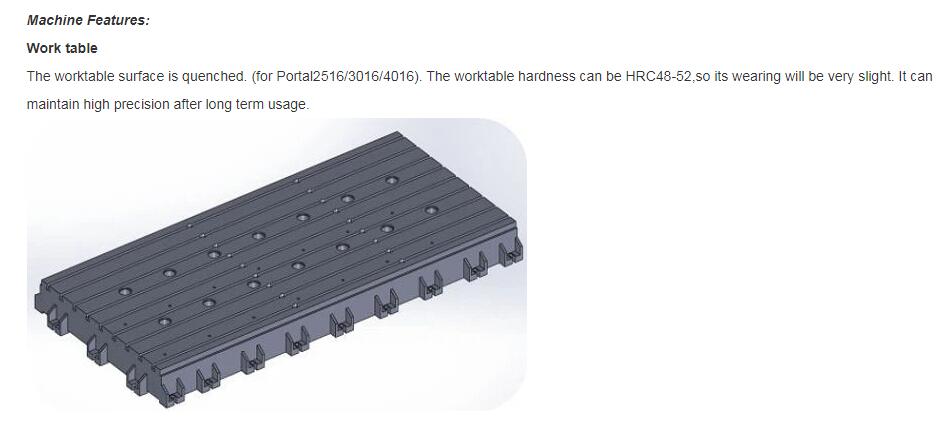

Whole_Structure_Bridge_0321_7

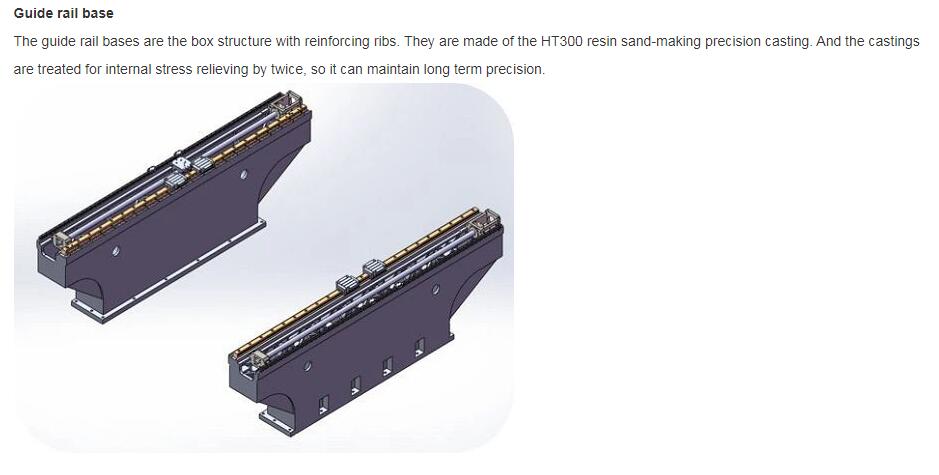

Whole_Structure_Bridge_0321_8

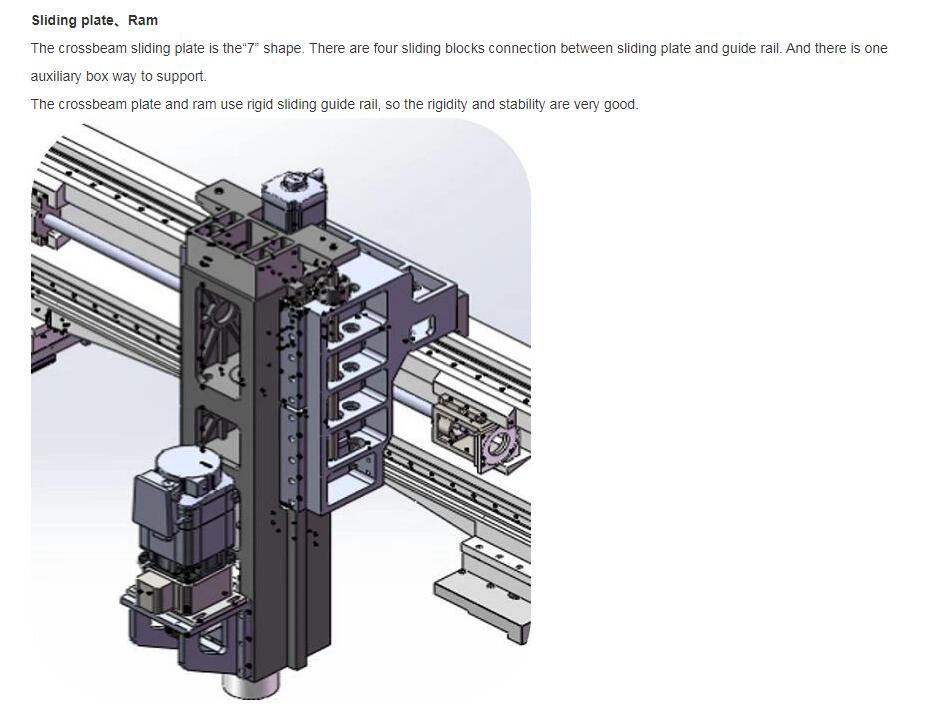

Whole_Structure_Bridge_0321_9

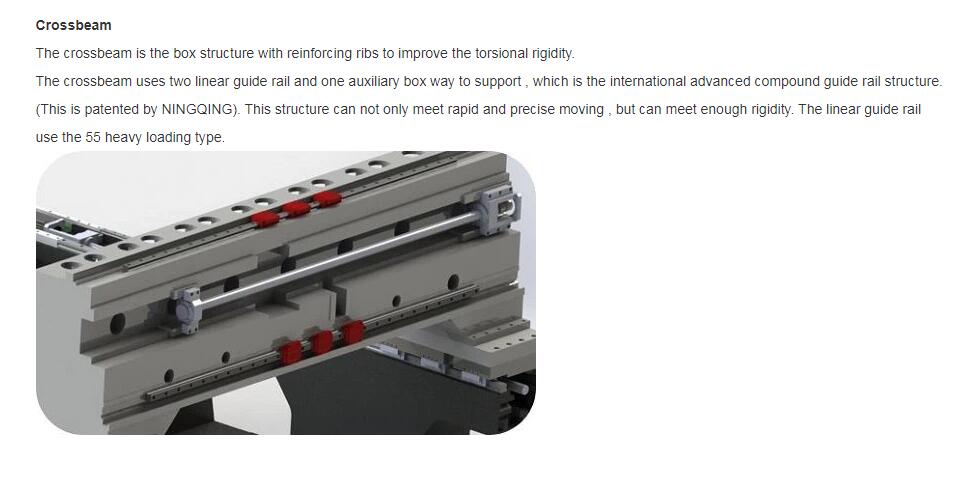

Whole_Structure_Bridge_0321_10

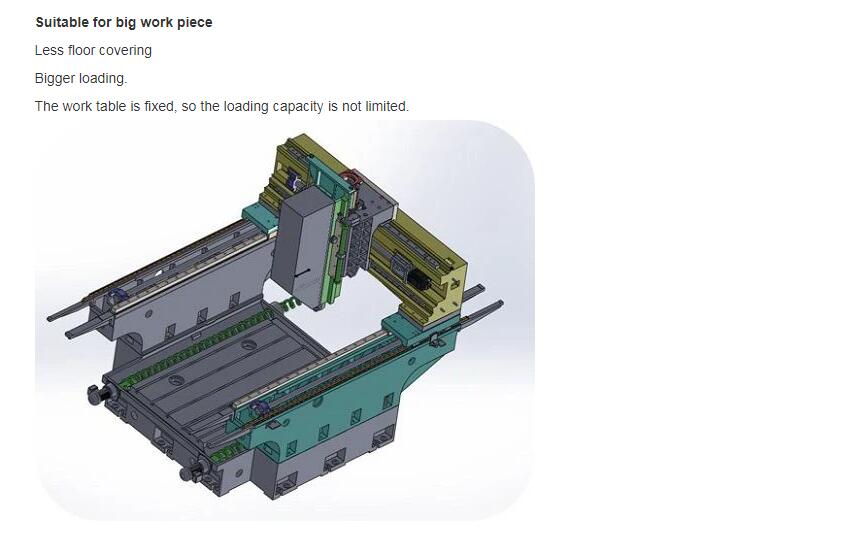

Whole_Structure_Bridge_0321_11

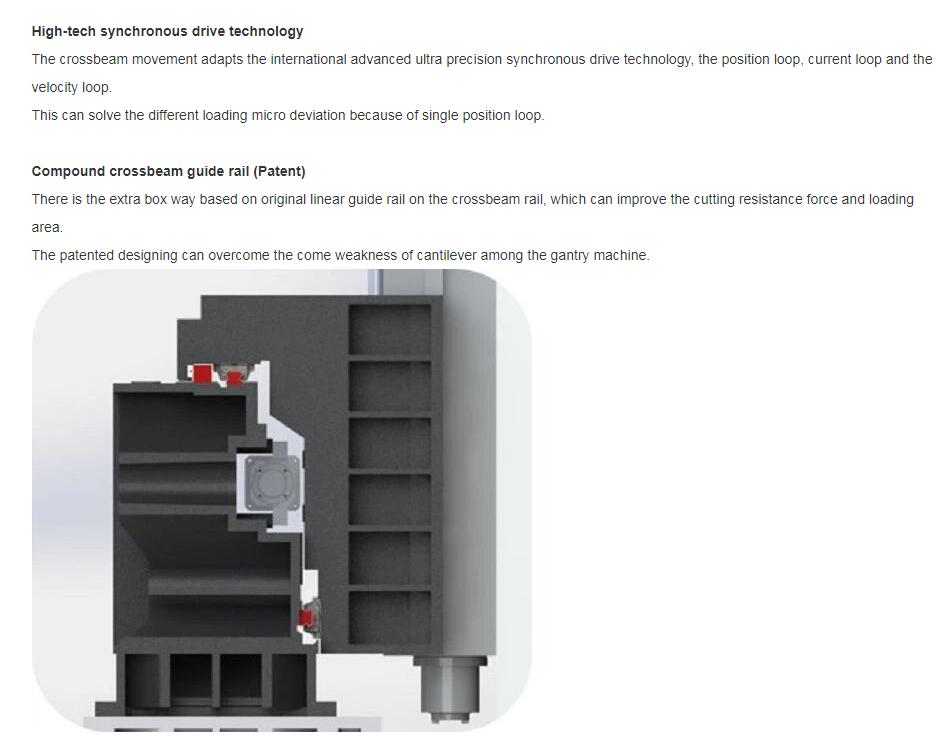

Whole_Structure_Bridge_0321_12

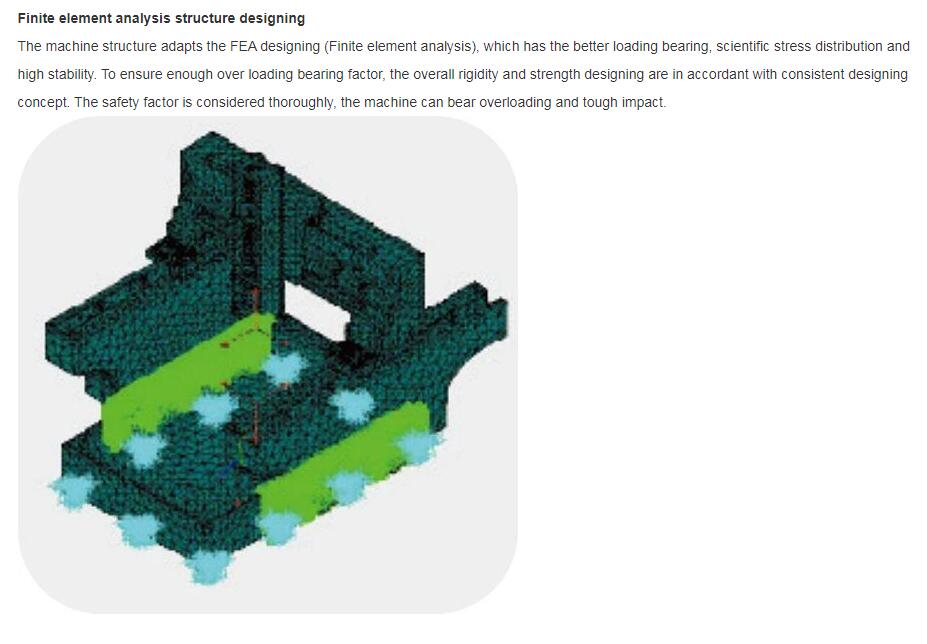

Whole_Structure_Bridge_0321_13

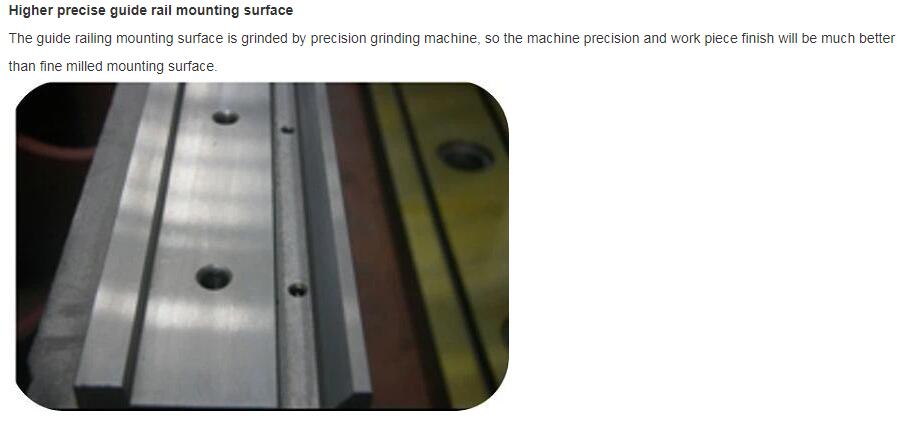

Whole_Structure_Bridge_0321_14

Standard Configuration

1. FANUC 0i MF/Siemens 828D controller

2. BT50 8000rpm spindle from Taiwan

3. THK/HIWIN/PMI guide rail

4. THK/HIWIN/PMI lead screw

5. NSK bearing

6. Control cabinet heat exchanger

7. Water gun and gas gun

8. Chip conveyor

9. LED work light

10. English machine manual

Optional Configuration

1. CTS (coolant through spindle)

2. Air conditioner of control cabinet

3. Spindle cooling

4. Grating scale

5. Tool setting gauge

6. CNC rotatory table

7. Mill head
