FAQ
1. What is the lead time?
It will take around 1.5 months to finish the machine
2. Can the machine be put into container?
It can be put into 40HQ container.
3. What is the packaging for this machine?
The machine will be packed by pallet.
4. What is the payment terms?
There will be 30% payment before production, the balance will be paid before dispatching.

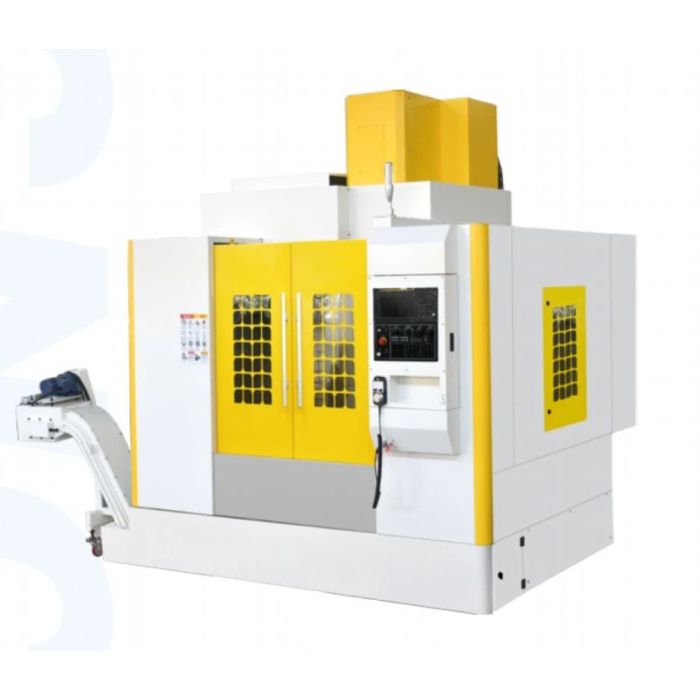

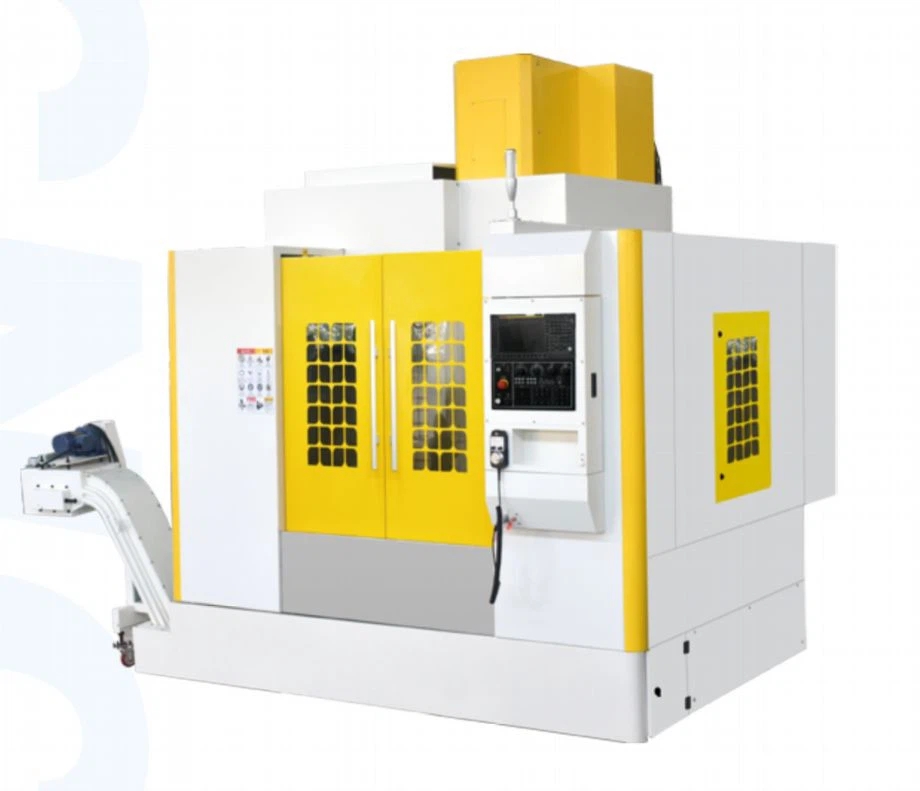

This is fixed column and travelling worktable structure. Suitable for cubic, flat, disc, shell and valve type workpiece.

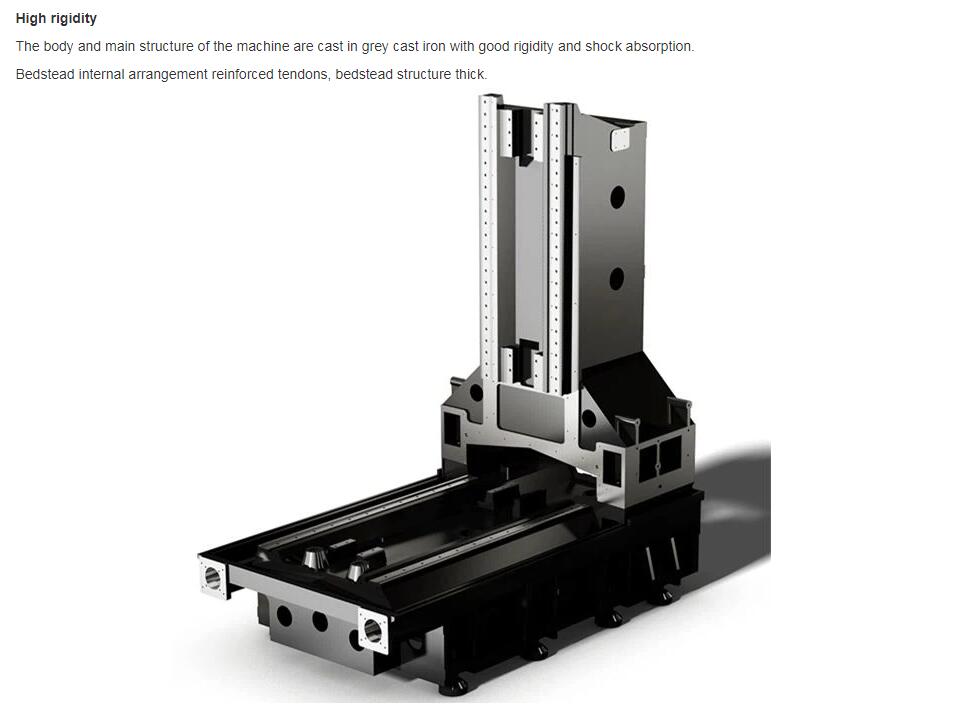

The machine is very rigid structure and designed for milling, drilling, boring, reaming and countersinking.
Equipped with CNC rotary table, 4 axes / 5 axes work piece of more complicated structure could be processed.
Standard Configuration
1. FANUC 0i MF/Siemens 828D controller

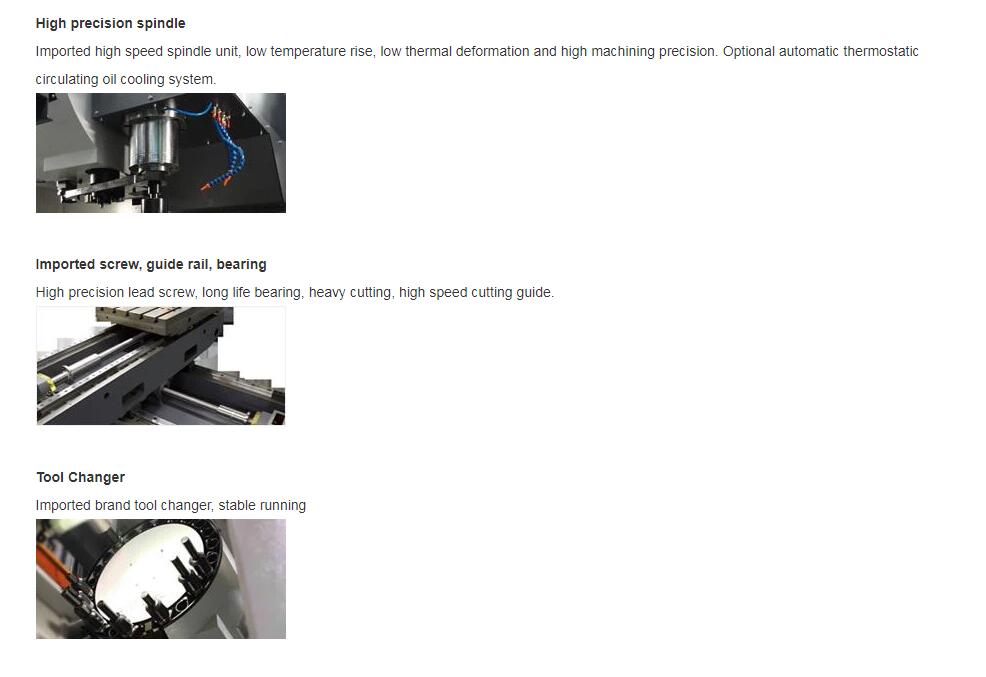

2. BT40 8000rpm spindle from Taiwan
3. P level roller linear guide rail THK/HIWIN/PMI
4. C3 level ball screw THK/HIWIN/PMI
5. NSK bearing
6. Disc type 24 tools ATC from Taiwan
7. Control cabinet heat exchanger
8. Spindle oil cooling
9. Water gun and gas gun
10. Rear chip cleaning
11. LED work light
Optional Configuration
1. CTS (coolant through spindle)
2. Air conditioner of control cabinet
3. Grating scale
4. Oil-water separator
5. 12000rpm direct spindle
6. Chain chip conveyor
7. Tool setting gauge
8. CNC rotatory table
For big order or customized order, Pls feel free to contact service@vozop.com
Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various workshop machineries,
like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working machine, pipe working machine etc.
In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.
