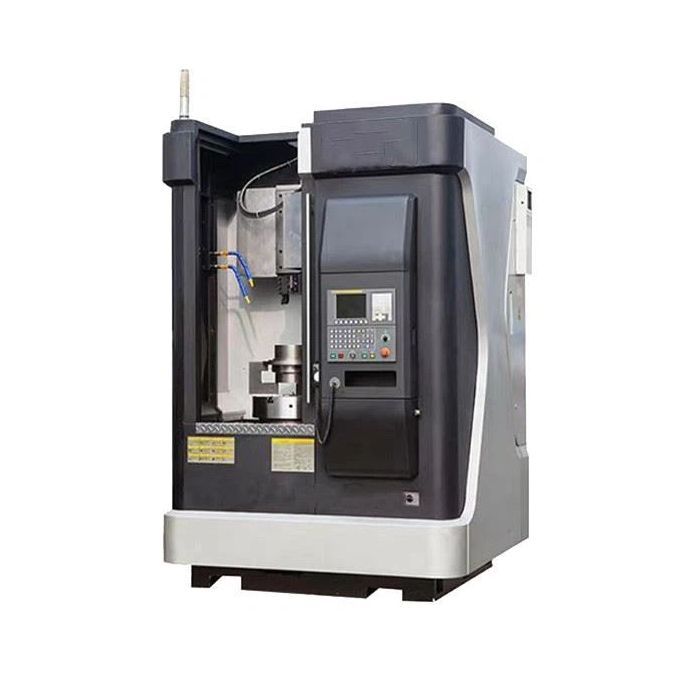

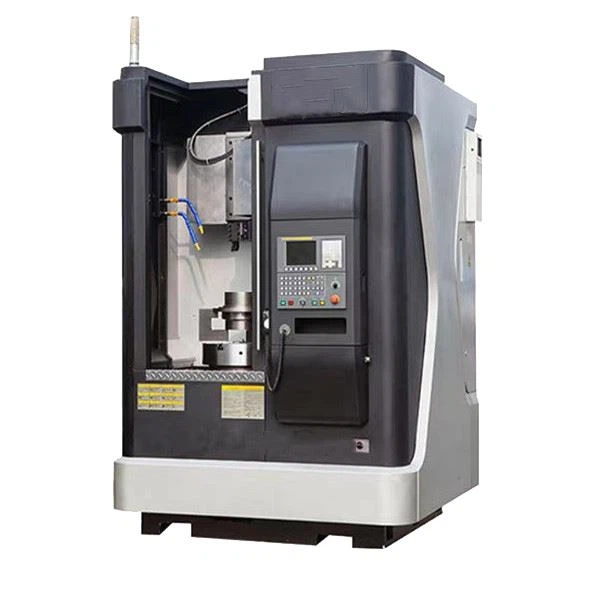

The machine tool is a kind of automatic CNC machining machine tool, used to process the inner and outer
cylindrical surface, cone surface, end face, grooving and chamfering of the parts, the machine tool is especially
suitable for the automobile wheel hub, brake hub, flywheel housing, clutch housing, pressure plate, rim,
differential reducing shell, disc and other parts of the rough and finish machining.
Overview
The machine tool is a kind of automatic CNC machining machine tool, used to process the inner and outer cylindrical
surface, cone surface, end face, grooving and chamfering of the parts, the machine tool is especially suitable for
the automobile wheel hub, brake hub, flywheel housing, clutch housing, pressure plate, rim, differential reducing shell,
disc and other parts of the rough and finish machining.
Hot Tags: vertical lathe, suppliers, manufacturers, customized, Socket Production Line, long forging
press, hydraulic tube bender, tube grinder, Metal Sheet Shearing, Saw Blade resharpening machine
Machine Feature
The machine tool adopts roller type linear slide rail.
It has high rigidity and heavy load capacity.
It greatly improves the positioning accuracy and carrying capacity of the machine tool's vertical and horizontal feed movement.
Machine tool spindle pulley and spindle CNC servo motor pulley are connected by belt, equipped with high torque servo motor,
stepless variable speed, and a wide range of variable speed.
It can meet the different requirements of spindle speed for rough machining and fine machining of parts.
Machine tool rest adopts horizontal or vertical multi-position numerical control tool rest,
the tool changing time is short, and the work efficiency is greatly improved.
The upper end of the spindle can be equipped with disk type worktable or hydraulic chuck according to customer requirements.
The lower end of the spindle is equipped with a single piston cylinder or a double piston cylinder for
controlling the compression of the workpiece and the hydraulic chuck.
For big order or customized order, Pls feel free to contact service@vozop.com
