Transverse Rolling Mill

$999.99
In stock
SKU
Transverse Rolling Mill

The listed price is not real price, For correct product's price or customized product, Pls feel free to
contact service@vozop.com or Pls contact WhatsApp +86 13062213712 Adam Wang

Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various
workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working
machine, pipe working machine etc. In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

Cross wedge rolling refers to the continuous local deformation of the cylindrical billet between
the dies of two rolls, which results in the shape of the workpiece and the bottom of the die.

Overview

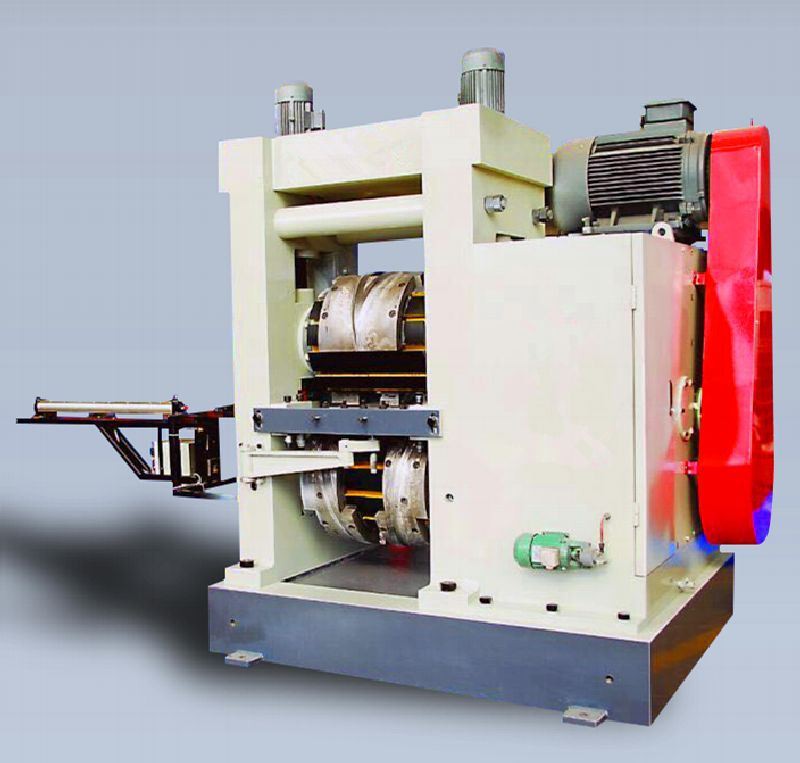

Transverse_RollingMill_0322_1

Cross wedge rolling refers to the continuous local deformation of the cylindrical billet between the dies of two rolls,
which results in the shape of the workpiece and the bottom of the die.

Partial grooves have the same shape.

The type module is mounted on a roller and rotates in the same direction under the drive of the roller to drive the round billet

Rotating in the opposite direction, the billet compresses and deforms in the radial direction of the wedge.

The shape of the rolled workpiece and the bottom groove of the die

Consistent.

Transverse_RollingMill_0322_2

Transverse_RollingMill_0322_3

Transverse_RollingMill_0322_4

Hot Tags: transverse rolling mill, suppliers, manufacturers, customized, amada bending, 3d laser engraving

machine, cnc profile grinder, round grinding machine, H type Hydraulic Press, edm wire cut machine

Transverse_RollingMill_0322_5

Machine Feature

◆ The working environment has been improved:

Because there is no impact and little noise in the process of cross wedge rolling,
its working environment has been greatly improved.

◆ High production efficiency:

It is usually 2-5 times more than other processes.

One or two pieces can be designed according to the different work pieces.

◆ Good product quality:

The metal fiber streamline of cross wedge rolled piece is continuously distributed along the
product shape, and the grain size is further refined, so its synthesis machine

Mechanical performance is better, the product accuracy is also high.

◆ High material utilization rate:

Because the shape of the rolled workpiece is consistent with the shape of the groove at the bottom of the die,
the size of the workpiece can be well controlled to improve the material utilization rate.

The general material utilization ratio is relative to this

He improved traditional techniques by 10-30%.

◆ High degree of automation:

The feeding, forming, surface finishing and finally rolling forming of the workpiece are
all completed by the machine automatically, without human operation.

◆ Improve the life of forging die:

The general accuracy of the cross wedge mill can be controlled in about ±1mm.

And the consistency of the workpiece is high.

The uniform force on the regular forging die improves the service life of the forging die

Transverse_RollingMill_0322_6
