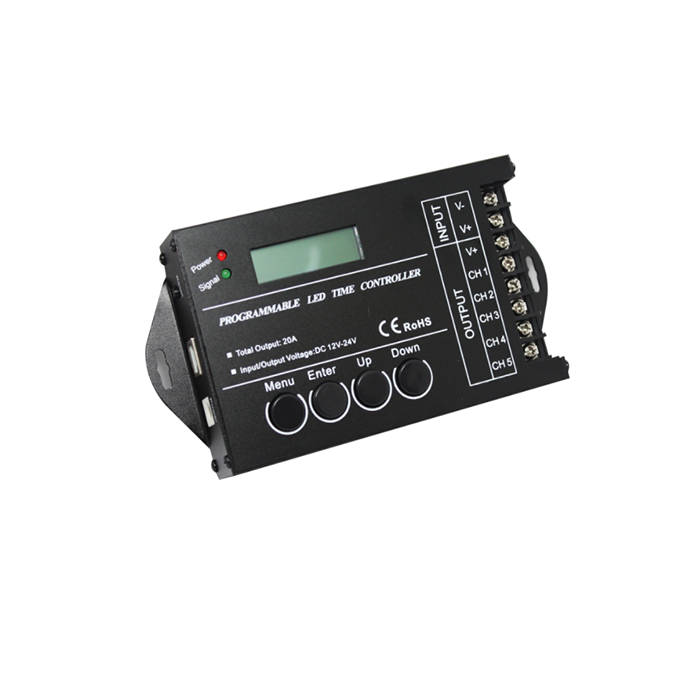

main product photo

Skip to the beginning of the images gallery

TC420 Leynew Led Controller Programmable Time Control Decoder

Programmable Time Led Controller TC420

There is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule

mode they want through the upper PC. Then through the USB port to download required schedule to the controller.The upper PC in addition to the function

of editing schedule mode ,it also can be setup time for the controller because of synchronous clock function of upper host .If user want to see the schedule

mode effect after editing , they can use fast sowing function of upper . Because there is no delete function of the upper host ,so the mode name display space

will come into blank as long as you execute delete .This controller can control load of led changing effect no more than five channels .And it can be used in the

occasion of the plant lights, light box advertising, the stage, home decoration, etc.

Technical Parameters

Working temperature :-20-60℃

Supply voltage : DC12-24V

static power：< 1W

net weight：210g

gross Weight：350g

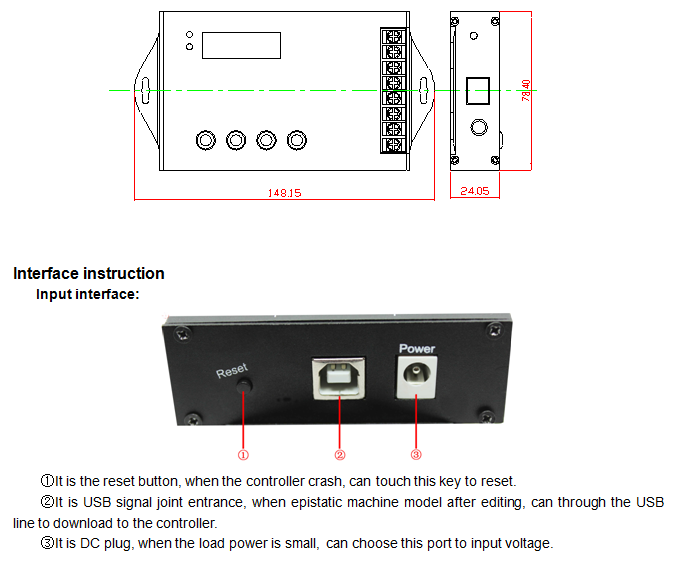

External dimension：150MM*78.5MM*26MM

Packing dimension：185MM*180MM*54.8MM

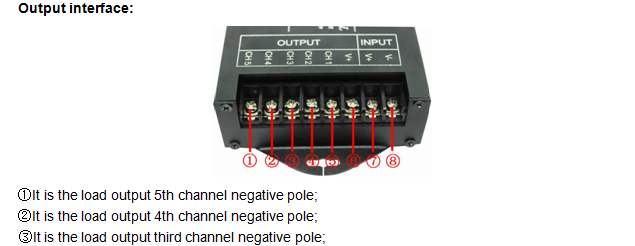

Output: 5 channels

Max load current：20A

Output: Five CMOS drain- open output

Connecting Mode: Common anode

the controller output frequency of 600 hz

Package Included:

1 Piece of TC420 Leynew Led Controller Programmable Time Control Decoder

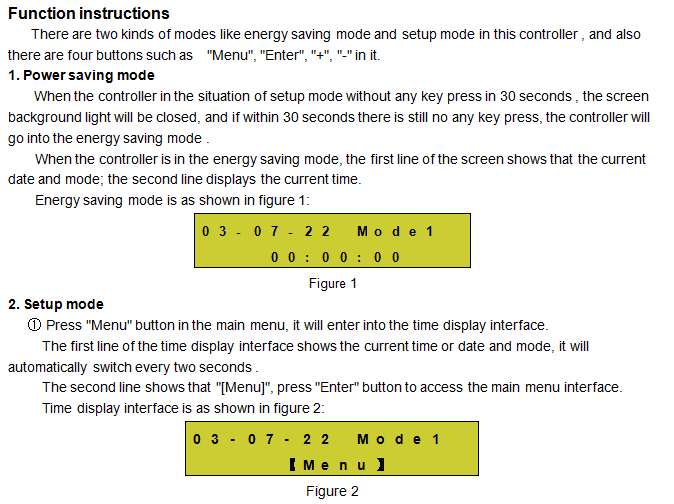

TC420_Programmable_Time_1

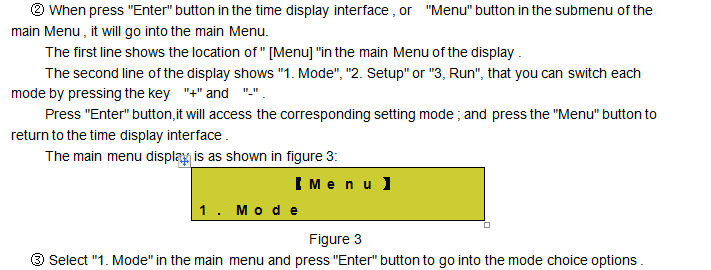

TC420_Programmable_Time_2

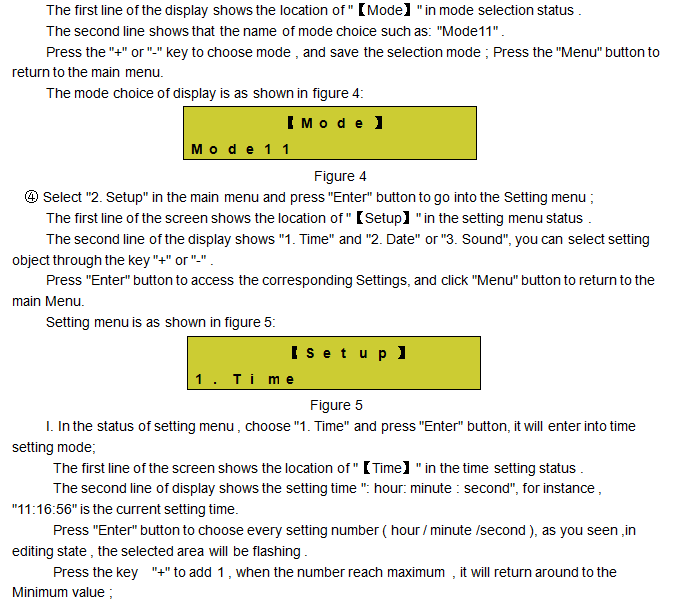

TC420_Programmable_Time_3

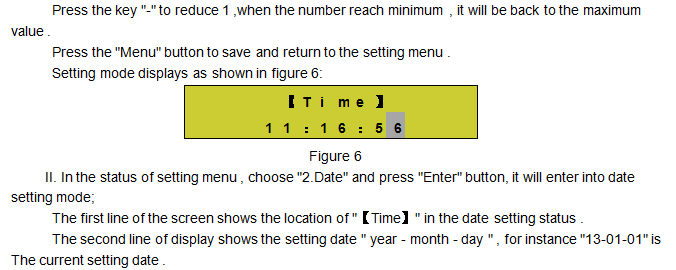

TC420_Programmable_Time_4

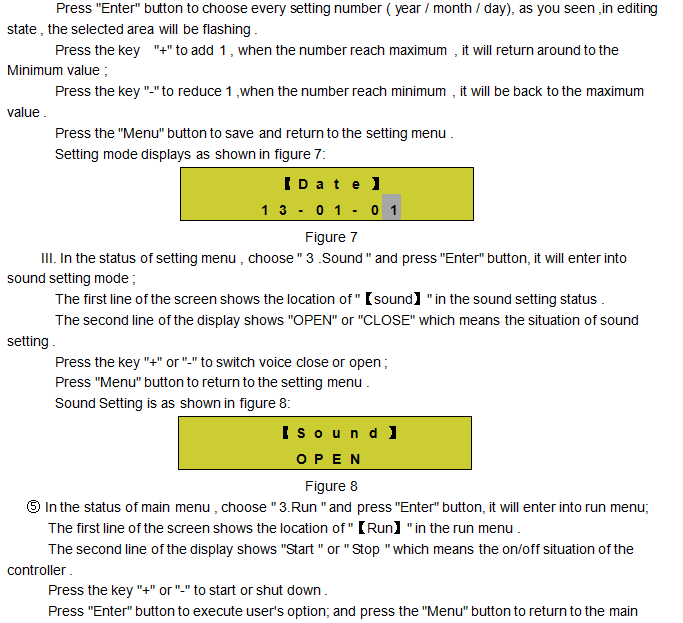

TC420_Programmable_Time_5

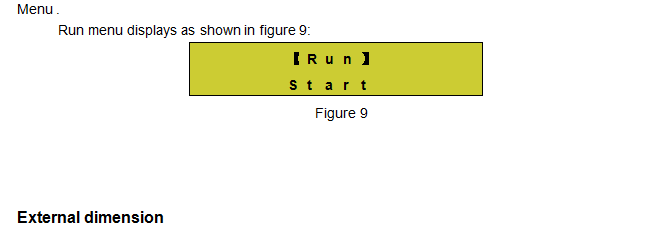

TC420_Programmable_Time_6

TC420_Programmable_Time_7

TC420_Programmable_Time_8

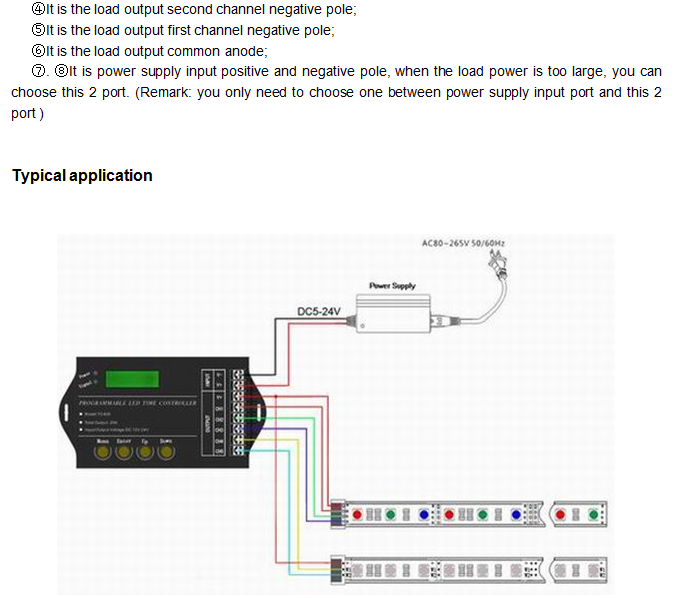

TC420_Programmable_Time_9

CE and RoHS approved
