Parameter Table:
LED Type: SPI IC chip LED strip+PWM LED strip.
Input Voltage: DC5V-DC24V Controller voltage depends on LED strip.
Ways of Working: Match with RF remote ,Bluetooth APP BalanX.
Support IC QTY: Single color ,CCT , RGB: 600 IC max . RGBW :450 IC max . RGBCCT : 300 IC max.
On/Off Animations: Set on/off animations and the default power-on state..
Modify: Device name, color order correction.
Support IC Chip SPI: WS2811,WS2812,WS2813,WS2814,WS2815,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,TM1829,TM1914A,GW6205,GS8206,GS8208 etc.
Support PWM Chip No IC: FCOB ,SMD5050,3014,3528,5730,5630 etc 2pin(V+ V-) 3pin CCT(V+ CW WW) 4pin RGB(V+ R G B) 5pin RGBW(V+ R G B W) 6pin RGBCCT(V+ R G B CW WW).
Waterproof Level: IP30 Non-waterproof.
Operation Temperature: -4℉~140℉ ( -20℃~+60℃ ).
Difference between SPI (with IC) strips and PWM (without IC) strips.
Features of SPI and PWM:
IC : SPI--- With IC; PWM---Without IC.
PIN : SPI---3PIN/4PIN (with DATA wire) ; PWM---2PIN/3PIN/4PIN/5PIN/6PIN ( Similar to +,R,G,B,W ).
Controller : SPI---ESP8622,Rasp Pi,Arduino,SP611E,SP105E,SP107E,SP108 etc. ; PWM---WIFI WB5, Zigbee LM052, Bluetooth LM053.

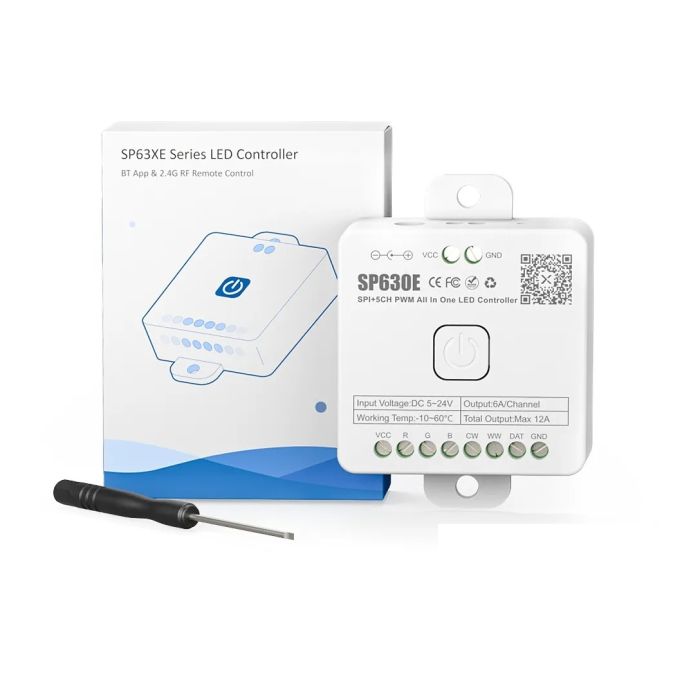

SP630E is SPI+5CH PWM all in one led controller, it can compatible with multiple types of LEDs.
Such as 1/2/3/4/5CH W/CCT/RGB/RGBW/RGBCCT PWM/Addressble LEDs and Addressble+PWM combined LEDs.
Features:
1. High performance, low power consumption Bluetooth microprocessor.
2. Compatible with 12 kinds of type of LEDs.
3. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel.
4. The remote control and 86-type control panel can be set up for zone-control
(can be divided into 4 zones), or unified control (ALL).
5. Support to set kinds of on/off animations and the default power-on state.
6. Support for modifying device name, color order correction and setting timers.
7. Support 3 kinds of music capture modes: cell phone microphone, player streaming, on-board microphone.
8. 5 major control pages in the App: dynamic, static, music, custom and setting. select different types of LED correspond to different App page content.
APP:
1. SP630E supports App control for iOS and Android devices.
2. Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
3. You can search “BanlanX”in App Store or Google Play to find the APP, or scan the QR code to download and install.
✨TAKE A LOOK!:SP630E All In One LED Controller 5CH PWM SPI Pixels LED Light Strip WS2812B WS2811 SK6812 FCOB 5050 RGB RGBW CCT Music BT 5V-24V
PRODUCT PROPERTY:✨ 1: Visit the btf-lighting brand shop to shop the entire btf-lighting assortment by clicking on
the btf-lighting logo above.The item type of our product is rgb controler.The certification of our product is ul.The power source of our product is dc.Our product is from cn(origin).
✨ 2: The voltage is 5-24v.
REASONS TO BUY:✨ Seller recommended: any questions, please feel free to contact us, we will provide the best service for you!
✨ Widely compatible: this rgb controller is compatible with most pwm led lights. it can be used to control various devices such as computers, laptops, mobile phones, etc.
RELATED INFO:✨ Controller led strip spi: the rgb led strip with a spi function is easy to use and maintain, no need to worry about running out of power.
