Feature
AC phase-cut mosfet dimmer with DMX512 function, digital display, two channel output.

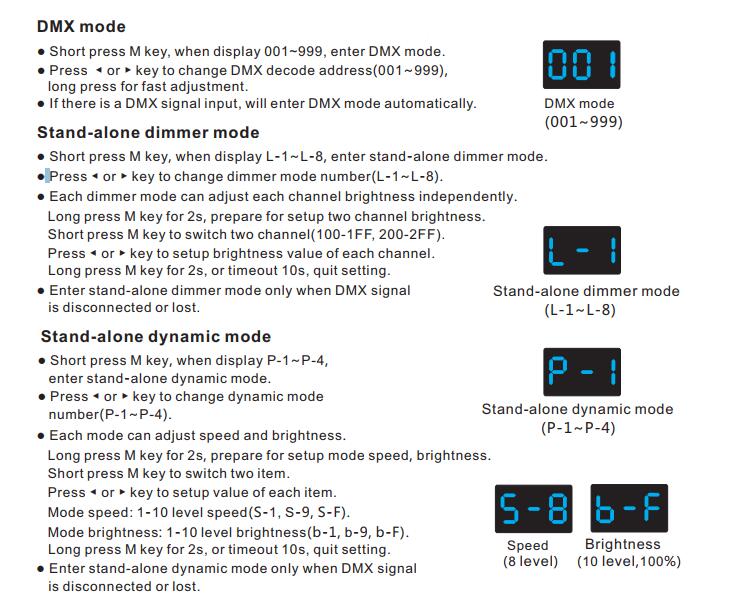

DMX decode mode / Stand-alone 2 channel dimmer mode / Stand-alone dynamic mode.
Standard DMX512 compliant interface, DMX address display, set DMX address freely.
RDM bi-directional communication function.
Under stand-alone dimmer mode, each channel adjust brightness independently, and save up to 8 groups brightness.

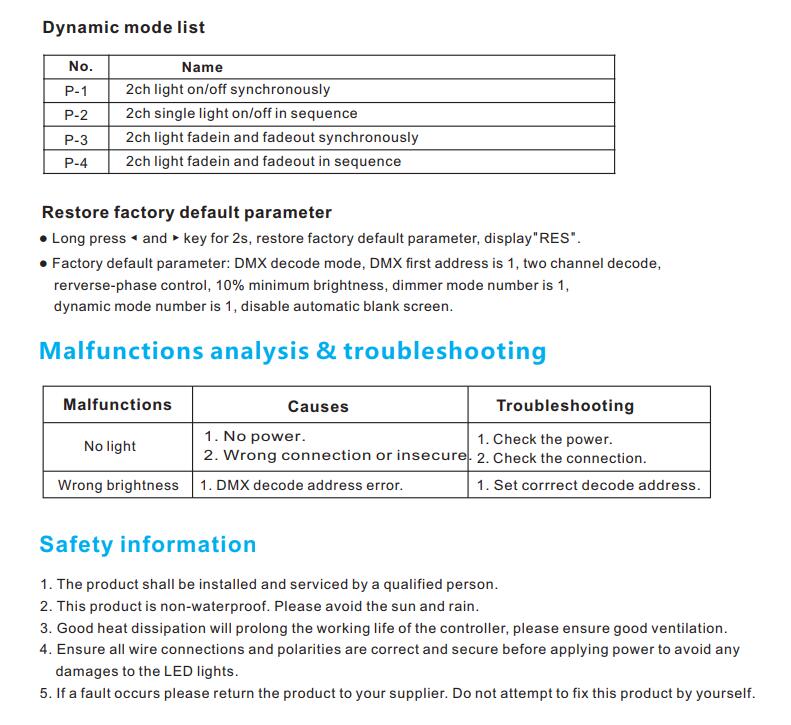

Under stand-alone dynamic mode, have 4 mode.
1/2 DMX channel decode optional.

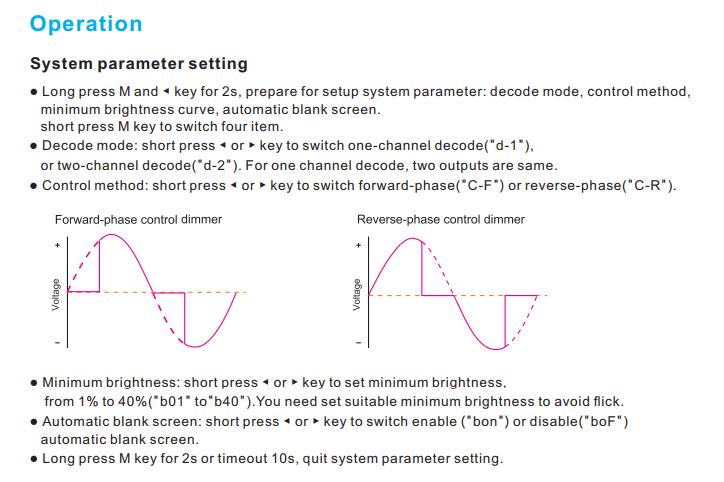

Reverse-phase dimming or forward-phase dimming optional.
Minimum brightness set from 1% to 40%.
To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
For S1-DR, din rail or screw mounted optiona

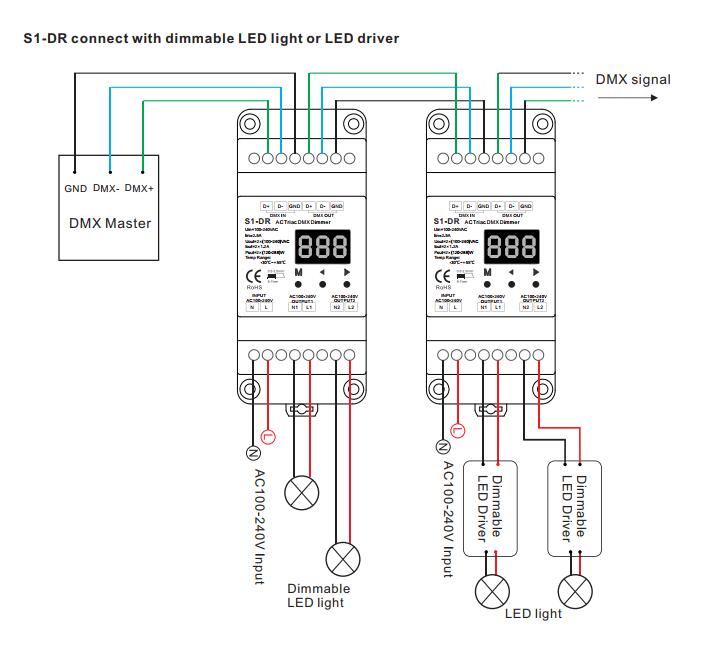

Skydance S1-DR AC100v-240v DIN rail 2 Channel AC Triac DMX Dimmer DMX512 LED Controller is designed
with 100-240VAC input and 100-240VAC output, safe and reliable full isolation design to dim and switch single
color LED lamps, traditional incandescent and halogen lights.The DMX512 dimmer is designed with standard
DMX512 compliant control interface with digital numeric display to set and show DMX address freely, can be
compatible with a variety of DMX512 masters. The AC dimmer is both triac dimmable and mosfet dimmable
and comes with 2 channel output.
Package Included:
1 Piece of Skydance S1-DR LED Controller AC100v-240v DIN rail 2 Channel Triac DMX Dimmer DMX512
1 Piece of User's Manual
CE and RoHS approved
