Feature
1.12-24V constant voltage power repeater.
2.3 channel, 10A per channel.
3.To receive PWM signal control.

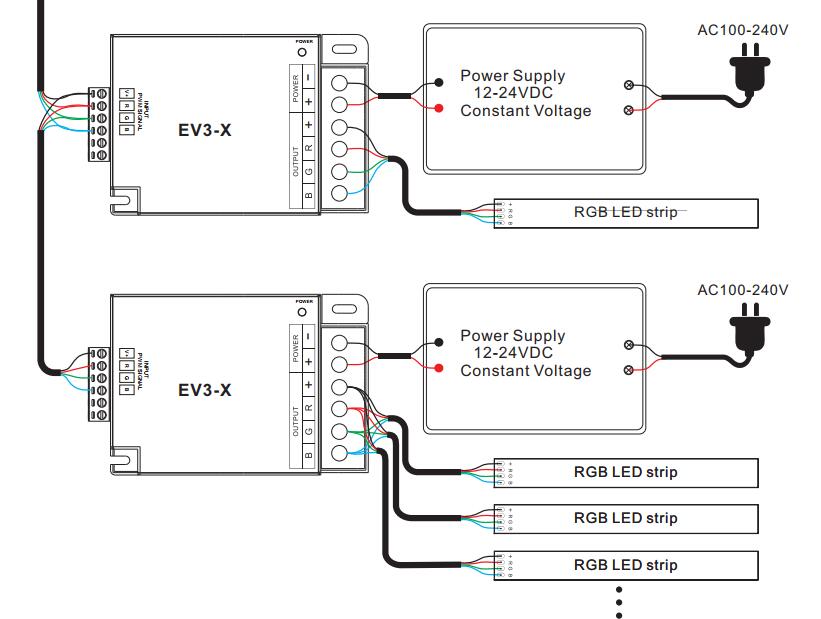

4.Power repeater in series or in parallel to expand output unlimitedly.
Technical parameter
Input voltage: 12-24VDC
Input signal: 3CH, PWM constant voltage
Output current: 3CH, 10A/CH
Output power: 3 x (120-240)W
Working temperature: -20℃~55℃

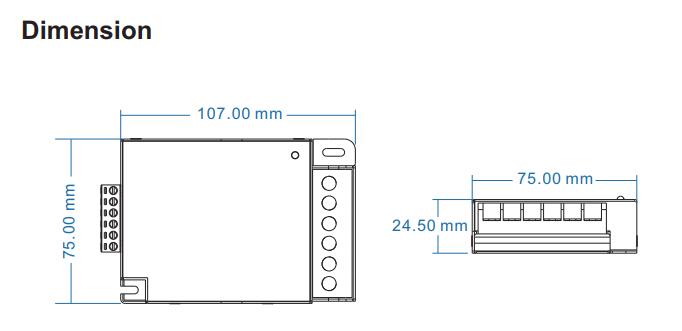

Size: L107×W75×H24.5mm
Package Included:
1 Piece of Skydance EV3-X LED Controller DC 12-24V Power Repeater
1 Piece of User's Manual
CE and RoHS approved
