FAQ
Q: How about the machine delivery time?
A: Normally it will be around 3 months
Q: Can you offer the after-sales service
A: We are responsible for the after-sales service. The warranty will be one year after machine reaching.
Q: How can we ship the machine?
A: This is a big machine which can not be put into the container , it will be shipped by FR container.

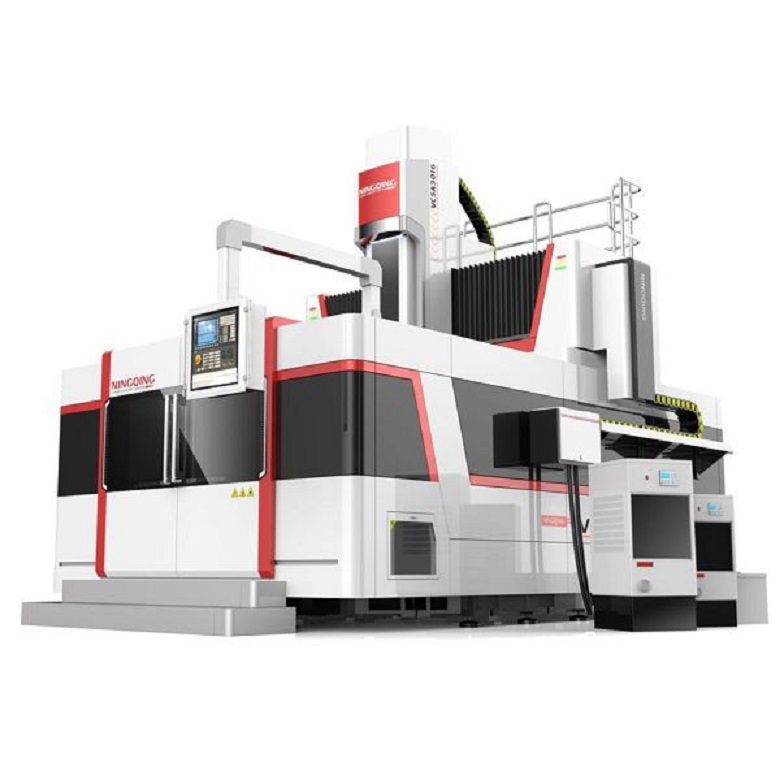

The Portal4025 is a big size bridge type gantry machining center. The worktable is fixed, and crossbeam
is moving. And it is also very rigid machine which can be used for heavy cutting also.
Overview

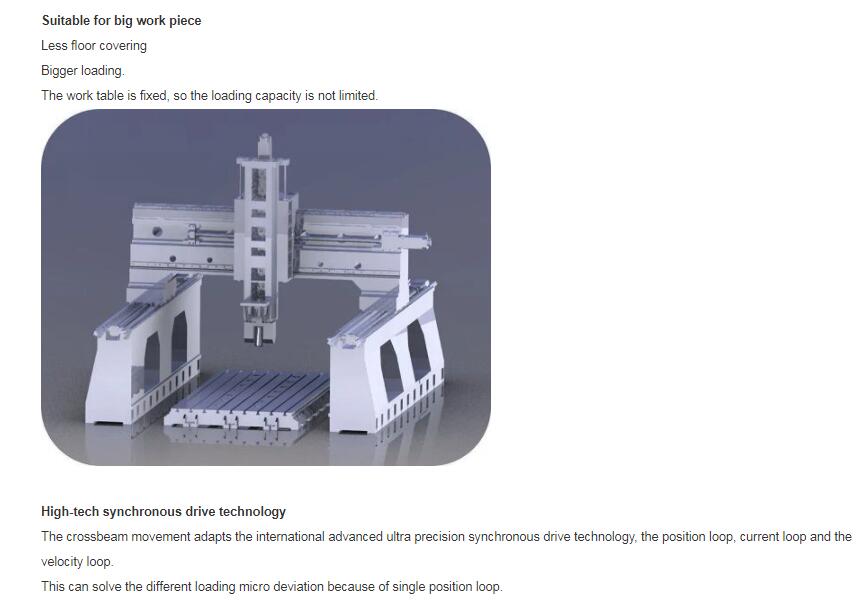

The Portal4025 is a big size bridge type gantry machining center. The worktable is fixed, and crossbeam is moving.
And it is also very rigid machine which can be used for heavy cutting also. Due to his structure,
it can load very heavy workpiece but less floor covering.
Applications
This the big size gantry machine which can used for many industries: railway, Aeroplan, Auto molds, engineering parts etc.
Hot Tags: seperated structure bridge type gantry machining center, suppliers, manufacturers, customized,
CNC Cheek PolishingMachine, workpiece seperator, gantry drilling, tapping center cnc, C Frame Hydraulic Press, RotorMachine
Standard Configuration
1. FANUC 0i MF/Siemens 828D controller
2. BT50 8000rpm spindle from Taiwan
3. P level roller linear guide rail THK/HIWIN/PMI
4. C3 level ball screw THK/HIWIN/PMI
5. NSK bearing
6. Control cabinet heat exchanger
7. Water gun and gas gun
8. Chip conveyor
9. LED work light
Optional Configuration
1. CTS (coolant through spindle)
2. Air conditioner of control cabinet
3. Spindle cooling
4. Grating scale
5. Tool setting gauge
6. CNC rotatory table
7. Mill head
For big order or customized order, Pls feel free to contact service@vozop.com
