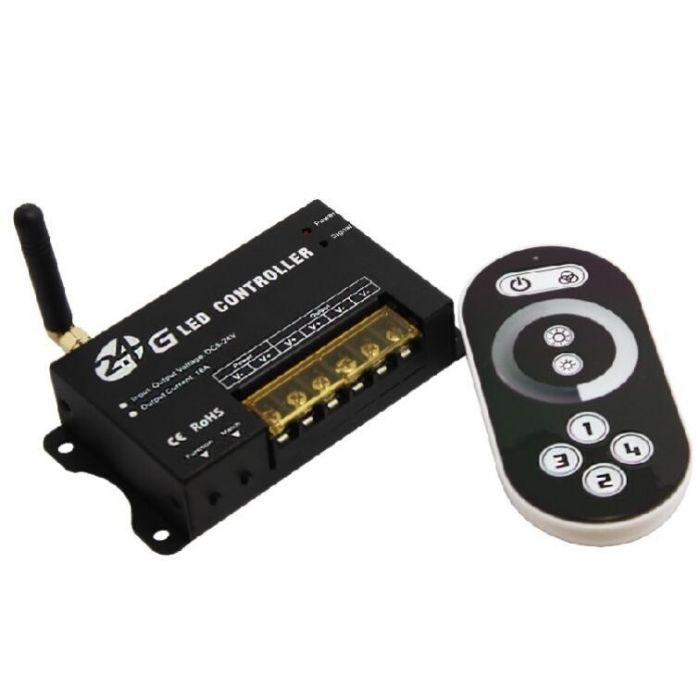

Summarization
2.4G controller is newly introduced wireless high-power LED controller of our company. It equips with touch remote control,
touch remote control adopts high precision capacitance touch control technology, you can select the color you need by one
button. It is convenient and easy. Each controller has a globally unique address code, in order to prevent confusion caused
by controlling repeated address code. Each controller can be equipped with four remote controls, can achieve multiple
controllers synchronization control. It is used for controlling a variety of lamp whose source of light is LED. For instance,
point source of light, flexible light strip, wall washer lamp, glass wall light etc. It has many advantages such as convenient
to connect, easy to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual
changing, stroboflash and other effects of change. It can achieve single control and group control, easy for user to use.
Technical Parameters
1 Controller
working temperature: -20-60℃
supply voltage: DC5V-24V
output: 1 channels
connection mode: common anode
external dimension: L120ΧW62ΧH27mm
packing size: L185ΧW145ΧH55 mm
net weight: 220g
gross weight: 314g
static power consumption: <1W
output current: <16A
output power: 5V:<80W,12V:<192W,24V:<384W
controller with short circuit protection
the controller output frequency: 325HZ
2 Touch Remote Control
working temperature: -20-60℃
power supply mode: AAA * 3
supply voltage: 1.5V * 3
transmission frequency: 2.4Ghz
standby power consumption: 0.015mW
standby current: 60uA
working current: 200uA
emission current: 10mA
remote distance: about 30m
standby time: 6 months
remote control weight: 94g
Package Content:
1 Piece of LED Controller
1 Piece of User's manual
CE and RoHS approved
