Radial Rolling Mill

$999.99

In stock

SKU

Radial Rolling Mill

The listed price is not real price, For correct product's price or customized product, Pls feel free to
contact service@vozop.com or Pls contact WhatsApp +86 13062213712 Adam Wang

Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various
workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working
machine, pipe working machine etc. In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

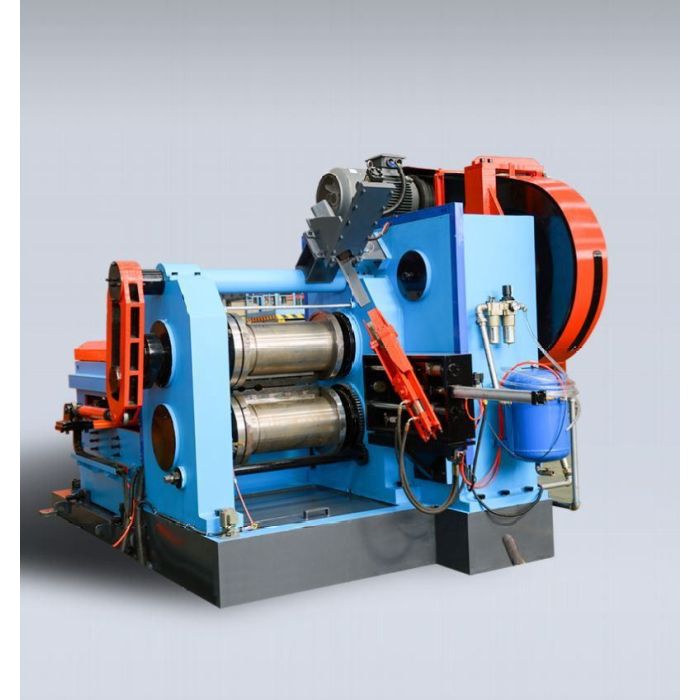

Roller forging machine is a kind of plastic change of billet by means of a pair of fan-shaped dies rotating in opposite direction.

Overview

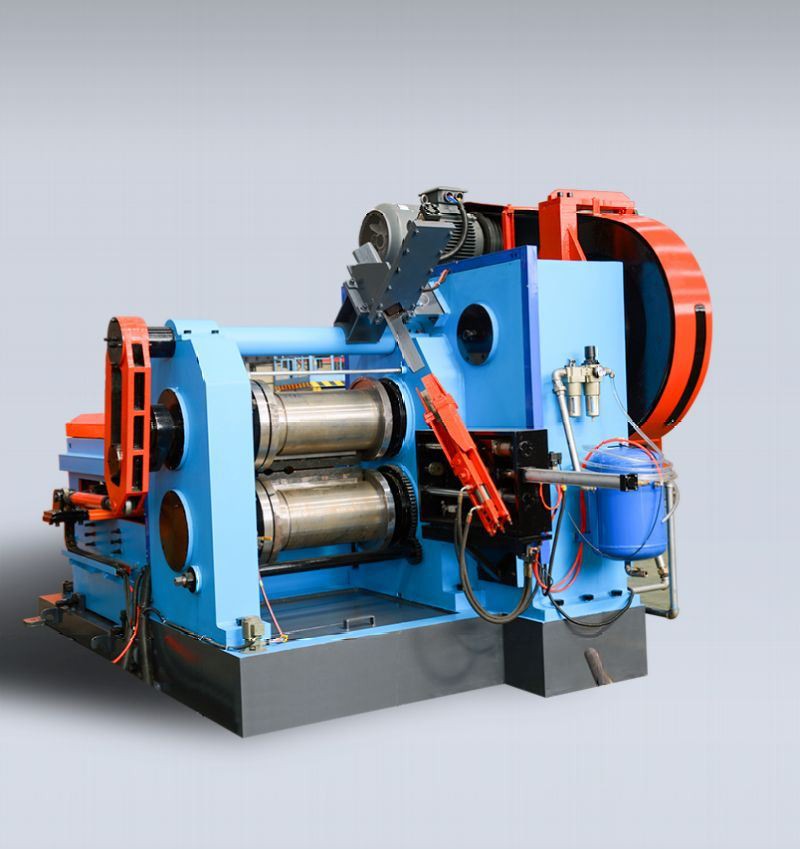

Radial_Rolling_Mill_0322_1

Roller forging machine is a kind of plastic change of billet by means of a pair of fan-shaped dies rotating in opposite direction.

In order to obtain the forging technology of the required forgings or billets. During the deformation process of roll forging,

After the blank is compressed by the roller forging die in the height direction, in addition to a small part of the metal flows laterally,

Most of the metal flows along the length of the billet.

Therefore, the essence of roll forging deformation is billet

The extended deformation process of the material under pressure is applicable to the process of
reducing the cross section of the billet, such as the shaft

Class parts of the drawing, the slab of the grinding.

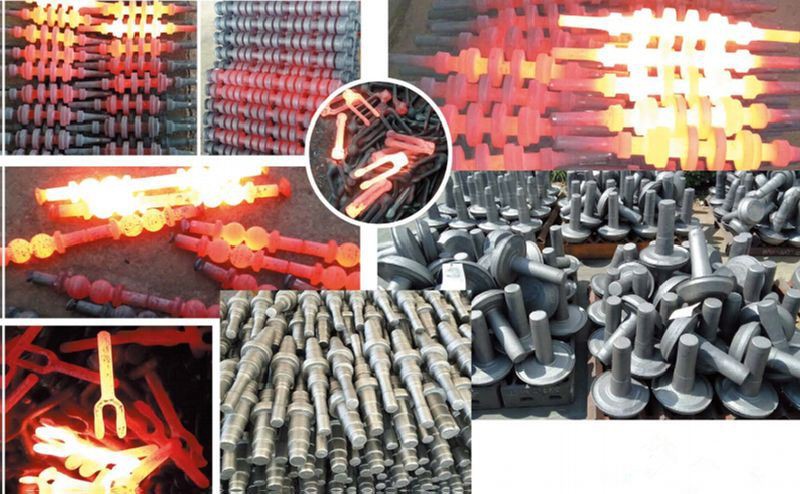

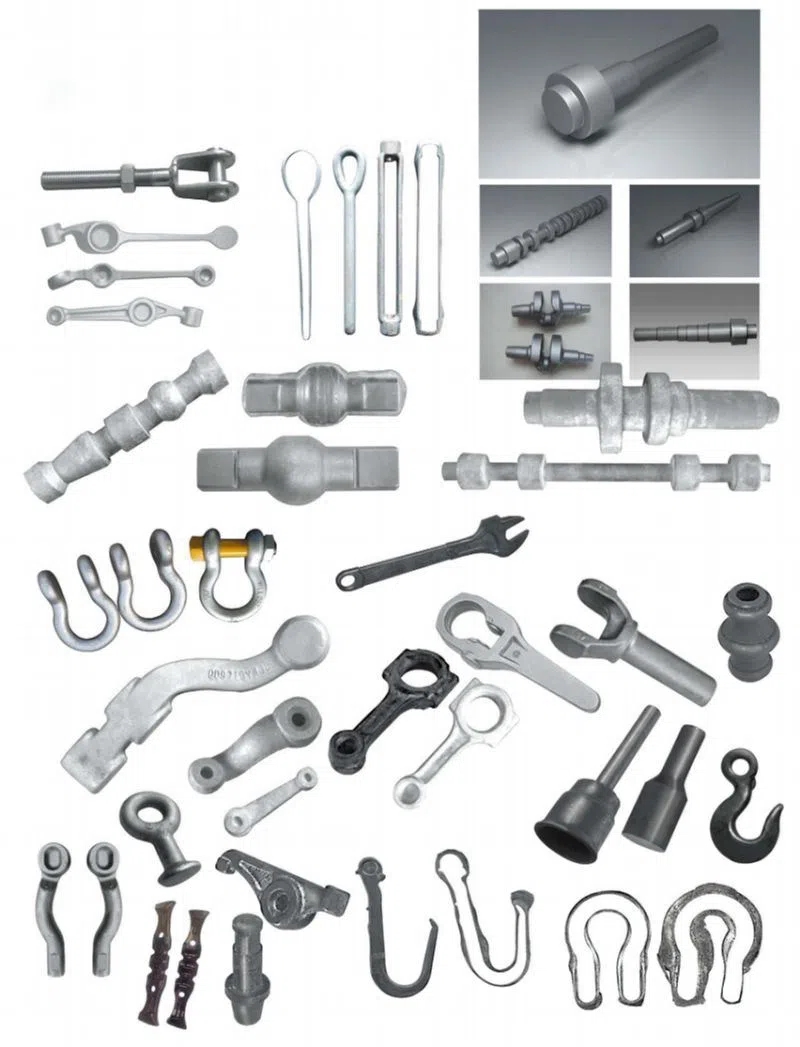

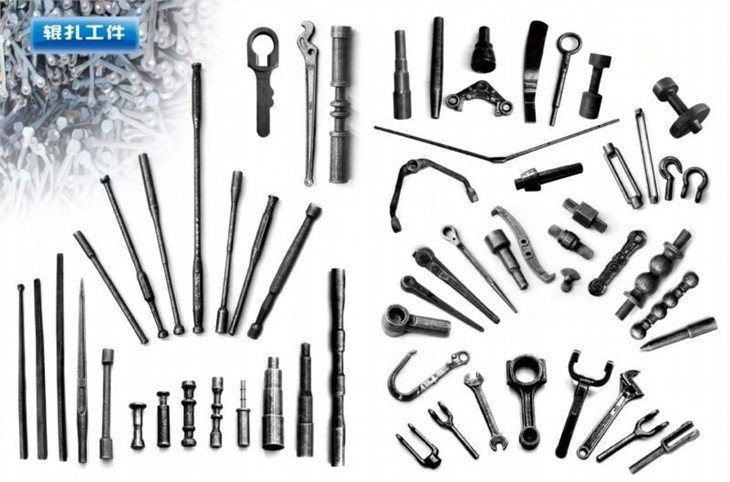

In industrial applications, roll forging can be used as die forging

The pre-blanks process provides blanks for long shaft forgings;

Also available on the roll forging machine

Realize the main forging forming process or direct roll forging.

Radial_Rolling_Mill_0322_2

Radial_Rolling_Mill_0322_3

Radial_Rolling_Mill_0322_4

Radial_Rolling_Mill_0322_5

Machine Feature

Roller forging technology has the characteristics of both forging and rolling, with high precision,
small surface roughness and good quality forgings.

Because the metal fiber tissue is distributed according to the outline of the forging during roll forging,

Not cut off, uniform structure, good mechanical properties, precision roll forging without processing,
to avoid the flow line cut or exposure of the disadvantage;

Roll forging continuous rotation, high production efficiency, set

The preparation structure is simple, the requirements for workshop and foundation are low, the die service
life is long, the static pressure process during roll forging, the relative sliding between the metal and the die is less;

Required equipment tonnage is small because of roll forging

The process is a gradual and continuous deformation process. At each moment of deformation,
the mold is only in contact with a part of the blank, so only the equipment with small tonnage is needed.

The process is simple, no

Shock, vibration, good working conditions, easy to achieve automation

Radial_Rolling_Mill_0322_6
