MR01-LS LR1 MR02-LSA MR02-LD Ltech Decoder Microwave Motion Sensor Driver Dimmer Control Led Controller

$22.50
In stock
SKU
Microwave Motion Sensor Ltech LED Controller
  • Buy 15 for $20.48 each and save 9%

For more LTECH 0/1-10V, pls check here: https://www.vozop.com/ltech-controller/ltech-led-controller-microwave-motion-sensors.html

If you need COB Led Strip, pls check here: https://www.vozop.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozop.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozop.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozop.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vozop.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozop.com

MR01-LS LR1 MR02-LSA MR02-LD Ltech Decoder Microwave Motion Sensor Driver Dimmer Control Led Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

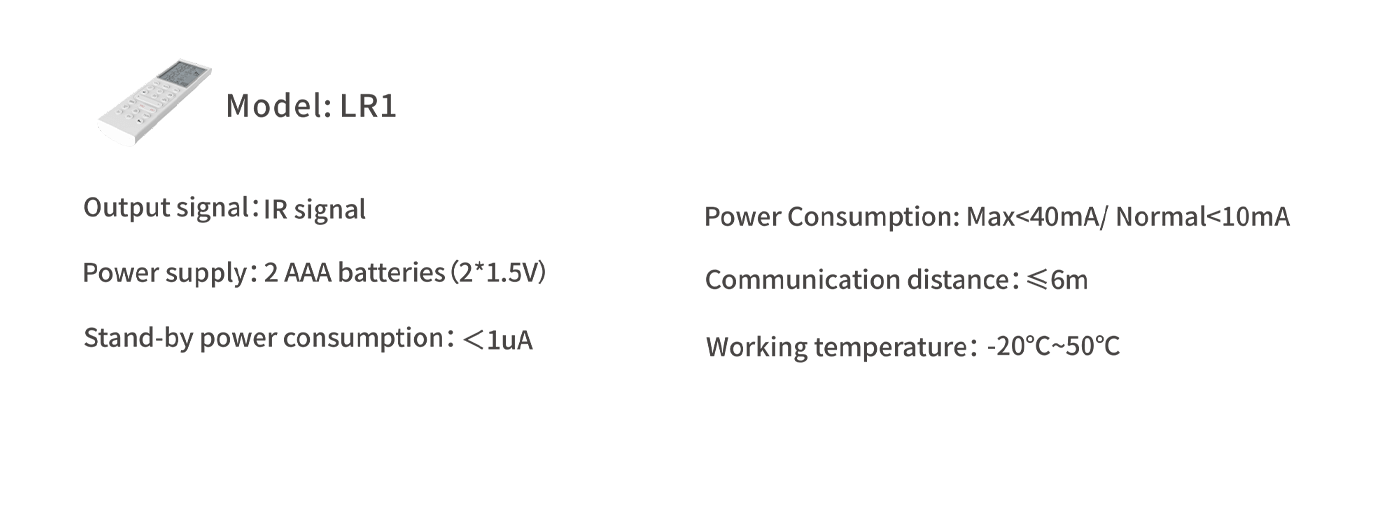

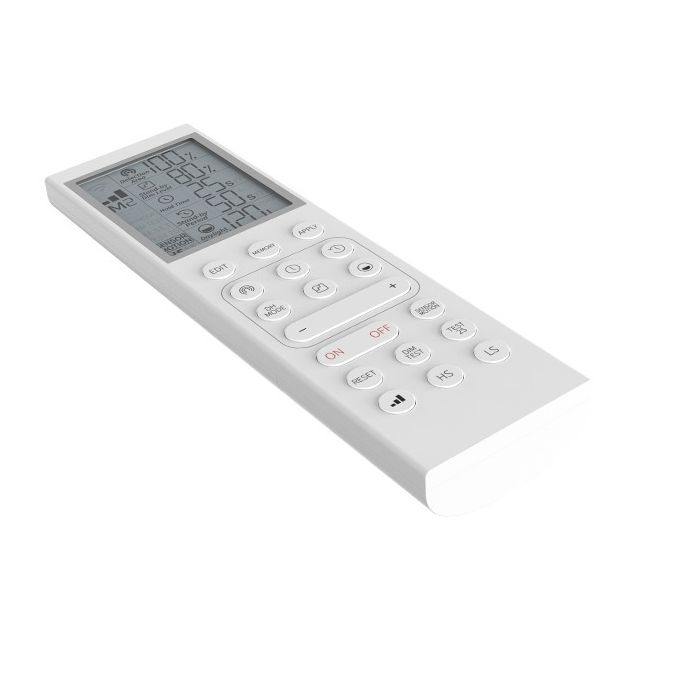

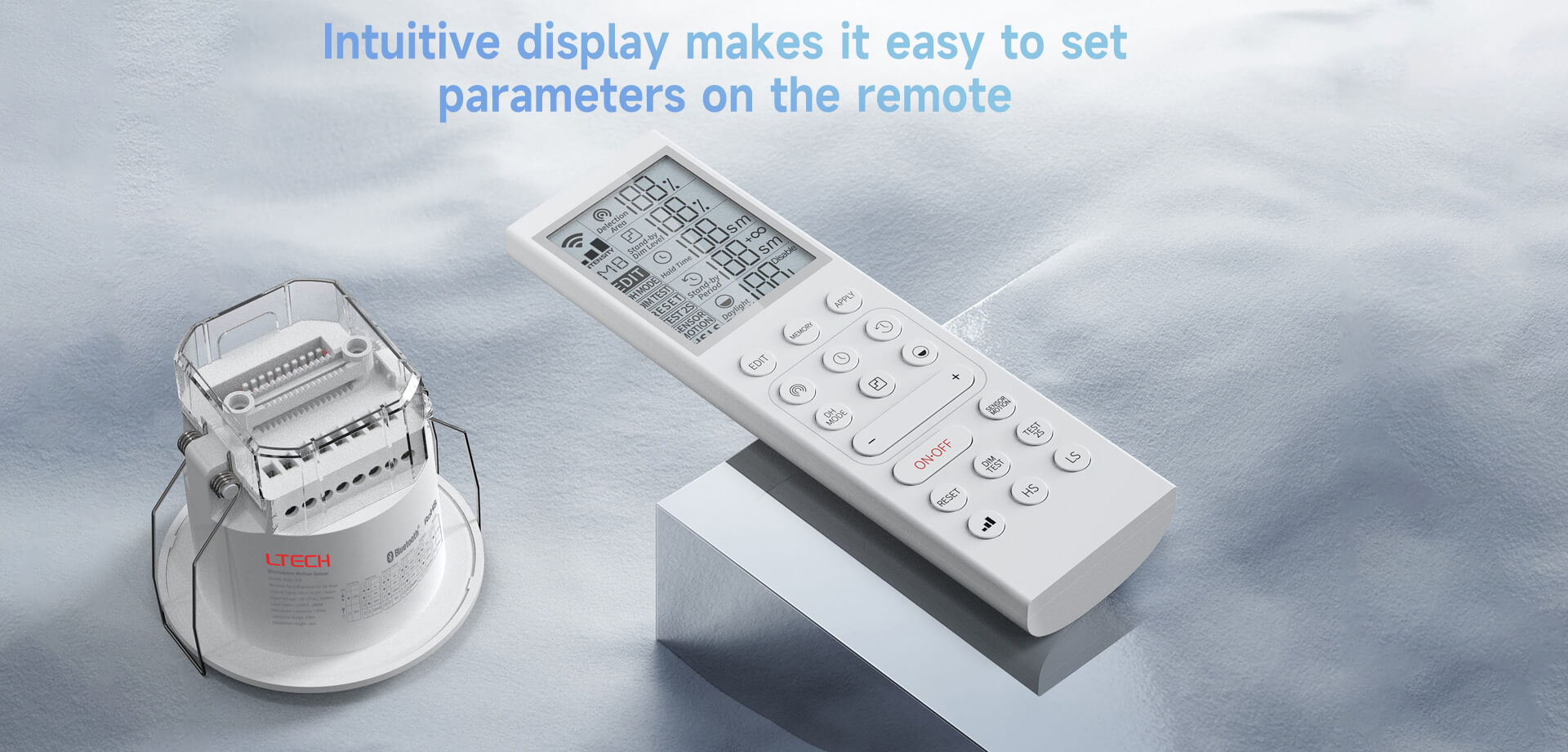

LR1

Output signal:    Infrared signal

Battery powered:    1.5V AAA baterry(2-pack)

Standby power consumption:    <1uA

Operating power consumption:    Peak<40mA Normal<10mA

Communication distance:    ≤6 meters

Operating temperature:    -20℃~50℃

Protection rating:    IP20

Dimensions (LxWxH):    170x50x20mm

Package size (LxWxH):    173.5x55x28mm

Net weight:    99g

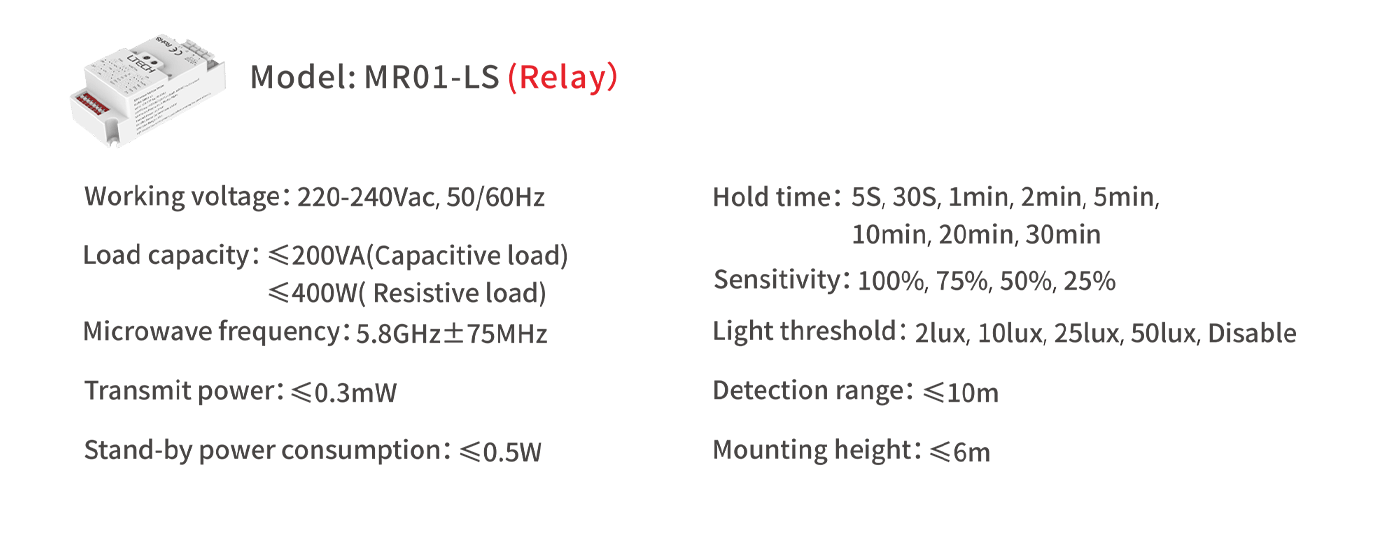

MR01-LS(Relay)

Power voltage:    120-277Vac,50/60Hz

Load power:    200VA(Capacitive load),400W(Resistive load)

Microwave frequency:    5.8GHz±75MHz

Emission frequency:    ≤0.5mW

Stand-by power consumption:    ≤0.5W

Ceiling height:    ≤6m

Detection range:    ≤10m

IP rating:    IP20

Dimensions:    74*36*25mm(LxWxH)

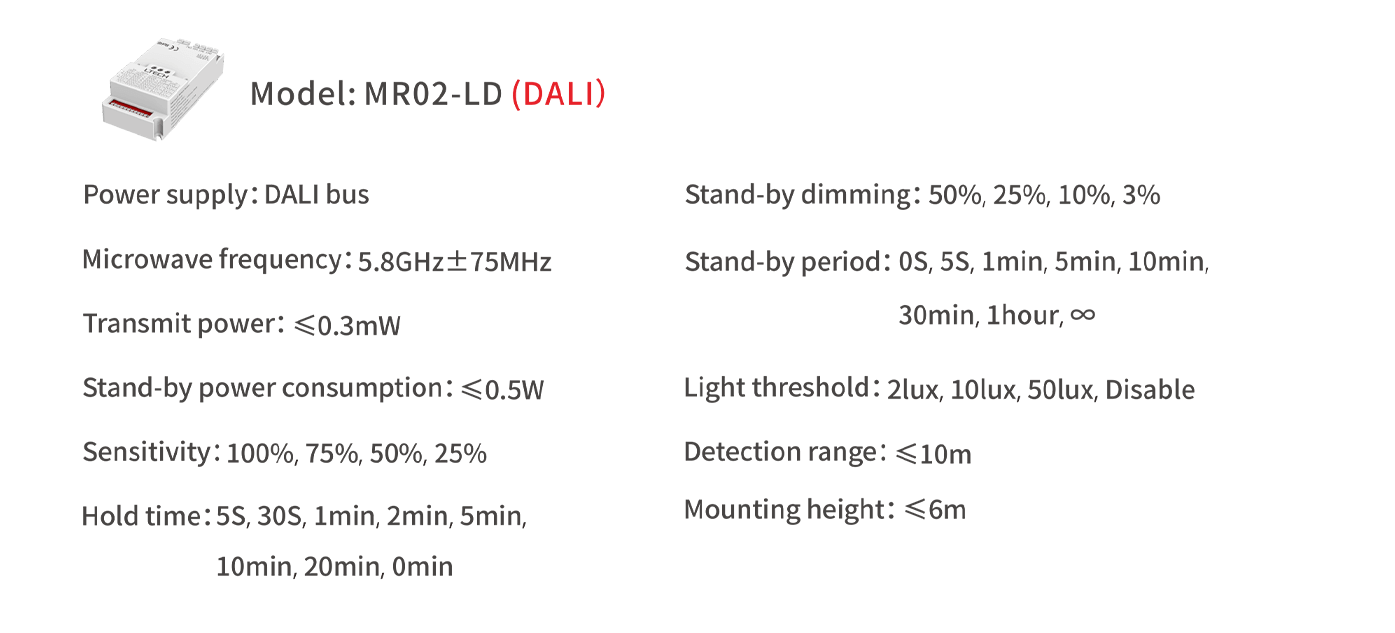

MR02-LD(DALI/Relay)

Power voltage:    DALI

Microwave frequency:    5.8GHz±75MHz

Emission frequency:    ≤0.5mW

Stand-by power consumption:    ≤0.5W

Ceiling height:    ≤6m

Detection range:    ≤10m

IP rating:    IP20

Dimensions:    95*45*26.5mm(LxWxH)

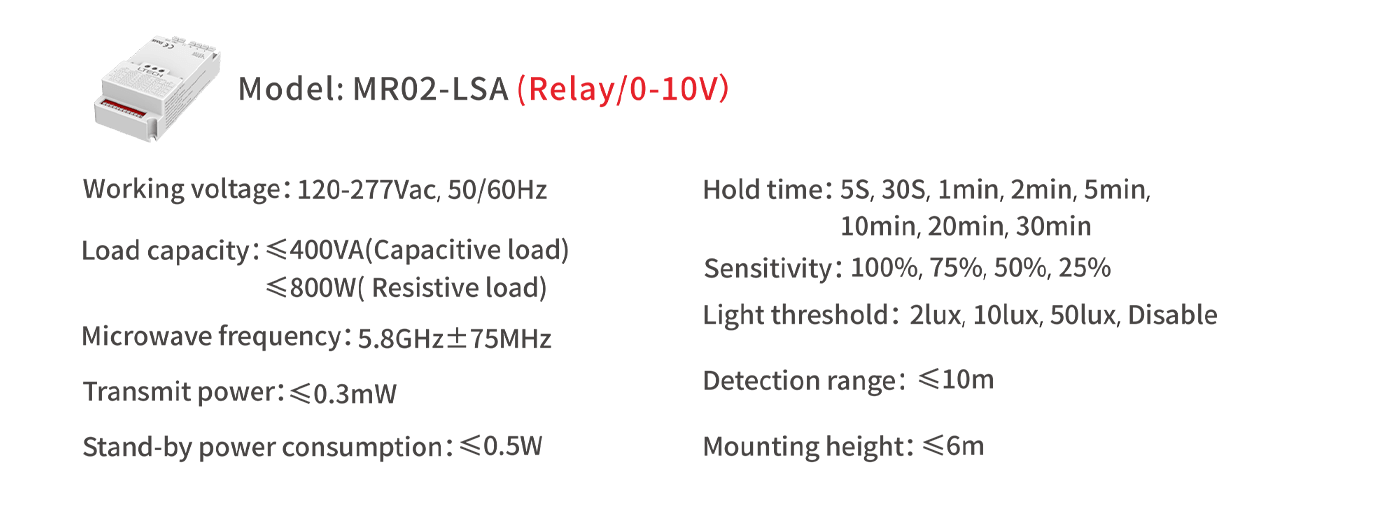

MR02-LSA(0-10V/Relay)

Power voltage:    120-277Vac,50/60Hz

Load power:    400VA(Capacitive load),800W(Resistive load)

Microwave frequency:    5.8GHz±75MHz

Emission frequency:    ≤0.5mW

Stand-by power consumption:    ≤0.5W

Ceiling height:    ≤6m

Detection range:    ≤10m

IP rating:    IP20

Dimensions:    95*45*26.5mm(LxWxH)

Package Included:

1 Piece of Microwave Motion Sensor Ltech LED Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved

LTech_MR01_LS_1

LTech_MR01_LS_2

LTech_MR01_LS_3

LTech_MR01_LS_4

LTech_MR01_LS_5

LTech_MR01_LS_6

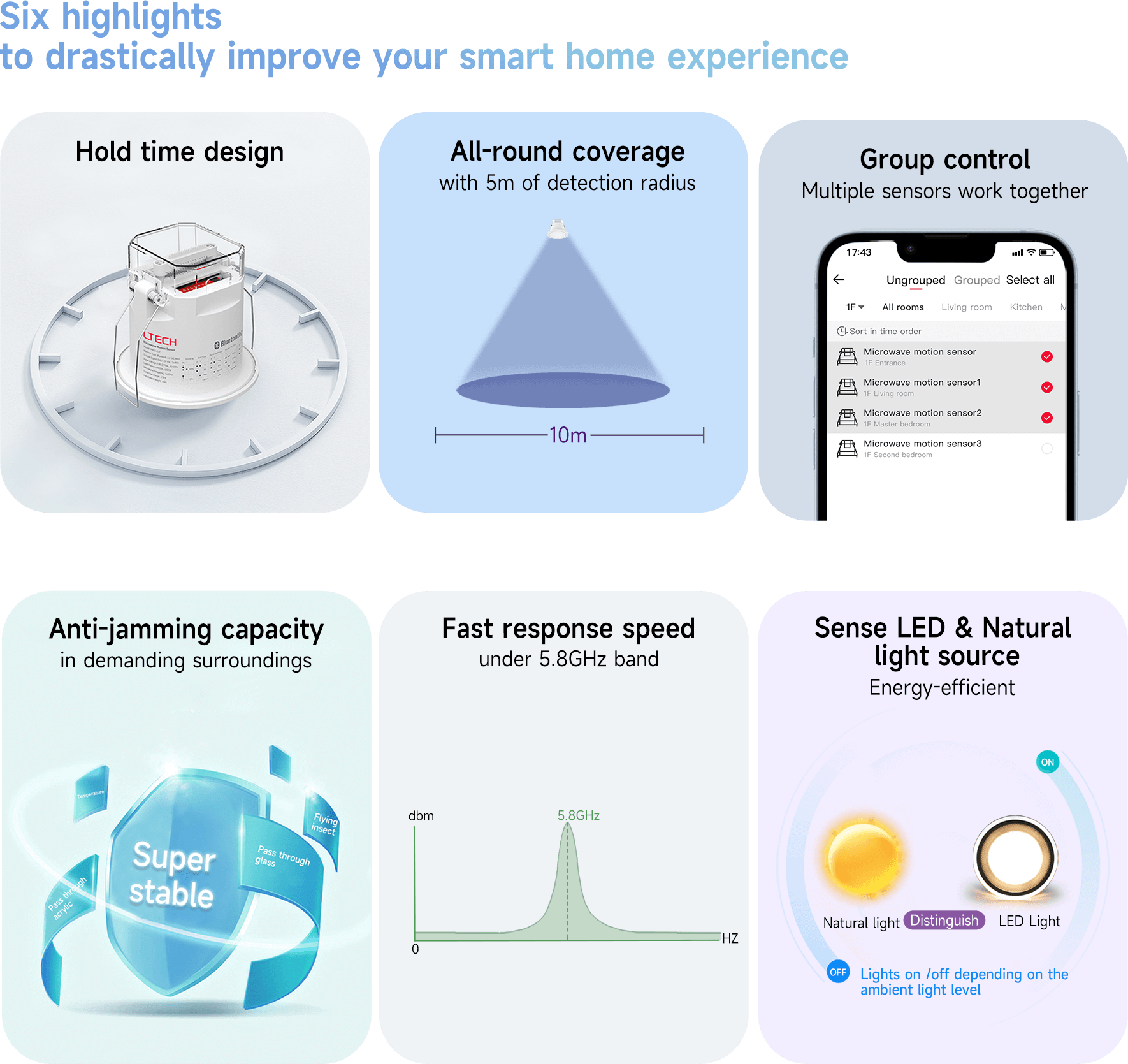

LTech_MR01_LS_7
