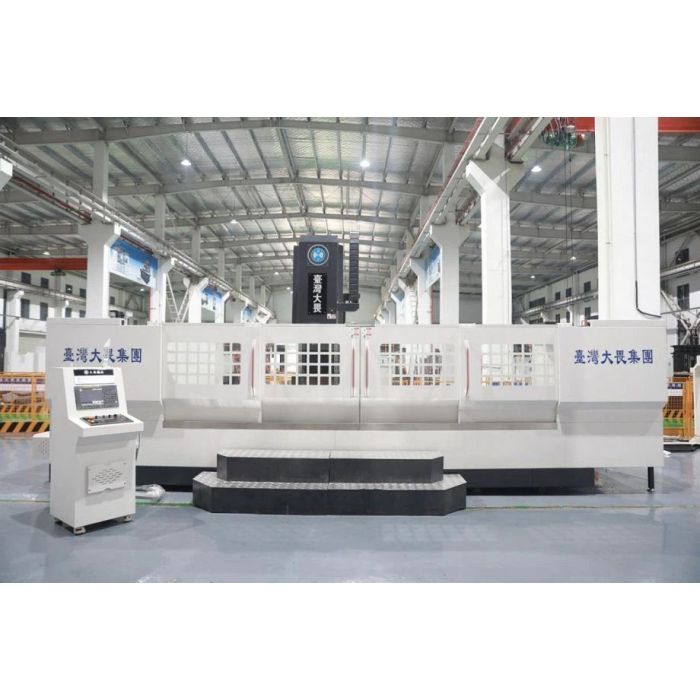

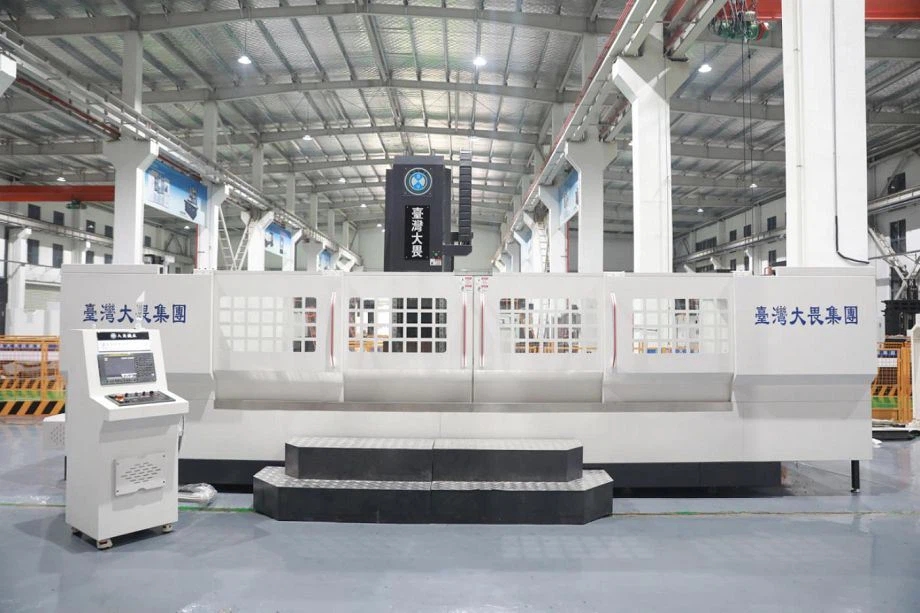

The machine is the table fixed, column mobile structure which can bear large and long steel workpiece, mainly
by the table, bed, column, beam, pillow, hydraulic system, lubrication system, cooling and filtration system,
chip removal device, rotary operation panel and electronic control system and other components.
Overview
The machine is the table fixed, column mobile structure which can bear large and long steel workpiece,
mainly by the table, bed, column, beam, pillow, hydraulic system, lubrication system, cooling and filtration system,
chip removal device, rotary operation panel and electronic control system and other components.
Hot Tags: moving column vertical machining center, suppliers, manufacturers, customized, tube laser cutter,
thread rolling, continious polishing machine, wire edm, pliers production, bar straightening machine
Machine Feature
1. The machine is a set of milling, drilling, tapping, as one of the automatic composite processing center,
suitable for processing various lengths of steel, copper, aluminum and other metal processing.
2. Equipped with automatic chip removal machine.
3. Adopt BT50/BT40 spindle taper hole to increase machine rigidity.
4. Add machine protective cover to ensure operator safety and environmental hygiene.
5. Can be equipped Adopt arm type ATC.
6. Models of different specifications can be customized according to customer requirements
For big order or customized order, Pls feel free to contact service@vozop.com
Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various workshop machineries,
like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working machine, pipe working machine etc.
In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.
