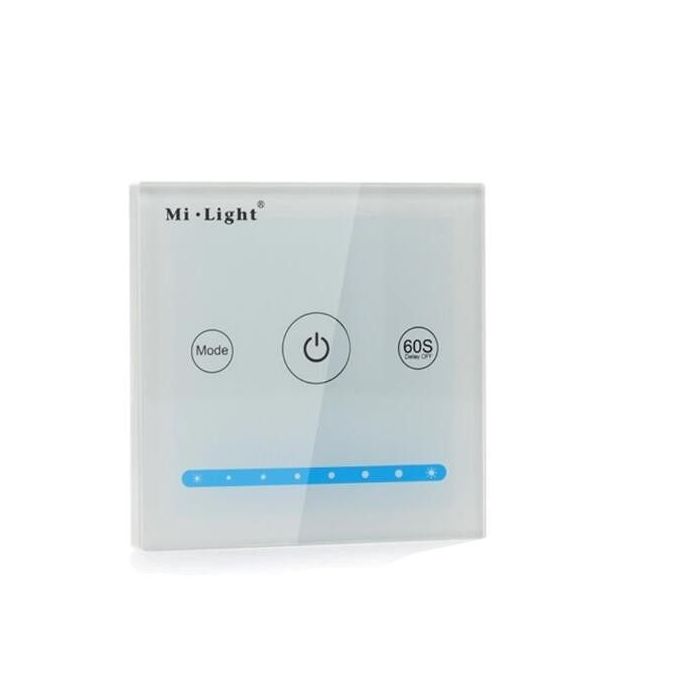

P1 MiBoxer Milight RF Dimmable Lighting Control Panel Led Dimmer has a standard 86*86 European box structure and can be connected with constant voltage LED Lights or LED Strips. The Panel Controller has a capacitive touch screen design, and you can touch the screen to change the dynamic mode, adjust the brightness, or delay the light off easily. You can touch the dimming slider to adjust the brightness from 1% to 100% and touch the mode button to switch the dynamic mode. There are 9 dynamic modes available, and you can touch the "60S" button to delay off the LED Light. The Light will be turned off automatically after 60 seconds. The MiBoxer P1 adopts 2.4G transmission technology and can be controlled by MiBoxer 2.4G RF Remote Controls. The control distance is up to 30 meters. After adding the 2.4G Gateway WL-BOX1, the Controller Panel can be controlled by Smartphone APP and third-party voice commands. The Controlling Panel will receive the signals and transmit them to other Dimmable Panels within 30 meters, and different Panels will work synchronously.
Introduction:
Smart Panel Controller is a newly high-end controller. The appearance is made of a pretty and fashionable gless panels.
And we adopt a high precision capactive touch screen IC. Touch screen is vey stable.
Also it has memory function( Turn off the light, then turn on again, the lamps will keep the same light as before).
Brightness dimming, Made of fashionable glass panel. Adopt a high precision capactive touch screen IC.
Touch screen is very stable, widely used on the controlling of led strip.
(Pls noted this controller would only control LED Strip, it can not control LED bulbs or LED Lamps.)
Easily install and operate.
Technical Parameters:
1. Working Temperature: -20-60degress
2. Working Voltage: DC12-24V
3. Output Max: 5A/Channel
4. Total Output Max: 15A
5. Output Connection: Common anode
6. Panel Size: L86mm W86mm
7. Weight: 177g
Package Included:
1 Piece of Touch Panel Led Controller
2 Pieces of Mounting Kits Screw
Pls noted this controller would only control LED Strip, it can not control LED bulbs or LED Lamps
CE and RoHS approved
