Magnetic separator is our company designed for vibratory finishing machine, It is based on our company
machine’s requirements and similar foreign products and Self-developed products
Overview
Magnetic separator is our company designed for vibratory finishing machine, It is based on our company machine’s requirements
and similar foreign products and Self-developed products. It has the advantages of small size, flexible operation, convenient operation
and adjustable magnetic force, which is the leader in the field of current domestic industry.
Magnetic separator is separating the parts from media after polishing finished.
Hot Tags: magnetic seperator, suppliers, manufacturers, customized, CNC Drilling&Tapping Center,
laser marking machine for metal, two face grinding, Laser shearing, spannaer production, edm cutting
Machine Specification
Conveyor motor power： 0.75（ KW）
Demagnetization power： 11KW
Lifting Motor power： 1.5KW
Machine Dimension： 1830*450*1300(mm)
Machine Feature

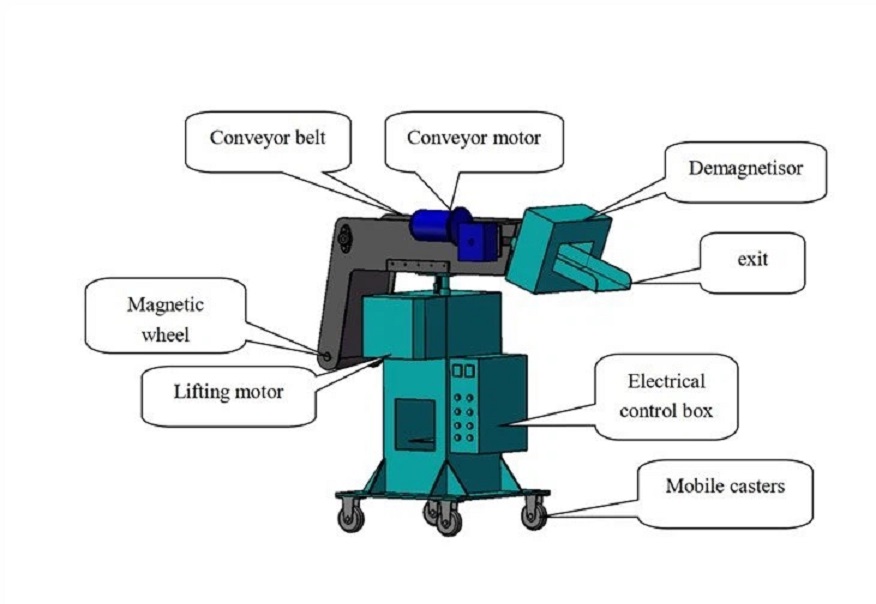

The equipment is composed of conveyor belt, electromagnetic wheel, demagnetization, conveying motor,
lifting motor and electrical control system. In the case of electricity, separate the parts from abrasive through
current electromagnet, and send parts to the designated position trough the conveyor belt. In the process of transmission,
the magnetic workpiece through the demagnetization device, and then the magnetic return
For big order or customized order, Pls feel free to contact service@vozop.com
