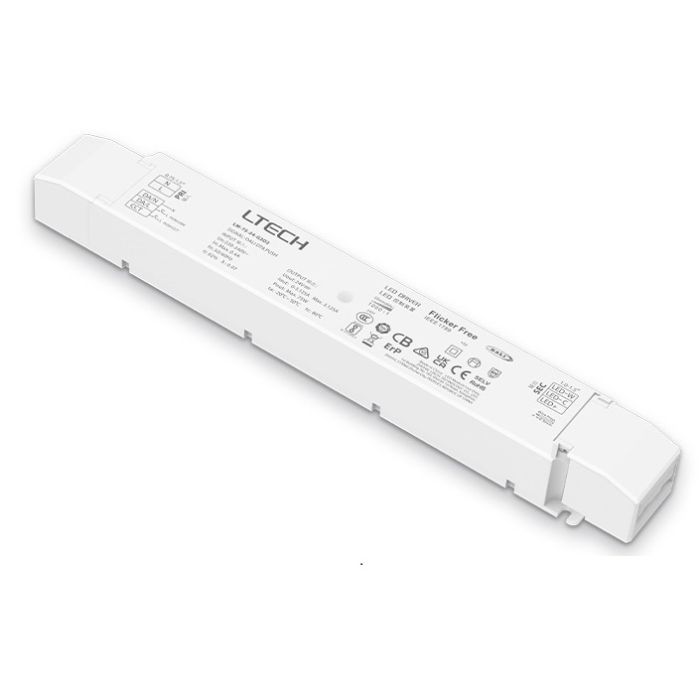

LM-75-12-G2D2 LM-75-24-G2D2 Ltech Led Controller CV 24V DALI Decoder Control Dimmable Driver

$37.55
In stock
SKU
LM-75-12-G2D2 LM-75-24-G2D2 Constant Voltage 24V DALI
  • Buy 50 for $35.31 each and save 6%

For more LTECH DALI Controller Driver, pls check here: https://www.vozop.com/ltech-controller/ltech-dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.vozop.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozop.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozop.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozop.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vozop.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozop.com

LM-75-12-G2D2 LM-75-24-G2D2 Ltech Led Controller CV 24V DALI Decoder Control Dimmable Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Features

Dimming interface: DALI DT8, Push DIM/CCT

2 independently SELV constant voltage output channels.

DALI DT8, DIM and color temperature adjusting driver.

Constant power design, adjust different color temperature to keep the same brightness.

Dimming range from 0-100%, LED start at 0.1% possible.

Color temperature adjusting range: 2700-6500K

0~100% flicker-free, achieve the level of exemption assessment.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Standby Power Loss: <0.5W

Full protective plastic housing.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.

Rubycon capacitor

Dimming Interface: DALI DT8(IEC62386), Push DIM/CCT

Input Voltage:    220-240Vac

Power Factor:     PF>0.97/230Vac, at full load

Efficiency: 92%

Fluctuation Level: High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power: 0~75W

Dimming Range: 0~100%, dimming depth: Max. 0.1%

Certification: CCC,TUV,CE,RCM,CB,UKCA,ROHS

Warranty: 5 years

Package Included:

1 Piece of Ltech LED Dimmable Driver

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
