LM-75-12-G1D2 Ltech Constant Voltage 12V DALI LED Dimmable Driver

$34.32
In stock
SKU
LM-75-12-G1D2 Ltech Constant Voltage 12V DALI
  • Buy 50 for $32.32 each and save 6%

For more LTECH DALI Controller Driver, pls check here: https://www.vozop.com/ltech-controller/ltech-dali-controller-driver.html

If you need COB Led Strip, pls check here: https://www.vozop.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozop.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozop.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozop.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vozop.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozop.com

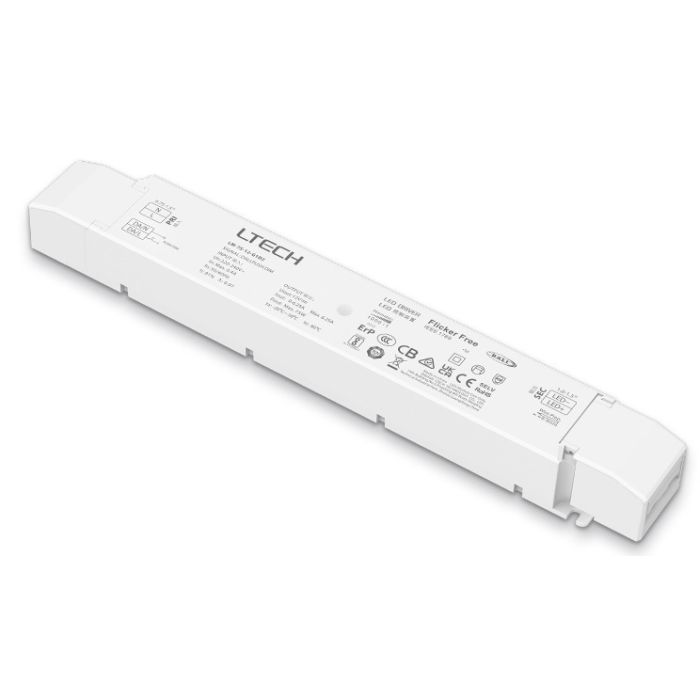

LM-75-12-G1D2 Ltech Constant Voltage 12V DALI LED Dimmable Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: DALI, Push Dim.

Dimming range from 0-100%, LED start at 0.1% possible.

0~100% flicker-free, achieve the level of exemption assessment.

DALI dimming curve: liner curve or logarithmic curve.

Over-heat / Over load / Short circuit protection, recover automatically.

Standby Power Loss < 0.5W

Full protective plastic housing.

DALI bus standard: IEC62386-101,102, 207.

Compliant with Safety Extra Low Voltage standard.

Suitable for indoor I/II/III type lamps application.

Technical Specs:

LM-75-12-G1D2

Dimming Interface:     DALI/PUSH DIM

Dimming Range:    0~100%, LED start at 0.1% possible.

Input Voltage Range:     200-240Vac ±10%, 277Vac

Power Factor:

PF>0.96/230Vac , PF>0.95/277Vac

Efficiency:    >91.5%

Output Voltage Range:     12Vdc ± 0.5Vdc

Output Power Range:    1~75W

Output Current:     Max. 6.25A

Working Temperature.:    tc: 80℃ ta: -30 ~ 55℃

Dimension:    292×43×30mm(L×W×H)

Packing:    296×44×33mm(L×W×H)

Weight(G.W.):    300g±10g

Package Included:

1 Piece of LM-75-12-G1D2 Ltech Constant Voltage 12V DALI LED Dimmable Driver

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
