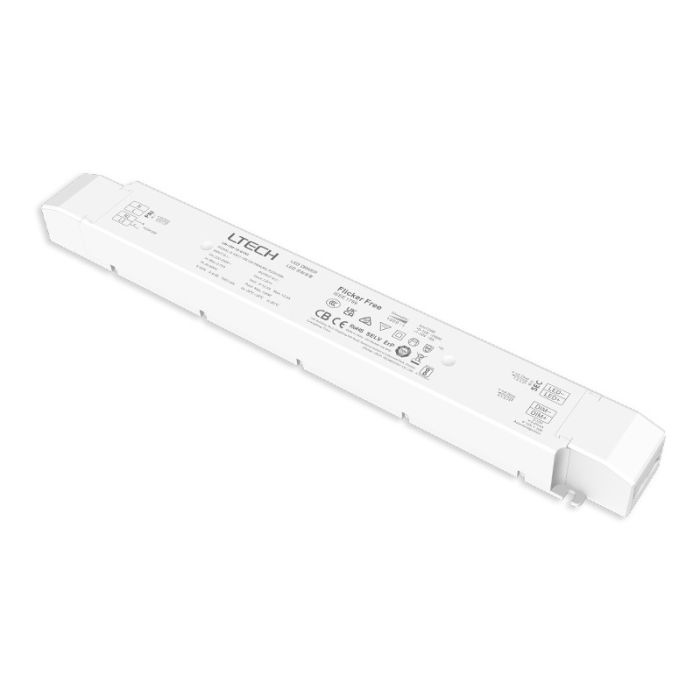

LM-150-24-G2A2 Constant Voltage 0-10V LED Dim&CT Control Ltech Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM/CCT

Dimming interface with photoelectric isolation, in line with the latest safety standards, more safe and reliable.

0-10V DIM and color temperature adjusting driver, 2 independently SELV constant voltage output channels.

Constant power design, adjust different color temperature to keep the same brightness.

Dimming range from 0-100%, LED start at 0.1% possible.

With soft-on and fade in function, visual more comfortable.

Color temperature adjusting range: 2700-6500K

Automatic recognition of 0-10V, 1-10V input signal.

0~100% flicker-free, High frequency exemption level.

High efficient driver: efficiency 93%, PF>0.98, THD<6%.

In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W

Innovative thermal management technology, intelligent power life protection.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Fully-protected plastic housing with design of dismountable end cover.

Suitable for indoor I/II/III type lamps application.


Dimming Interface:    0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT

Input Voltage:    220-240Vac 200-280Vdc

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    93%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 6.25A

Output Power:    0~150W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,ENEC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA

Warranty:    5 years

Package Included:

1 Piece of LM-150-24-G2A2 Constant Voltage 0-10V LED Dim&CT Control Ltech Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
