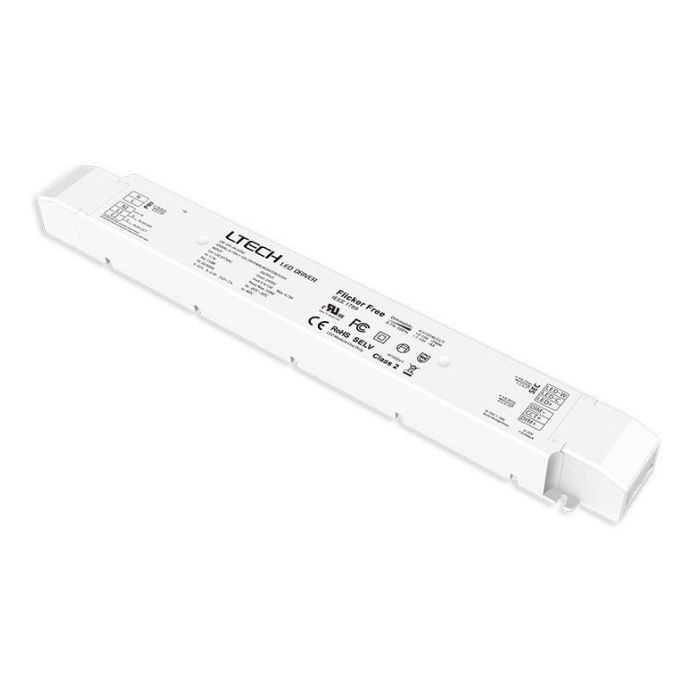

LM-100-24-U2A2 US Standards CV 0/1-10V Tunable White Ltech Driver Controller

$39.80
In stock
SKU
LM-100-24-U2A2 US Standards CV 0/1-10V Tunable White Ltech
  • Buy 50 for $37.41 each and save 6%

For more LTECH 0/1-10V, pls check here: https://www.vozop.com/ltech-controller/letch-0-1-10v.html

If you need COB Led Strip, pls check here: https://www.vozop.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozop.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozop.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozop.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vozop.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozop.com

LM-100-24-U2A2 US Standards CV 0/1-10V Tunable White Ltech Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Small size and light weight.

The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.

The clamshell design and screwless type for strain-relief.

The design of dismountable end cap allows you to adjust the length of housing depending on your needs.

Adopt constant power program design and it keeps the same brightness in color temperature adjustment.

With soft-on and fade-in dimming function, enhancing your visual comfort.

High frequency exemption level.

Dimming from 0~100%, down to 0.1%.

2-CH SELV output channel with common anode.

Automatically recognize 0-10V and 1-10V input signals.

Ultra-low consumption of 0-10V ports < 0.05mA.

The secure and reliable design for signal isolation.

Innovative thermal management technology intelligently protects the power life.

Overheat, over voltage , overload, short circuit protection and automatic recovery.

Suitable for internal lights application for I/II/III.

Up to 50000-hour life time.


Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM/CCT

Input Voltage:    120-277Vac

Power Factor:     PF>0.99/120Vac, PF>0.95/230Vac, PF>0.9/277Vac (at full load)

Efficiency:    93%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 4.17A

Output Power:    0-100W

Dimming Range:    0~100%, down to 0.1%

Certification:    FCC,CE,ROHS,UL

Warranty:    5 years

Package Included:

1 Piece of LM-100-24-U2A2 US Standards CV 0/1-10V Tunable White Ltech Driver Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
