Origin: CN(Origin)
Power Source: AC
Controled Method: SD card

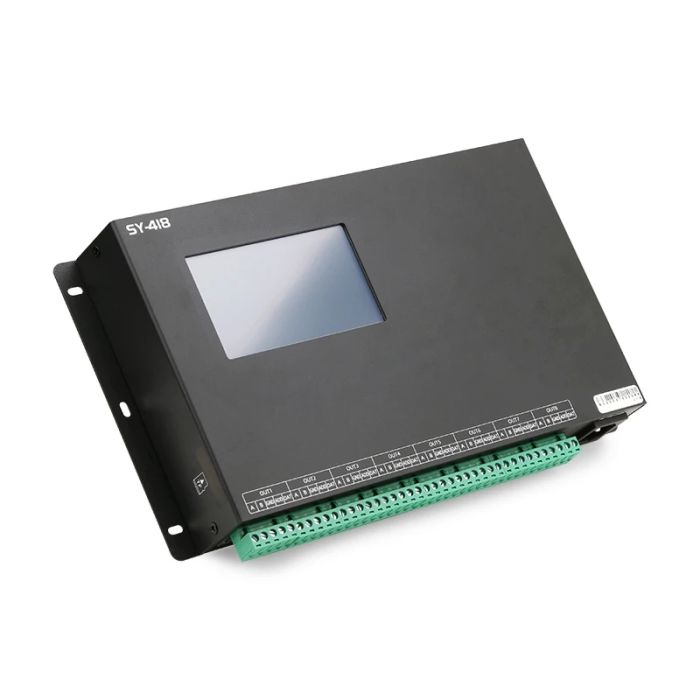

Model Number: K-SY-418
Features: music control
Remote Distance: null
Item Type: RGB Controler
Material: metal
Warranty: 1 year
Wattage: 5w
Applicable Lights: addressable pixel light
Certification: ce
Certification: ROHS
Oscillation frequency: null
Connection Mode: terminal, RJ45
Max. Load Power: 1024 pixel *8
Voltage: 110-240V
SD card control: yes
music control: yes
timer function: yes
output signal: SPI , DMX512
each channel power: 1024 pixel TTL, 336 DMX512 (extend)
total channel: 8CH
cascade connection: yes
touch screen: yes
DMX512 control signal in: yes(418X) no(418)
art-net signal in: no
DMX512 address writting function: yes
size: 285x156x45mm
wight: 2kg
program software: LEDplayer 3.x
compatible platform: Windows
This controller work with SD card memory, can store up to 96 patterns,
one controller can drive up to 1024pixel/CH *8CH,
more than one controllers can be conneted in series, to arise controllable pixel,
support almost single cable SPI light, like 1903, 2811,
and support standard DMX light, like UCS512 series,
Built-in music control function, with built-in MIC, and AUX
the controller can be controlled by touch panel, or DMX512 master, (function is built-in, touch panel or DMX512 master is optional)
DMX512 signal-in function, is connect DMX512 master controller (like 192 master) to the controller is easy
control playing mode, playing speed, brightness, and turn picture mode, music mode.
note:
as the package is more than 2kg, if you choose standard type shipping, like Aliexpress standard shipping,
we may take off the power cable to keep it under 2Kg, thanks for your understanding!
FUNCTION OVERVIEW
1. 8-channel output signal (data-independent). Apply to large project and long distance transmission. Support several
controllers cascade using.
2. Control variety of regular chips in LED digital tube screen, LED pixel light screen, and etc.
SW Single chip: D**S, D**J.
Single-wire: TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, TLS3001(1Mhz), SM167**.
DMX512: SW-D, SW-U, UCS512A/B/C0/C4/D/E0/EH, DMX512AP/SM512, SM16500P, SM16511/12,
SM17500P/12P/22P, SM17512/22, Hi512A0, Hi512A4, Hi512A6, TM512AB3, TM512AL1,
TM512ACx, TM512AD, QED512P, standard DMX512 lighting fixture on the market.
Breakpoint resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S, GS8512.
3. Audio control, sound control, cascade sync, time control, GPS satellite sync and BTS satellite sync are optional as additional
functions.
4. Specialized software of making animation is included, user can make their own effects.
5. The load capacity of different lighting fixtures is different. (If no specific requirement of frame frequency, load capacity
of each channel can be increased independently, and user must conduct the test by himself/herself.)
TECHNICAL PARAMETERS
Cover material: Iron
Input voltage: AC 100V～240V
Output signal: TTL & RS-485 * 8 channels
Pixel driven:Single chip: 960 pixels ×8 channels, Single-wire: 1024 pixels ×8 channels,
standard DMX512: 168 pixels ×8 channels, extensible DMX: 336 pixels ×8 channels,
Breakpoint resume: 960 pixels ×8 channels.
Output power: ＜3W
Working temperature: -15℃～60℃
Relative humidity: ≤50% RH
Ingress protection: IP0 (non dustproof, non waterproof)
Working environment: Please install under dry indoor condition, avoid any dust, moist and rain.
Net weight: 2050g
Suppor IC：
SPI:TM180*-400K/800K, UCS19**, UCS29**, SM167**.
DMX512 lighting fixture:SW-D, SW-U, UCS512A/B/C0/C4/D/E, DMX512AP/SM512, SM16500/12, SM17500P/12P/22P,
standard DMX512 lighting fixture in the market, common DMX512 decoders.
Breakpoint resume:UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.
DMX512 address writting function IC supported
Touch panel(optional)
CE and RoHS approved
