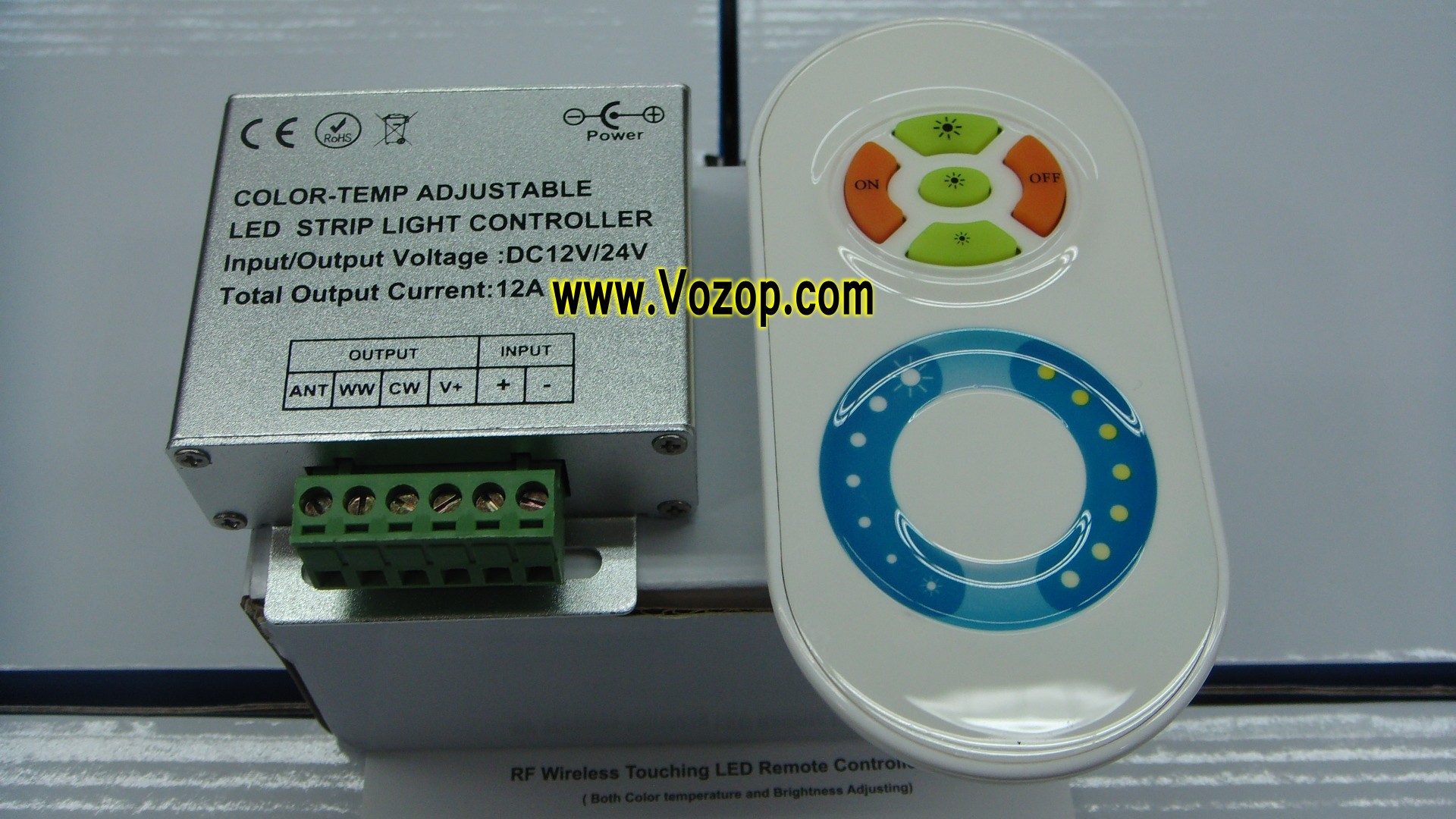

12A 433MHz Adjustable Color Temperature RF Remote LED Control DC 12V-24V is a multi-function Touching LED Controller.
It adopts the most advanced PWM remote control technology ,can control all the full color LED lighting with Three lines two
circuits(common anode),with 20 grades of brightness and 11 grades of color temperature adjusting. it widely applies to LED
strip light and dimmable and color temperature adjustable LED lighting, etc
Specifications:
1. 2.4G RF Remote Control
Power: AAA battery*2pcs (not included)
Material:ABS
Fabrication processing: Multicolor printing & UV varnish
2. LED Controller
Size: 85*45*22mm
Working voltage: DC12-24V
Output control: 2 circuits
Control current: 6A/circuit
Connection method: Common anode
Receiving range: approx. 30meters
How to use:
1. Brightness Adjusting:
Use your finger to touch the left half part of color ring,
you can change the brightness from the highest to the lowest
(100%-1%, 20 grades of brightness to adjust).
2. Color temperature Adjusting:
Use your finger to touch the right half part of color ring,
you can adjust the temperature from warm white to cool white
(11 grades to adjust).
3. Resume function:
The previous settings will be resumed while power on agian.
4. Matching code:
Press Key 3 once within 3 seconds when power on again,
the light will blink 3 times if matching is successfully.
5. Clearing code:
Press Key 3 five times within 3 seconds when power on agian,
the light will blink 6 times if clearing is successfully.
Caution:
Please don't touch or press the color ring while loading the batteries to protect the sensitiveness.
Please use the remote controller 3 seconds after the batteries are loaded.
Please reload the batteries when you find the color ring is not sensitive.
Package included:
1 Piece of Color Temperature Adjustable Controller
1 Piece of RF Control Remote
1 Piece of User's Manual
CE and RoHS approved
