In addition to the basic functions of turning, grooving and chamfering, the machine tool can also perform
various metric and inch internal and external thread processing, as well as drilling, expansion, reaming, rolling and other processing;

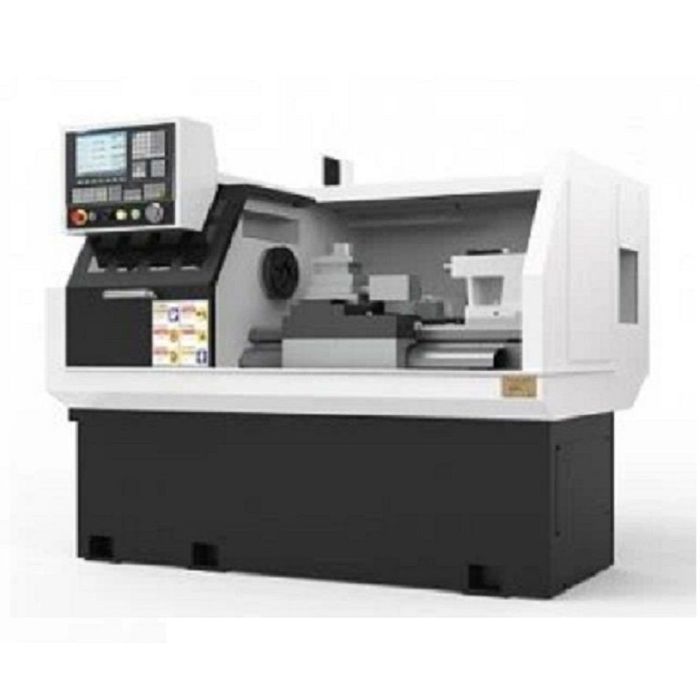

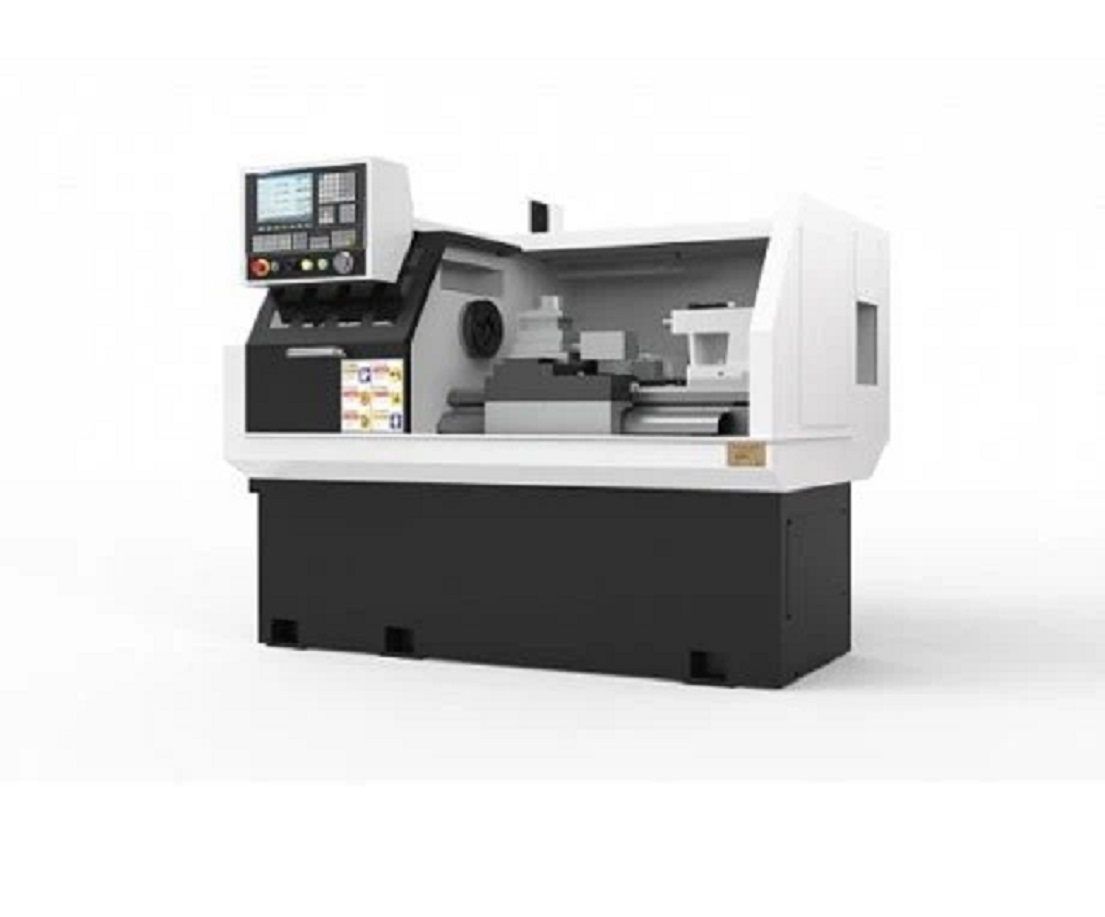

Overview
1.In addition to the basic functions of turning, grooving and chamfering, the machine tool can also
perform various metric and inch internal and external thread processing, as well as drilling, expansion, reaming, rolling and other processing;
2.It is able to process cylindrical, conical, stepped, spherical and other various curved surfaces,
such as short-axis (or disc) parts with complex geometric shapes, many sizes and high precision requirements;
3.Suitable for processing bars with the diameter below Φ40mm(spindle through hole),
disks and short shaft parts with a diameter below Φ350mm（this range may vary depend on the fixture）；
4.Suitable for the production of single or medium and small batches of non-ferrous and
ferrous metal workpieces of small and medium specifications;
5.The machine tool is suitable for the automated production of machinery, instruments,
light industry, electronics, medical instruments and other industries.
Hot Tags: flat bed lathe, suppliers, manufacturers, customized, Moving Column Vertical Machining
Center, wet polishing, bits machine, pipe reducer, sheet shearing machine, vertical turning center
Machine Feature

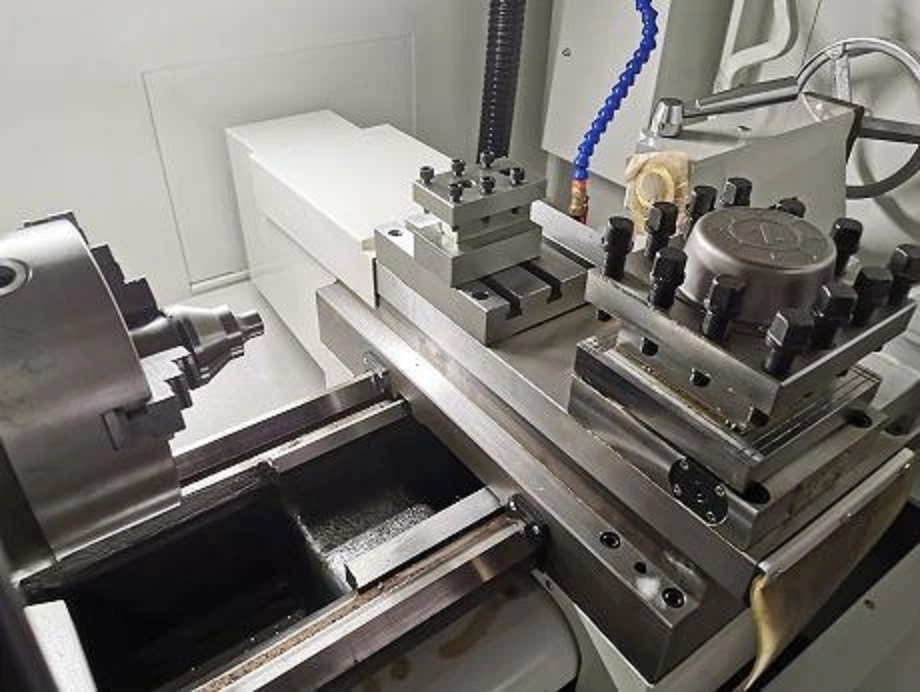

1.The machine adopts horizontal flat bed structure,the surface of guide way is processed by
precise grinding after quench treatment,has good accuracy and accuracy maintenance；
2.The machine adopts independent spindle structure with high precise bearings,high spindle speed、small thermal deformation;
3.Adopt the integral bed foot and semi-encolsed protection structure,the rigidity is better and easy to use tailstock；
4.Electromechanical and hydraulic integrated design with compact structure and elegant appearance；
5.Can equip gang type tool post、4 station vertical electric tool post;
6.Vertical and horizontal drive adopt the high-performance AC servo motor with high positioning accuracy、flexible and reliable action;
7.Adopt automatic centralized lubrication device,lubrication is fully reliable;
8.The control system uses well-known CNC system in domestic and abroad,which is reliable to perform
and easy to operate.The machine meets the ergonomic design and requirements and the maintenance cost is lower.
