Product Package:
If you choose LED Strip only, ,then we will only send you LED strip. (No controller included , No power included)
If you choose Power Supply only, ,then we will only send you Power Supply. (No controller included , No LED Strip included)
If you choose ES32 Controller only, ,then we will only send you ES32 Controller. (No LED Strip included , No power included)
If you need LED strip and Power Supply and Controller, pls add all of them to the shopping cart, so we will send as you choose and order.
ES32 PIR Sensor Stair Light Controller
PIR sensor; Light sensor/up to 32 steps/compatible with 28 ICs/up to 960 pixels/OLED display screen/equipped with body sensing and infrared reflection sensing
Feature function:
●. A multifunctional PIR induction staircase light controller with backlight detection.
●. 32 channel constant voltage output drives low-voltage LED light strips, with a maximum current of 1A for each channel.
●. 2 sets of identical SPI (TTL) signal outputs, driving 28 types of IC digital RGB LED light strips, with the ability to set IC type and R/G/B order.
Compatible IC: TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A,
GW6205, GS8206, GS8208, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, SM16703P.

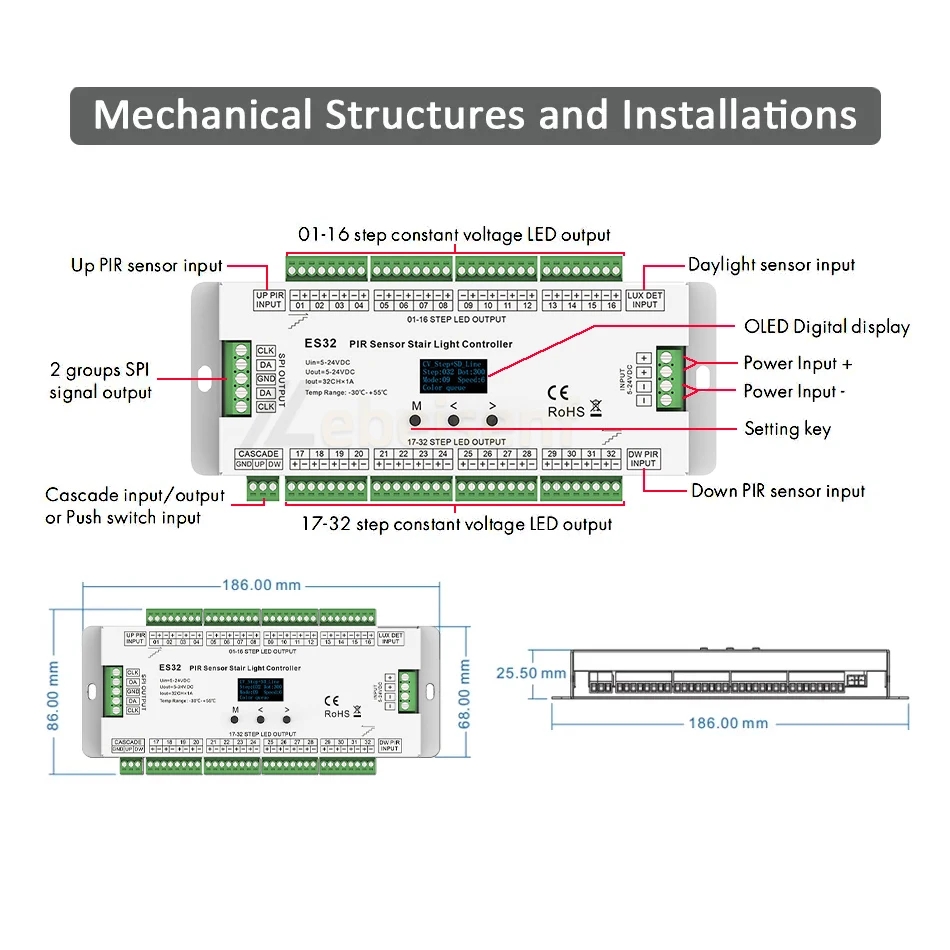

●. OLED display screen with 3 buttons, easy to operate.

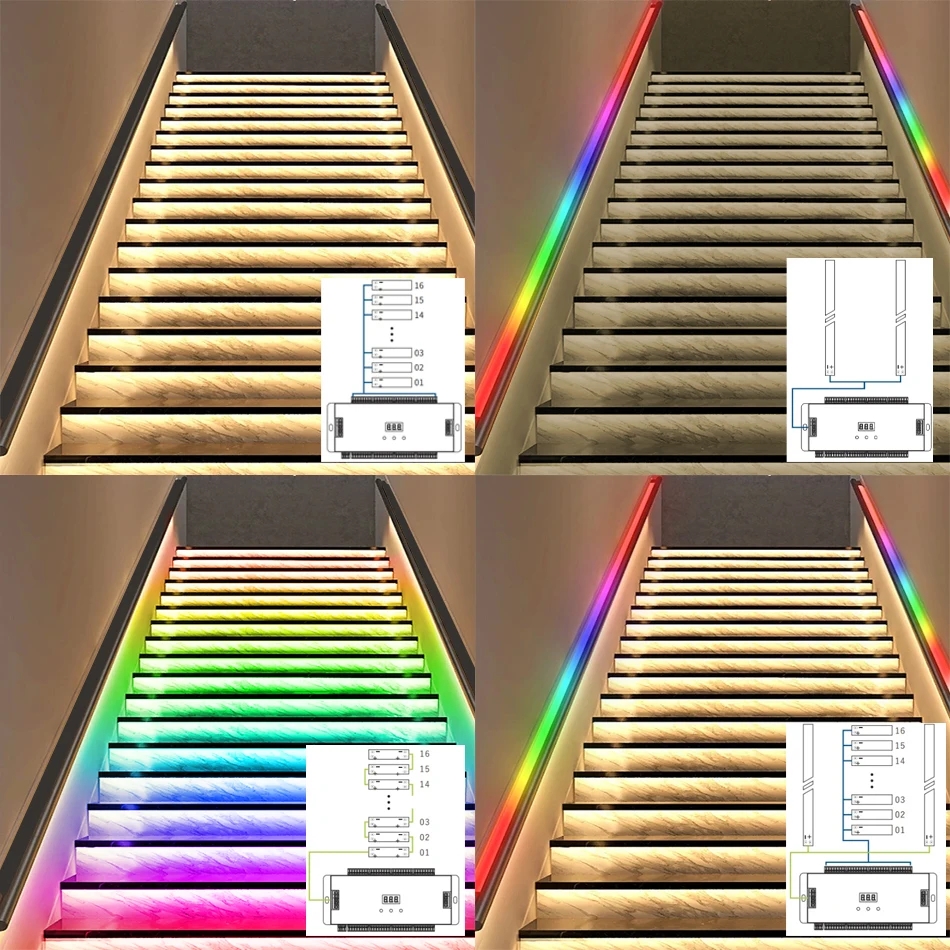

●. Four output modes are available.

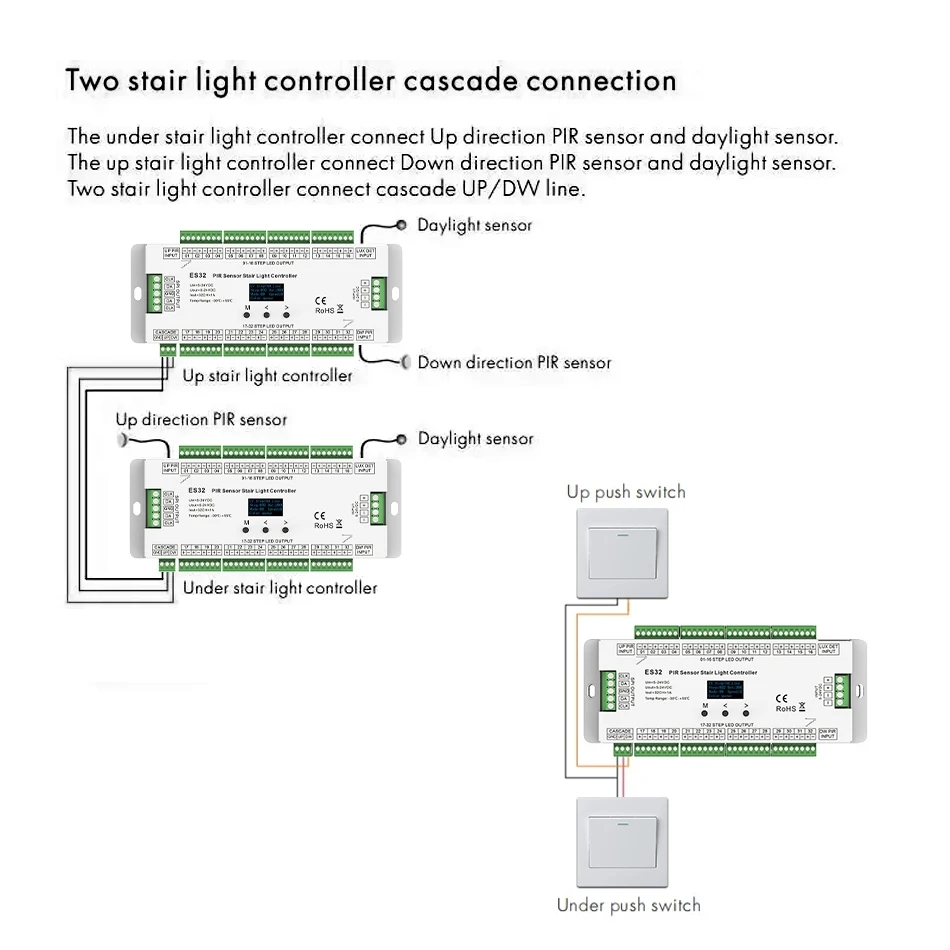

●. Two stair light controllers can be cascaded.
●. Equipped with multiple color display modes, the speed and brightness can be adjusted from 1 to 8 levels.
●. It can be connected to a reset switch as an induction signal output.
●. Equipped with fast inspection function.
●. The damaged constant voltage output channel can be set to turn off the output and skip the channel to enable it.

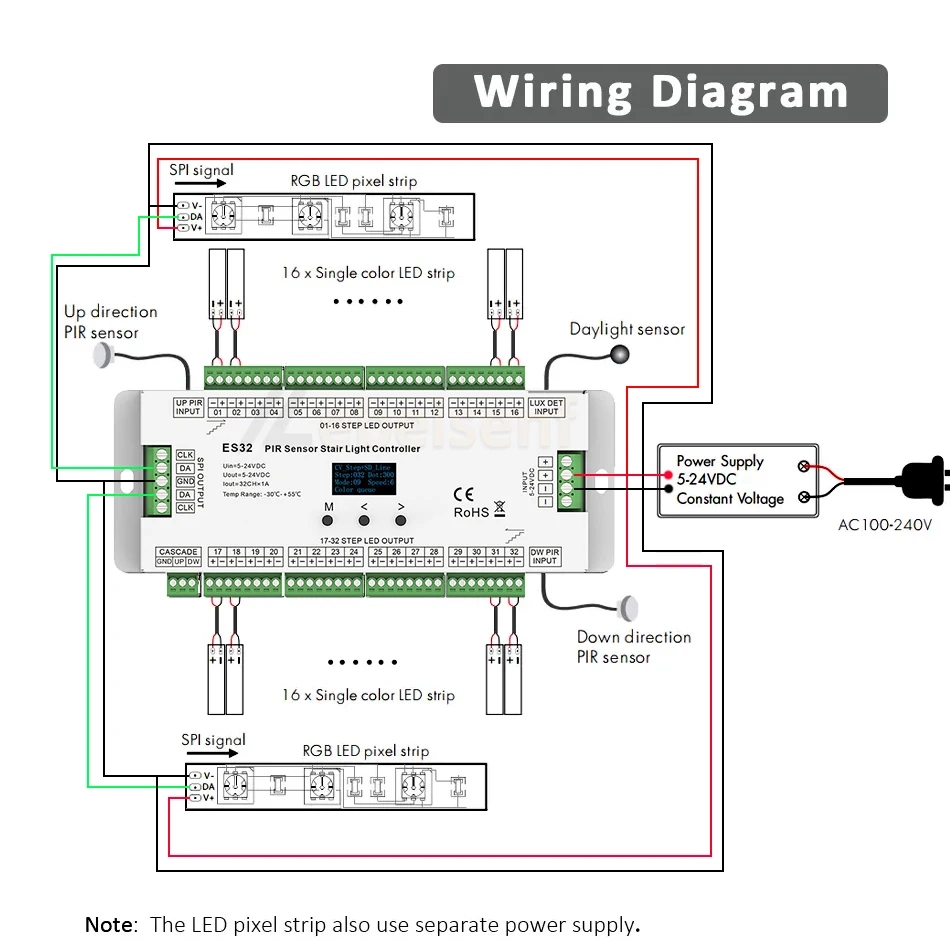

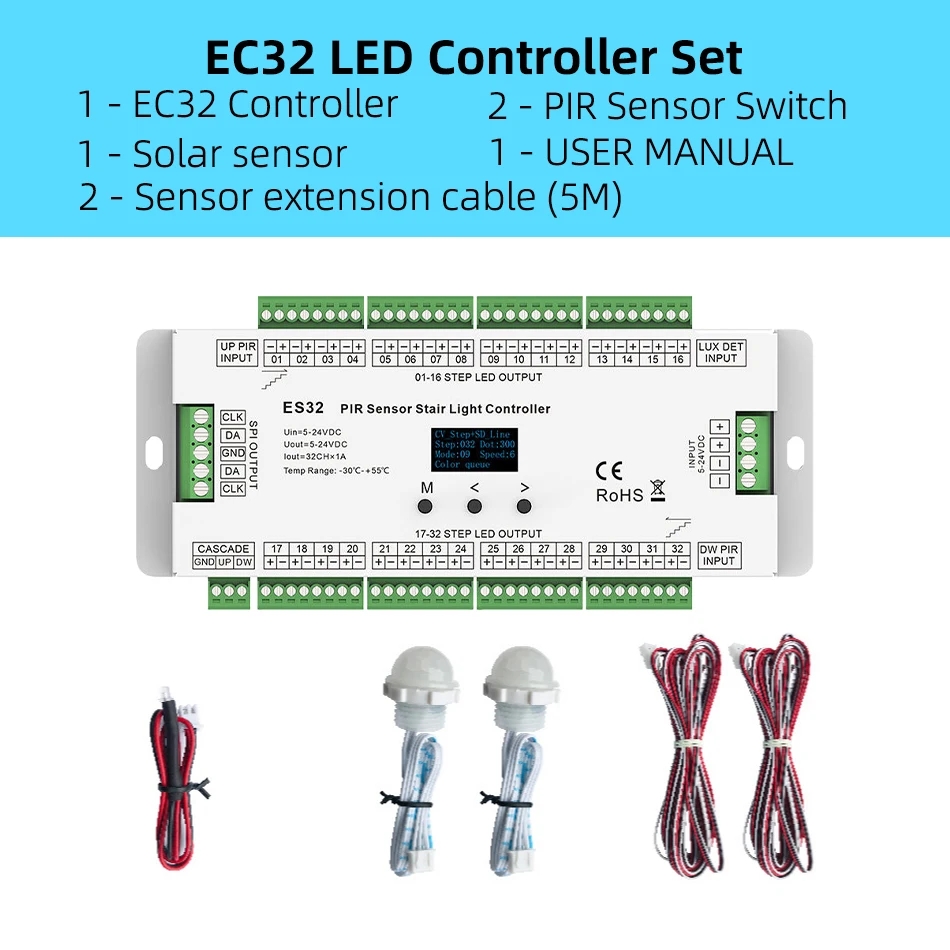

●. Paired with two PIR body sensing heads (standard), or when precise sensing is required, an infrared reflection set ES-T can be optional.

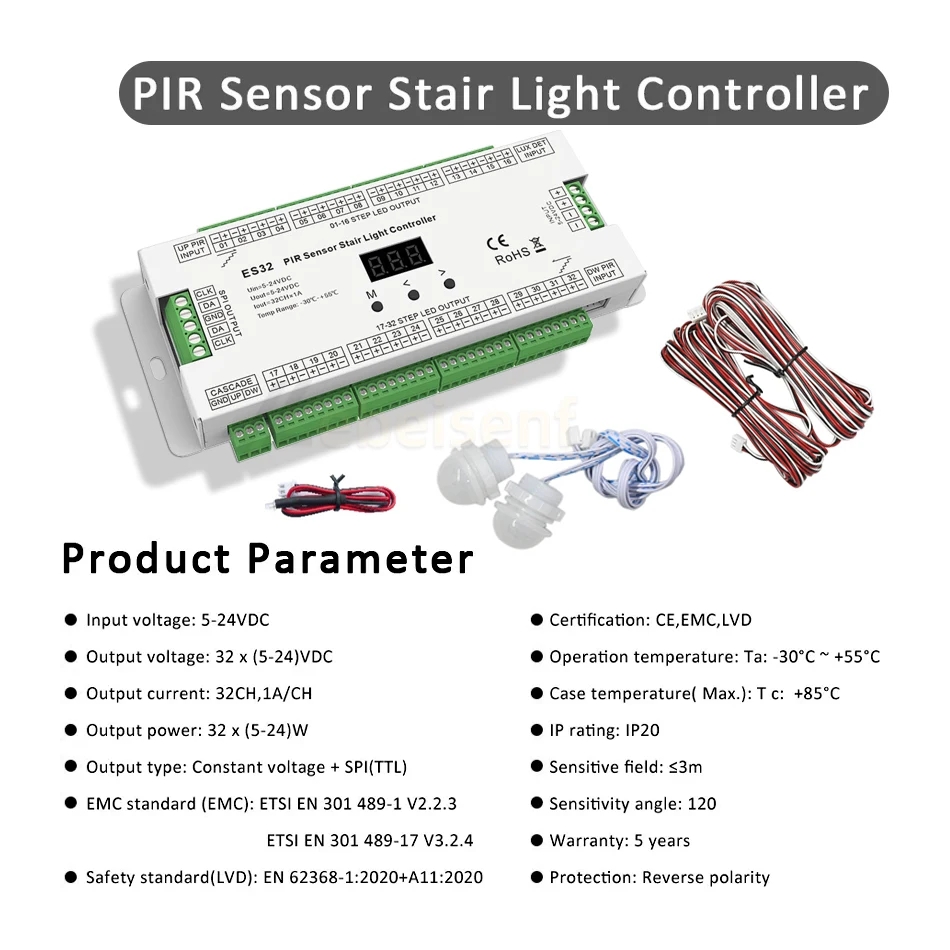

Product parameter：
●. Input voltage: 5-24VDC
●. Output voltage: 32x (5-24) V DC
●. Output current: 32CH, 1A/CH
●. Output power: 32x (5-24) W
●. Output type: constant voltage PWM+SPI (TTL)
●. Sensing range: ≤ 3m
●. Sensing angle: 120 °
●. Working temperature Ta: 30C~+55C
●. Maximum shell temperature Tc:+85C
●. Protection level: IP20
●. Warranty: 5 years
CE and RoHS approved
