Summarization

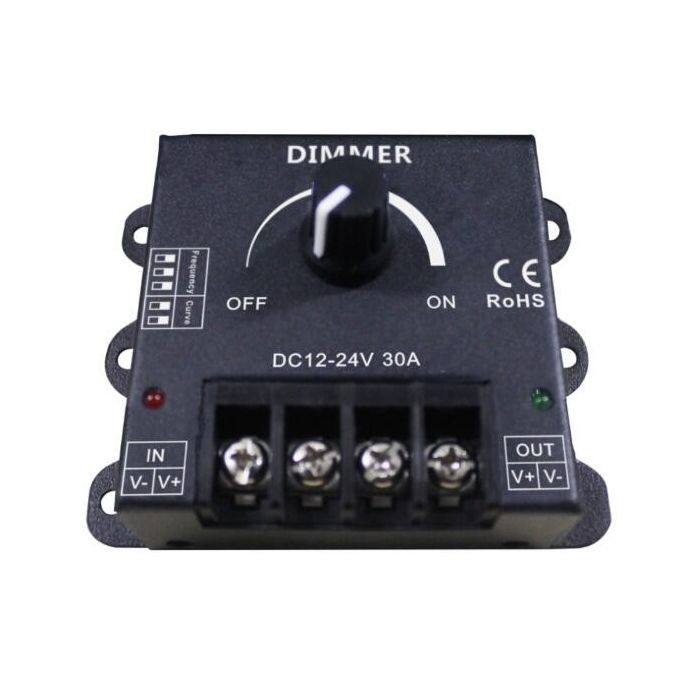

DM110 frequency adjustable dimmer can adjust brightness infinitely, adopts knob-operated control, user can adjust
light to the appropriate brightness according to actual needs. Output of dimmer is 1 channel, and you can adjust PWM
frequency and dimming curve through the dial switch.
Technical Parameters
working temperature: -20-60℃
supply voltage: DC12-24V
output: 1 channel
connection mode: common anode
external dimension: L81.5ΧW64ΧH40 mm
packing size: L90ΧW72ΧH50 mm
net weight: 140g
gross weight: 195g
static power consumption:<0.7W
output current: <30A
(when PWM frequency is more than 1KHZ, maximum output current will reduce accordingly)
Package Content:
1 Piece of LED Controller
1 Piece of User's manual
CE and RoHS approved
