DMX module adopts the advanced micro control unit, it receives widespread international way that transformed
the DMX-512 standard digital control signals into PWM controller signals for driving LED; You could connect DMX
module with DMX digital console to achieve dimming or various changes in procedures.
Technical Parameters
Working temperature: -20-60
Supply voltage: AC9-32V
Meets DMX512/1990
Output: 3 channels*300ma
Grayscale: 256-level brightness,full-color contro
Setting start address by a writer, easy and convenient
Slim size,easy to put into all sorts of lamps
With control system,can realize substantial change effect
size:40mmx28mmx10mm
Net weight: 9g
Gross weight: 75g
Output current: <600mA(each channel)
At AC12V power supply, each channel can drive 1-3 pcs 1W LEDs in series;
At AC24V power supply, each channel can drive 1- 6 pcs 1W LEDs in series;
Package Included:

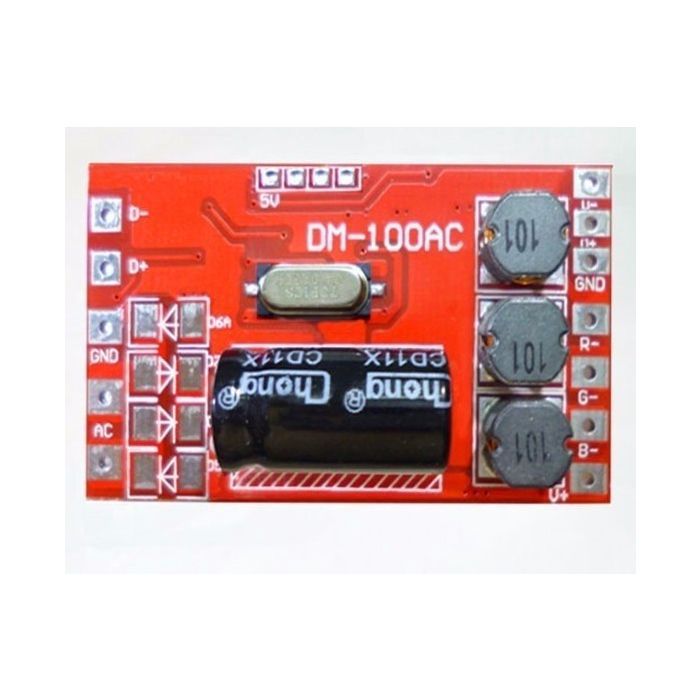

1 Piece of DM-100AC 3channel Output Dmx Constant Current Decoder AC9-32V Input
CE and RoHS approved
