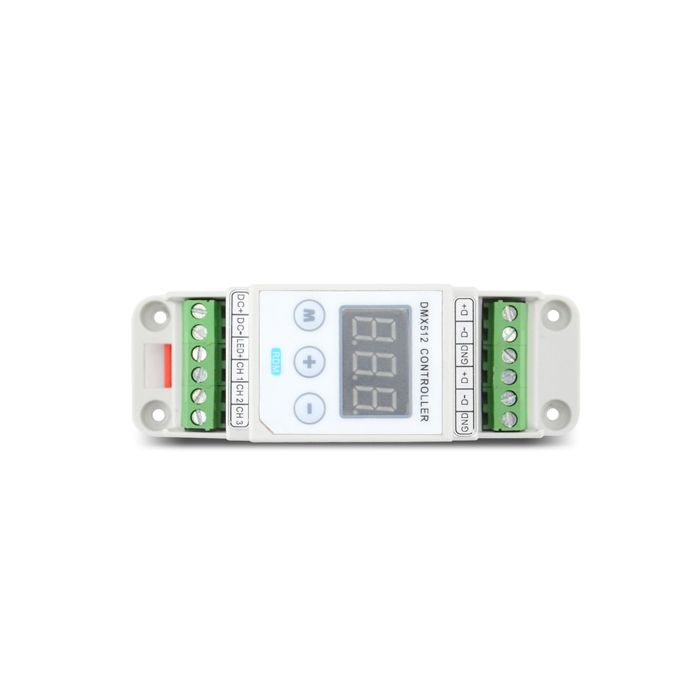

DIM101M-DIN Euchips 5A 3ch 12-24V DC CV DMX Led Decoder

$22.47
In stock
SKU
DIM101M-DIN Euchips 5A 3ch 12-24V DC CV DMX Led Decoder

For more Euchips LED Controller, pls check here: https://www.vozop.com/euchips-led-controller.html

If you need COB Led Strip, pls check here: https://www.vozop.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozop.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozop.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozop.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.vozop.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Vozop.com

DIM101M-DIN Euchips 5A 3ch 12-24V DC CV DMX Led Decoder

Short Description:

Item No.:DIM101M-DIN

Input Voltage:12-24

Output Current:5A*3CH

Output Voltage:12-24

Output Power:180-360

Dim Mode:DMX512

G.W.:120

Size:112*35*67

5A*3channel 12-24VDC Button Connector Constant Voltage DMX Decoder DIM101M-DIN

Feature

Meet DMX512 (1990)/RDM (2009) Protocol.

3 channels PWM output, the max current of each channel up to 5A

With the light color selected mechanism, and be able to control the light with 1-3 colors

DMX address can be set manually by button or RDM master if it works on RDM mode.

DC power supply

Support over current protection, short circuit protection function

Package Included:

1 Piece of DIM101M-DIN Euchips 5A 3ch 12-24V DC CV DMX Led Decoder


CE and RoHS approved
