Descaling Machine

$999.99
In stock
SKU
Descaling Machine

The listed price is not real price, For correct product's price or customized product, Pls feel free to
contact service@vozop.com or Pls contact WhatsApp +86 13062213712 Adam Wang

Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various
workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working
machine, pipe working machine etc. In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

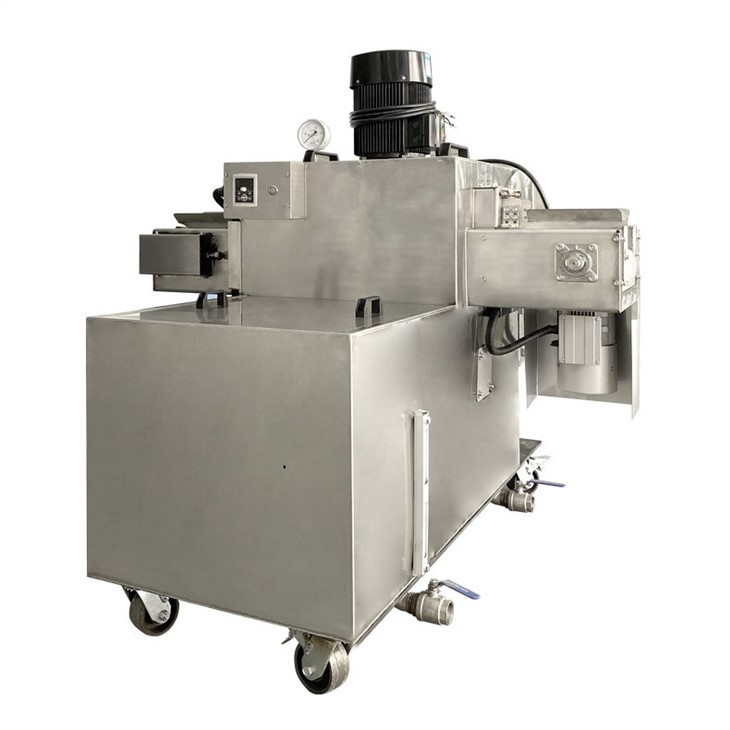

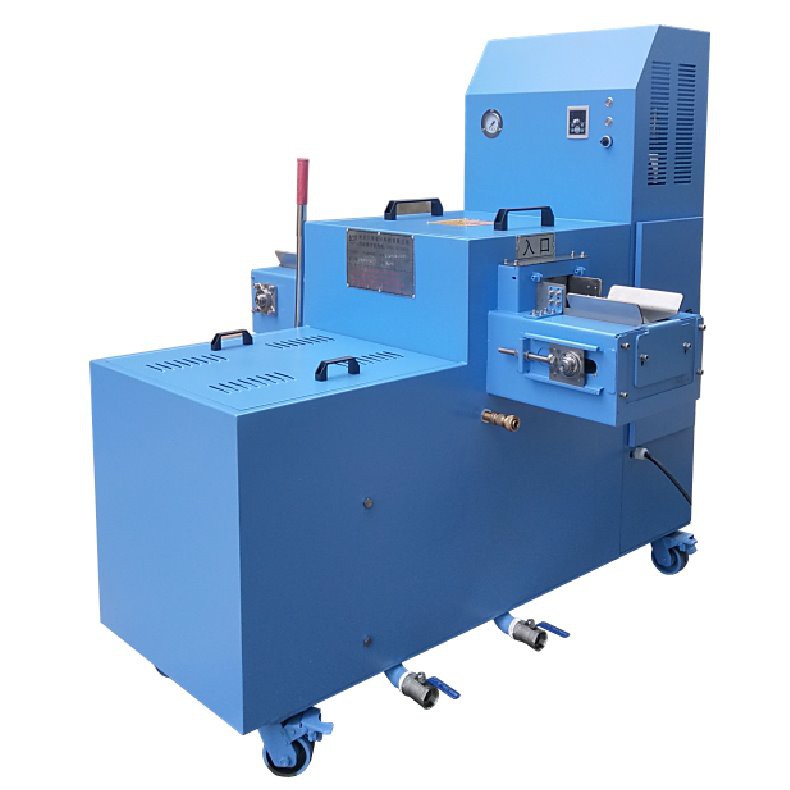

This machine can be used for the descaling the oxide skin, so that it can improve the forging quality much during the forging processing.


Overview

This machine can be used for the descaling the oxide skin, so that it can improve the forging quality much during the forging processing.

In the oxide skin descaling system, the high-pressure pump can generate the high-pressure water to the spray nozzle.
Due to the high impact of the water curtain on the workpiece surface, the oxide skin is treated by cutting and
rapid cooling shrinking, so that it will be descaling from the base.

When the workpiece surface is hit by high pressure water spray, there are something happening:

1. The powerful spray will be formed to an arc shape by nozzle which is just like the cutter. It can cut the solid compact oxide skin.

2. The high-pressure water can go into the workpiece base through cracks. When the workpiece base touches the water,
there is the rapid gasification of evaporation happening which can create the little explosive effects on the workpiece.
In this case, the oxide skin can be removed from workpiece base.

3. When the water touches the oxide skin, there will be the rapid shrinking by cool water,
so there will be transverse shear force, so the oxide skin can be also removed.

4. Due the sloping spray, the oxide skin can be removed by water force.

Descaling_Machine_032206_1

Descaling_Machine_032206_2

Descaling_Machine_032206_3

Descaling_Machine_032206_4

Hot Tags: descaling machine, suppliers, manufacturers, customized, portal machining center, Vibratory
Finishing Machine, small tapping machine, End Mill grinder, hardening, multi function VMC

Machine Specification

Descaling Machine XKS-09-X applicability:

Rod dia:∮20~∮60(mm),Length≤400(mm);

After forging forming:Width≤60(mm),Height≤50(mm),Length≤400(mm)

Machine Feature

1. Reduce raw material loss of forging blank

2. Reduce subsequent processing

3. Reduce forging heat consumption

4. Reduce labor and improve efficiency

Descaling_Machine_032206_5
