Description
Connection Note:
When the led strip is over 10m,please kindly connect power wire to the two ends of led strip, to keep the same brightness.
There is wiring diagram in the following of this page.
Application
Making led screen,Rooms Staris Flashion Show.led wall, advertising board. Apply to hotel, KTV, bars, advertisement
company, decoration company,the city lighting project, entertainment and leisure places lighting.
DC 24V Power Supply:
Input Voltage: 110V / 220V AC
Output Votage: 24V DC
Output Power: 100W/150W/200W/300W
Features:
No Noise, Real power output, long life-span.
* Advise: 24V 100W power supply used for 5M, 24V 150W power supply used for 10M,24V 200W power supply used for 15m,24V 300W power supply used for 20m
Horse Race Led Strip Controller:
Remote Wireless Pixel Controller:
Product parameters:
* Working voltage: DC 12-24V
* Number of points controlled : the maximum can control 2048 pixels
* Remote control distance: 15 meters(with 86 box base)
* Battery model: AAA buttn battery (battery is not included )
* Effect mode: 28 kinds(each mode has lights on and water flow,lights off and backflow)
Touch Panel Wireless Pixel Controller:
Product parameters:
* Working voltage: DC 12-24V
* Number of points controlled : the maximum can control 2048 pixels
* Panel control distance: 15 meters(with 86 box base)
* Battery model: CR2025 button battery(battery is not included )
* Effect mode: 28 kinds(each mode has lights on and water flow,lights off and backflow)

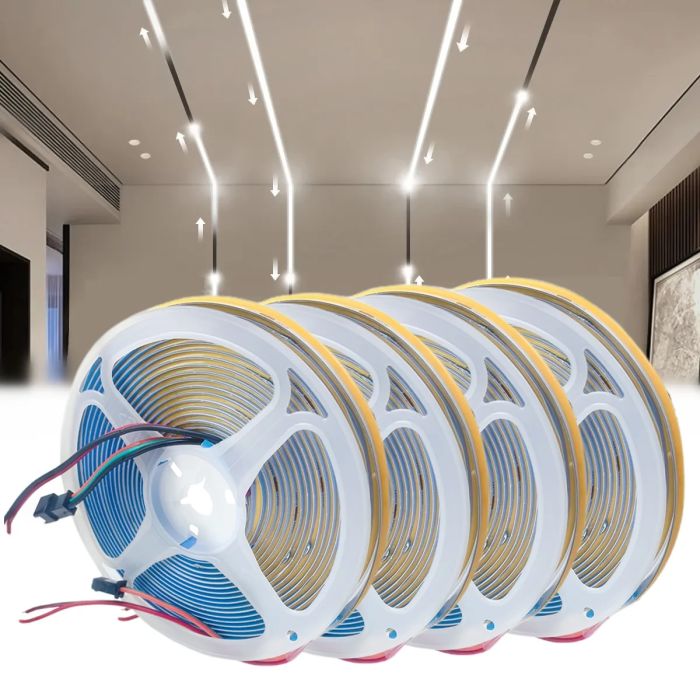

LED Type: COB LED Diodes
LED Qty: 360LEDs/M
PCB width:10mm
Max Power: 12W/M
Working Voltage: DC 24V
Color: Cool White / Warm White / Natural White
Color Temperature: Cool White 6000K / Warm White 3000K / Natural White 4000K
IP Rate: IP44 waterproof
Connector: 3 Pin Male & Female Connector
IC Qty:12pcs IC per meters, 60pcs IC for 5M
CE and RoHS approved
