CNC Wire Cuting Machine

$999.99
In stock
SKU
CNC Wire Cuting Machine

The listed price is not real price, For correct product's price or customized product, Pls feel free to
contact service@vozop.com or Pls contact WhatsApp +86 13062213712 Adam Wang

Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various
workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working
machine, pipe working machine etc. In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

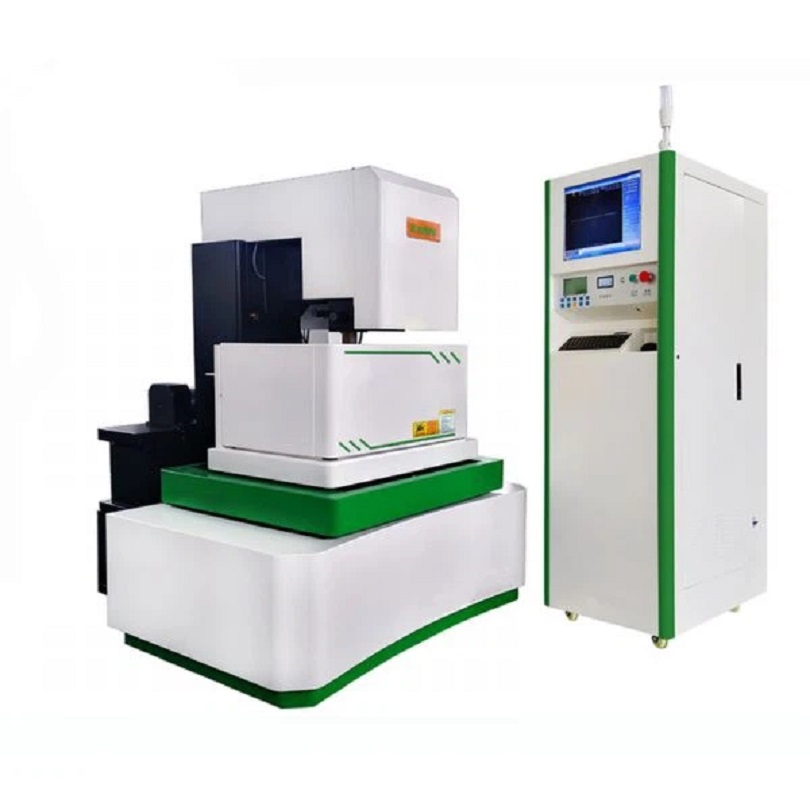

The wire cutting machine is mainly composed of three parts: machine tool, numerical control system and high frequency power supply.

Overview

The wire cutting machine is mainly composed of three parts: machine tool, numerical control system and high frequency power supply.

The numerical control system is composed of single chip microcomputer, keyboard and frequency
conversion detection system. It has the main functions of gap compensation, linear interpolation,
circular interpolation, automatic processing of broken wires, etc.

Can cut materials, such as high strength, high toughness, high hardness, high brittleness, magnetic
materials, as well as precision and small and complex shape parts.

Wire cutting technology, wire cutting machine tools are widely used in all walks of life.

power_supply_0322_1

Hot Tags: CNC wire cuting machine, suppliers, manufacturers, customized, Hand Tools Production Line, CNC Horizontal
Machining Center, CNC Tapping Center, Conveyor Face Polishing Machine, bystronic press brake, punch machine

power_supply_0322_2

Machine Feature

1.Linear rail, Four axes independent UV work,
2.Work pieces to 600mm thick.
3.Taper angle up to ± 30°.
4.Small wire diameters 0.12- 0.22 mm (down to 0 .08mm).
5.Accuracy: 0.01mm, even 0.005mm.
6.Roughness: Ra 0.8~1.6 µm
7.Low consumption, material saving.
8.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
9.Advanced CAD/CAM software with file transfer and translation capabilities.
10.Control system with luxury cabinet. ( HL, HF, W-Cut, A-Cut) .
11.Enclosed cover for protection.

Optional:
Taper cutting accessory. (± 15°, ± 30°.)

power_supply_0322_3
