FAQ
Q: What is the lead time?
A: It will take around one months to finish the machine
Q: Can the machine be put into container?
A: It can be put into 40HQ container.
Q: What is the packaging for this machine?
A: The machine will be packed by pallet.
Q: What about the after-sales service
A: We will be responsible for the after-sales service. The warranty will be one year after machine reaching factory.

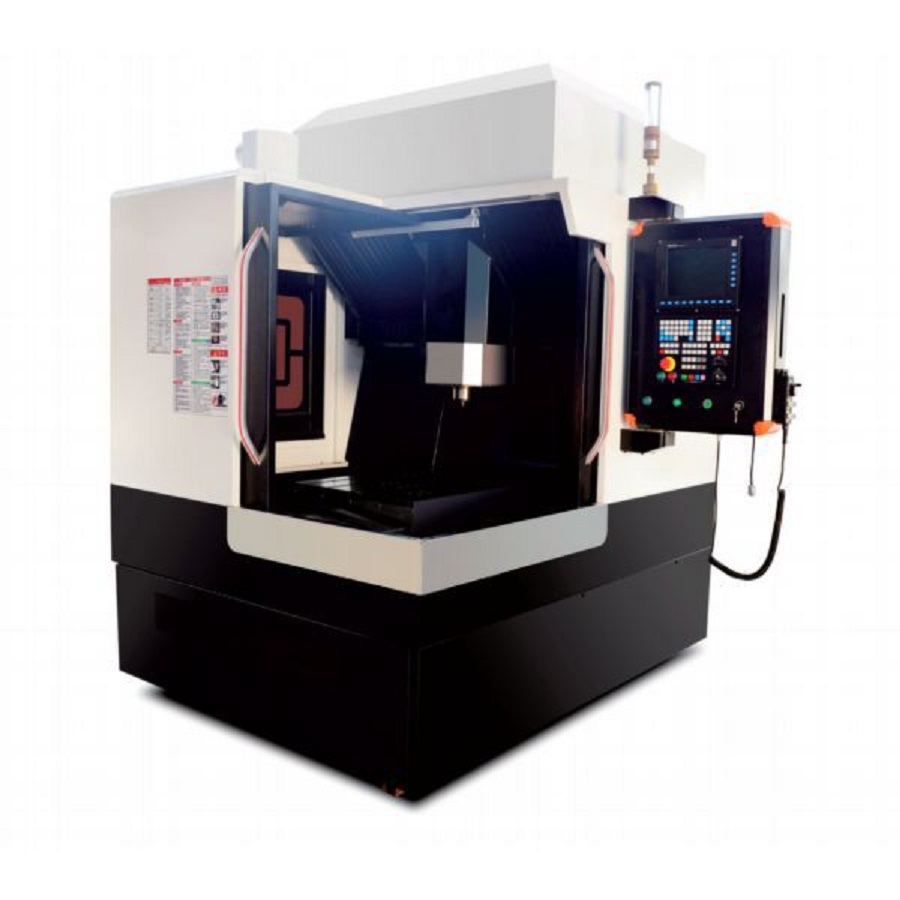

The DX-650 adopts gantry structure and is cast by high-quality Mihanna cast iron. The internal dragon skeleton is
strengthened. All cast iron has been annealed, with high stability and long-term use without deformation.
Overview
The DX-650 adopts gantry structure and is cast by high-quality Mihanna cast iron. The internal dragon skeleton is strengthened.
All cast iron has been annealed, with high stability and long-term use without deformation.
Due to his heavy structure, rigid spindle and high main motor power, this machine can be used for engraving, but also milling.
Sealed outer cover, double - sided doors open to facilitate product processing.
Adopt special high-speed carving and milling machine control system, precision ball screw and linear guide rail,
the coupling has precision measurement, to ensure the stability in the process of processing,
return action zero clearance, improve production efficiency.
Dx-650 is favored by more and more customers for its high cost-performance, fast processing speed and good finish.
Hot Tags: CNC engraving milling machine, suppliers, manufacturers, customized, vertical machnining center,
Press Brake, brother tapping center, ratchet wrench production, laser cutter, shank grinding machine
Machine Feature
1. Sealed cover, double-sided door opens and seals the product for convenient processing.
The new generation of special high-speed engraving and milling machine control system is developed by using Japanese and Taiwan technology.
2. Main components are imported from Japan and Taiwan, such as servo motor, rail, shaft connector, screw assembly.

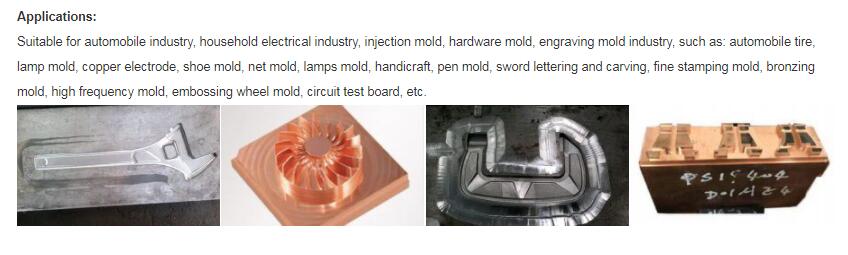

3. Precision machining for different materials: steel, copper, aluminum, graphite, plexiglass, etc.
4, the spindle in high-speed work can be self-cooling, to ensure that the heat will not damage the spindle characteristics.
5. Precision ball screw is closely measured with linear guide rail and coupling device to ensure stability in the processing process and return zero clearance.
6. This machine can be equipped with tool changer at any time according to customers' needs to improve production efficiency.

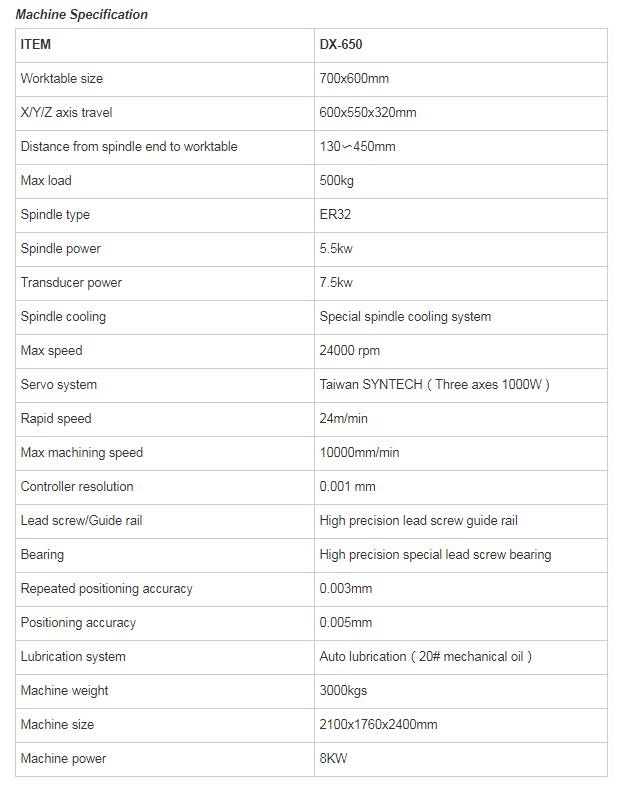

Standard Configuration
1. SYNTECH controller 20MA
2. ER32 high speed e-spindle
3. HIWIN/PMI guide rail
4. HIWIN/PMI lead screw
5. NSK bearing
6. Control cabinet heat exchanger
7. Spindle oil cooling system
8. Air gun
9. Auto lubrication system
10. LED work light
11. Tool setting gauge
Optional Configuration
1. BT30 e-spindle
2. Tool changer
3. CNC rotatory table
4. Fagor controller from Spain
For big order or customized order, Pls feel free to contact service@vozop.com
