C Frame Hydraulic Press

$999.99
In stock
SKU
C Frame Hydraulic Press

The listed price is not real price, For correct product's price or customized product, Pls feel free to
contact service@vozop.com or Pls contact WhatsApp +86 13062213712 Adam Wang

Vozop.com is the professional workshop machinery supplier for more than 10 years. We supply various
workshop machineries, like the CNC VMC, CNC Lathe, CNC Gantry Machining Center, metal sheet working
machine, pipe working machine etc. In the meanwhile, we have been also supplied the turn-key project for some fields, like auto parts, hand tools etc.

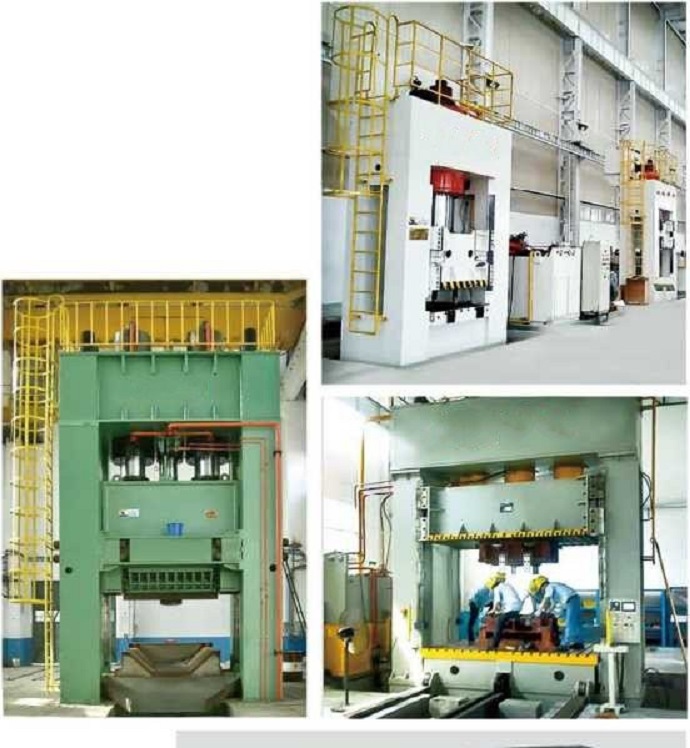

The frame type hydraulic press is also called gantry hydraulic press. The machine adopts the
steel structure of gantry frame, and the mechanical deformation is small after vibration aging treatment.

Frame Type Hydraulic Press

C_Frame_Hydraulic_0322_1

Application

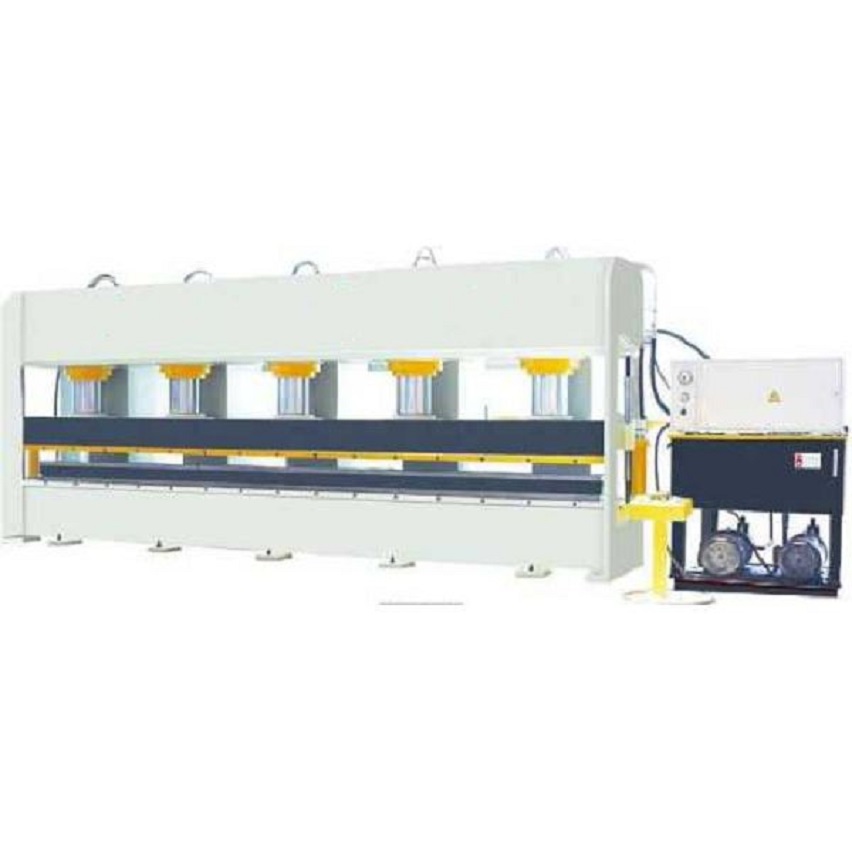

The frame type hydraulic press is also called gantry hydraulic press. The machine adopts the steel structure
of gantry frame, and the mechanical deformation is small after vibration aging treatment. The frame design
is designed by finite element method, with high rigidity and high precision. Gantry type hydraulic press table
can move up and down, greatly expanding the opening and closing height of the machine, more convenient to use.
The frame hydraulic press is composed of main cylinder, hydraulic power system and electrical system. The
worktable is welded with high-quality steel plate to ensure reliability and durability. It is widely used in disassembly,
forming, correction, straightening, press fitting and sheet metal forming in the mechanical industry.
It can be used as a necessary pressure equipment in the modern automobile repair industry.

C_Frame_Hydraulic_0322_2

Hot Tags: c frame hydraulic press, suppliers, manufacturers, customized, double column gantry center, laser engraving
machine for metal, lathe, small horizontal milling machine, tap grinding machine, induction heating machine manufacturer

C_Frame_Hydraulic_0322_3

Machine Feature

● The fuselage adopts computer optimization design, and the frame structure of
all steel plate welding has good accuracy retention.

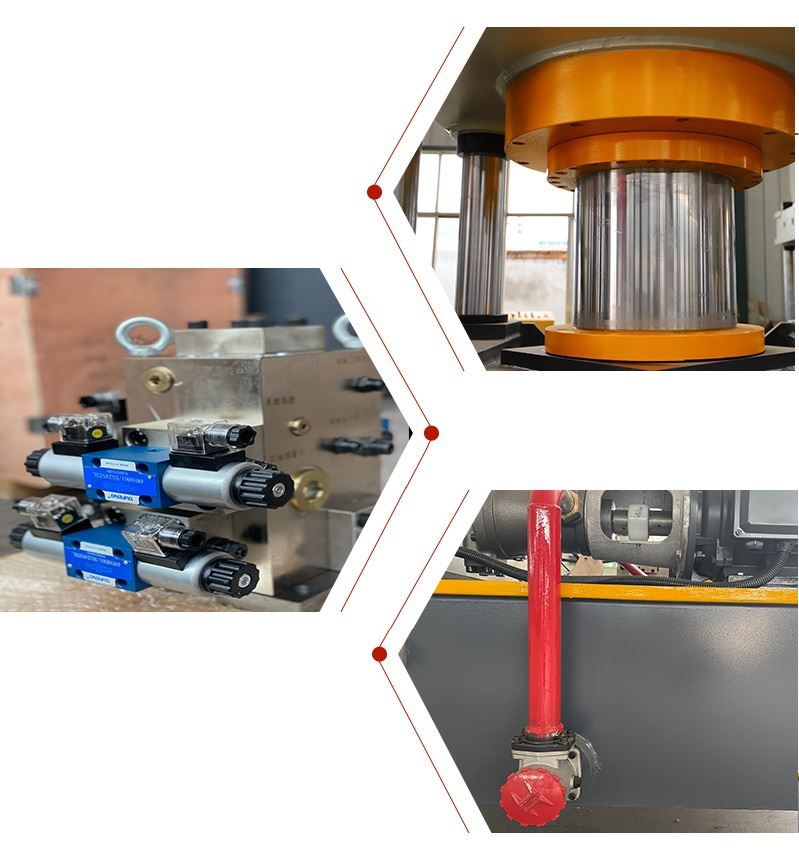

● Hydraulic control adopts cartridge valve integrated system, which is reliable, large flow and long service life.
The system is highly integrated, reducing the connection pipeline and leakage point.

● It adopts button centralized control, and has three operation modes of manual adjustment and
semi-automatic adjustment (fixed range single time and fixed pressure single time).

● The frame type adopts four corners and eight faces guide rail, which has high guiding precision.
Strong resistance to eccentric load and centralized lubrication.

● The sliding block has fast movement speed and high working efficiency.

● The working pressure of slide block, the travel range of no-load fast downward and slow
forward can be adjusted according to the process requirements.

C_Frame_Hydraulic_0322_4

C_Frame_Hydraulic_0322_5

C_Frame_Hydraulic_0322_6
