Basic Features:
Automatically adapts input voltage DC12V-24V(CV)
Input standard DMX512 signal; 3-digital-display shows DMX address.
4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
Support master mode or slave mode;
8 color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
Multiple DMX512 signal interface.
Specifications:
BC-854
Product Model:4CH DMX512Decoder
Input voltage:DC12V-DC24V
Max load current:RGB:4A×3CH W:12A×1CH
Max output power:RGB:48W×3CH W:144W(12V)/RGB:96W×3CH W:288W(24V)
Grey Scale:4096 levels×4
Input Signal:DMX512/1990
Output Signal:Constant Voltage PWM×4
Decode Channel:4CH
DMX512 socket:XLR-3R port/ RJ45 port/terminal block
Dimension :L157×W65×H40(mm)
Weight (G.W):450g
Package Content:

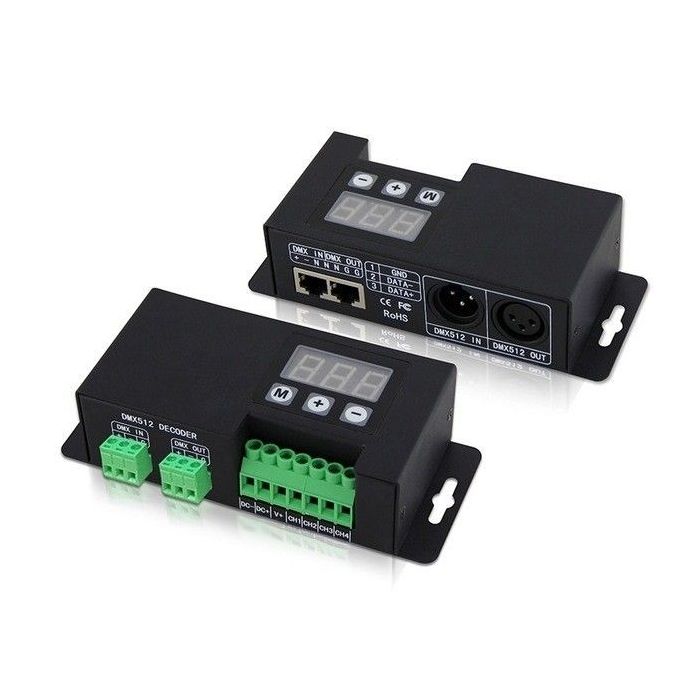

1 Piece of Bincolor Led Controller BC-854 CV 4CH DMX512 Decoder 3-digital-display DMX Signal Driver
1 Piece of User's manual
CE and RoHS approved
