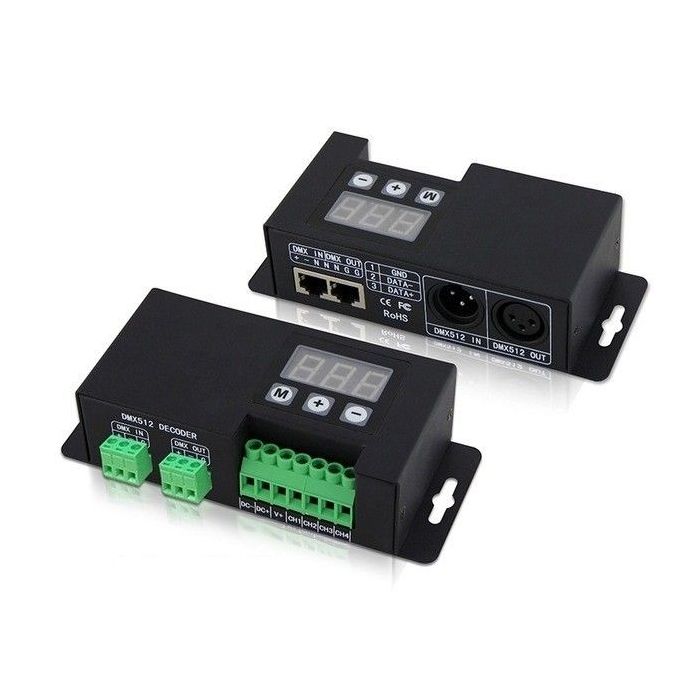

Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver

$38.76
In stock
SKU
Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder

Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years.  Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

Basic Features:

Automatically adapts input voltage DC12V-48V(CC)

Input standard DMX512 signal; 3-digital-display shows DMX address.

4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.

Support master mode or slave mode;

8 color changing modes and 10 speed scales in master mode .

Indicator of the DMX512 signal receiving status.

Power loss memory function.

Over current protection and short circuit protection.Wrong wiring protection at DMX prot.

Multiple DMX512 signal interface.

Specifications:

Product Model:BC-854-CC

Input voltage:DC12V-DC48V

Max load current:350mA/load X4 or 700mA/load X4

Max output power:1-12pcs 1W LED or  1-12pcs 3W LED

Grey Scale:4096 levels×4

Input Signal:DMX512/1990

Output Signal:Constant Current PWM×4

Decode Channel:4 CH

DMX512 socket:XLR-3R port/ RJ45 port/ terminal block

Dimension:L157×W65×H40(mm)

Weight (G.W):450g

Package Content:

1 Piece of Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver

1 Piece of User's manual

Bincolor_Controller_BC_854_CC_1
Bincolor_Controller_BC_854_CC_2
Bincolor_Controller_BC_854_CC_3
Bincolor_Controller_BC_854_CC_4
Bincolor_Controller_BC_854_CC_5
Bincolor_Controller_BC_854_CC_6
Bincolor_Controller_BC_854_CC_7

CE and RoHS approved
