Specifications
1.The receiver automatically adapt to AC85-265V working voltage.
2.The receiver with high voltage input,isolation power supply,can be used with dimming power;
3.Using RF remote control,the wireless signal is with strong penetration power,no limit to direction or obstacles;
4.Simple fashion design, feel comfortable,
5.25%,50%,75%,100%,4 brightness shortcuts and 2 DIY modes for fast dimming.
6.Power loss memory function.
Basic Features
Wireless Remote Control（T1）
Working Voltage:3V(CR2032)(Battery is not include)
Working Frequency:433.92MHZ
Remote Distance:40m-50m
Working Temp:-20℃-55℃
Dimensions：L106 X W56 X H9 (mm)
Weight(N.W):40g
T1 remote:The remote control will enter dormant status without operation for 30 seconds,please press any key to reactive it.
Receiver:R1-010V or R1-PWM5V or R1-PWM10V
Input Voltage:AC85-265V
Output Votage:AC85-265V
Max Output Current： 10A
Max output signal current:20mA or 40mA or 40mA
Output Signal:0/1-10VAnalog Signal PWM5V Signal PWM10V Signal
Working Temp: -30°C-55°C
Dimension:L135×W30xH20(mm)
Weight(G.W):48g
Package Content:

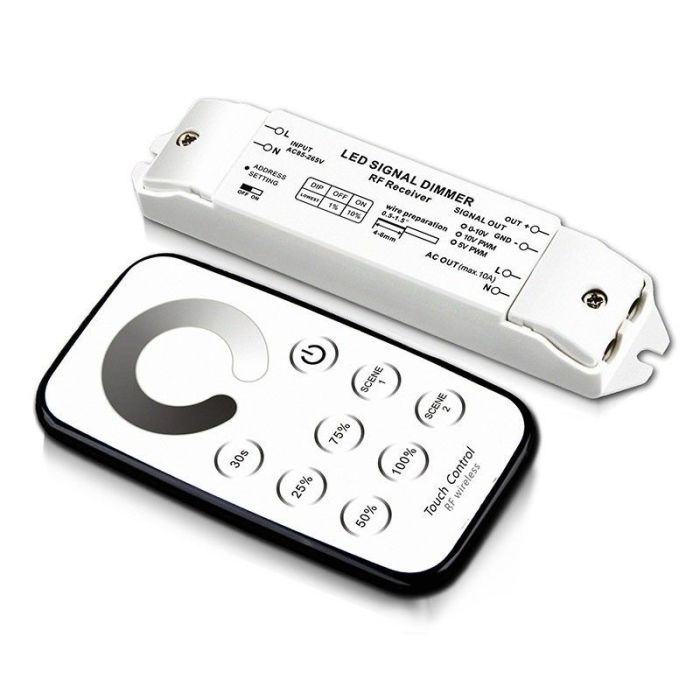

1 Piece of BC-T1+R1 Bincolor Led Controller PWM Color Temperature RF Dimmer
1 Piece of User's manual
CE and RoHS approved
