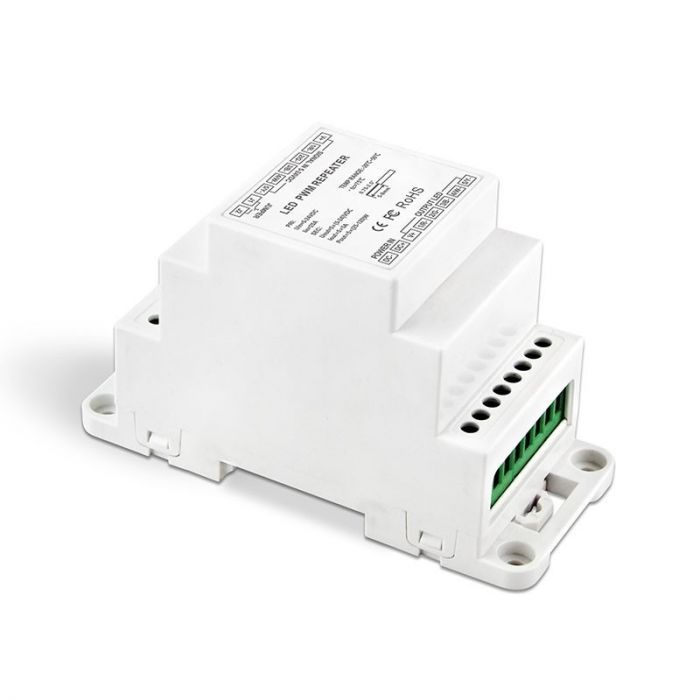

BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail DC5V-24V Amplifier

$22.45

In stock

SKU

BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail

BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail DC5V-24V Amplifier is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DIN Rail LED Power Repeater is suitable for all BINCOLOR power-output style controllers' power expansion,

it accepts PWM SIGNAL, unlimited quantity of power repeater to be connected theoretically. Also,

the power repeater of constant voltage model and constant current model could be connected freely,

Suitable for synchronous control of different LED lamps.

Specifications:

Model: 5CH Power Repeater（BC-965-DIN）

Input voltage: DC5V-DC24V

Max Load Current: 5A×5CH Max 25A

Output Signal: Constant Voltage PWM

Max output power:125W/300W/600W(5V/12V/24V)

Dimension: L111×W46×H66(mm)

Weight (G.W) : 130g

Feature function:

Common anode input and output.

Sustain high frequency common anode PWM input signal.

Work with LED controller, DMX512 decoder, LED dimmer for synchronous control, to fulfill abundant color changings.

Over current protection and short circuit protection.

Optical isolation function, controller damage will not affect the repeater.

Output channels can be output independently or synchronously.

The DIN rail style facilitates the installation of large-scale projects.

Package Included:

1 Piece of BC-965-DIN Bincolor Led Controller Power Repeater DIN Rail DC5V-24V Amplifier

Bincolor_Controller_BC_963_DIN_1

Bincolor_Controller_BC_965_DIN_5

CE and RoHS approved
