LED Power Repeater is suitable for all of our company's power-output style controllers’ power expansion,
it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more
power repeater, unlimited quantity of power repeater to be connected theoretically. Also, the power
repeater of constant voltage model and constant current model could be connected freely,
suitable for synchronized controlling on different LED lamps.
Feature function:
3 Channels RGB output, 5A/CH(total 15A) Single output channel
Accept PWM control.
Unlimited connection quantity theoretically, unlimited power output expansion.
Maximum length from controller to repeater can be 500meters

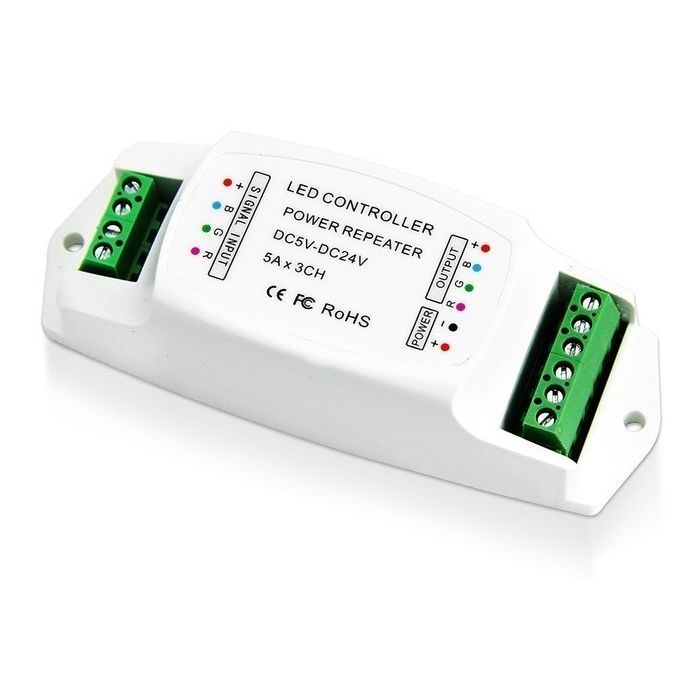

Model: BC-960-5A
Input voltage: DC5V-24V
Max load current: 5A/CH×3
Max output power: 75W(5V)/180W(12V)/360W(24V)
Dimension: L125×W45×H36(mm)
Packing size: L130×W47×H42(mm)
Gross weight: 105g
Package Included:
1 Piece of BC-960-5A Bincolor Led Controller Power Ampilier 5A*3CH Data Repeater
CE and RoHS approved
