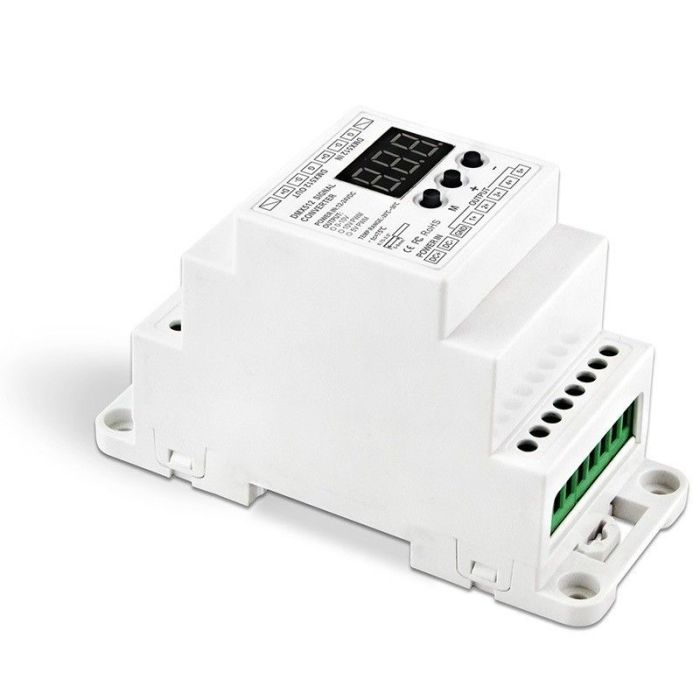

BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter

$32.15

In stock

SKU

BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail

Product Model

BC-835-010V-DIN

BC-835-PWM5V-DIN

BC-835-PWM10V-DIN

Qty

BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter is high quailty LED product for lighting decoration projects, For big order or customized order, Pls feel free to contact service@vozop.com

Vozop.com supply advanced, durable and effective LED products to USA, UK, Germany, France, Spain and other counties for many years. Quality LED lighting equipment and systems with the latest technology.Quick shipping with tracking number, easy and safe ordering with PayPal.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Welcome to use the Din Rail DMX512 to 0-10V converter, which adopted advanced micro-computer

control technology to transfer DMX512/1990 signal to 0-10V signal or PWM 10V、5V signal. 1-5

output channels can be selected, and each channel can be controlled independently.

Specifications:

Model: DMX512 Signal Converter(BC-835-010V-DIN)

Input voltage: DC12V-DC24V

Input Signal: DMX512/1990

Output Signal: 5CH 0-10V signal

Max output power :5×20mA

DMX512 socket : Terminal Block

Dimension: L111×W46×H66(mm)

Weight (G.W) : 110g

Model:DMX512 Signal Converter(BC-835-PWM5V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 5V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

Weight (G.W) : 110g

Model:DMX512 Signal Converter(BC-835-PWM10V-DIN)

Input voltage:DC12V-DC24V

Input Signal:DMX512/1990

Output Signal:5CH PWM 10V signal

Max output power:5×40mA

DMX512 socket:Terminal Block

Dimension:L111×W46×H66(mm)

Weight (G.W):110g

Package Content:

1 Piece of BC-835-010V-DIN/BC-835-PWM-DIN Bincolor LED Controller Din Rail DMX512/1990 Converter

1 Piece of User's manual

CE and RoHS approved
