Feature function:
Automatically adapt input voltage DC12V-24V(CV)
Input standard DMX512 signal; 3-digital-display shows DMX address code..
1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.
DMX Master mode, Slave mode available.
30 changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Product Model:BC-831-CC
Input voltage:DC12V-DC48V
Max load current plz choose:350mA or 500mA or 750mA or 1050mA
Max Output Power:13pcs 3W LED
Grey Scale:4096 levels×1
Input Signal: DMX512/1990
Output Signal:Constant Current PWM
Decode Channel: 1CH
DMX512 socket:Terminal Block
Dimension : L176×W46×H30(mm)
Weight (G.W):168g
Package Content:

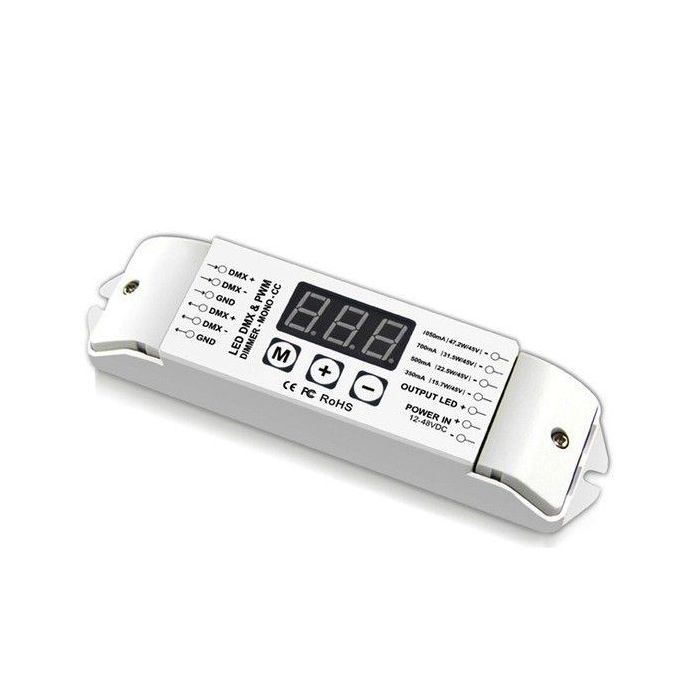

1 Piece of BC-831-CC Bincolor Led Controller DMX512 Decoder Dimmer Driver
1 Piece of User's manual
CE and RoHS approved
