Feature function:
Working voltage from DC12V~DC24V
Convert 0 to 10V / 1-10V analog signal into 5V PWM signal.
Select the input of 0 to 10 V / 1-10V analog signal or the output of linear/ logarithmic dimming curve the by 2 DIP switches.

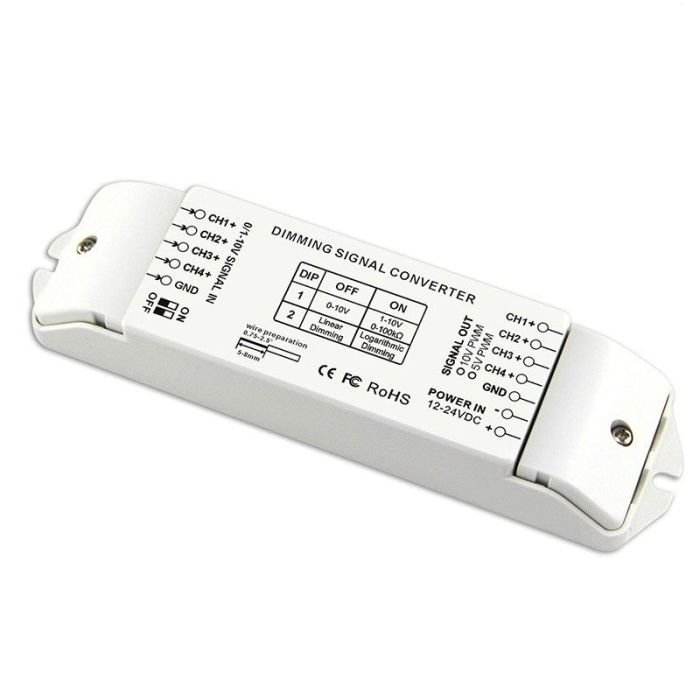

BC-334-PWM5V Dimming Signal Converter
Product Model: BC-334-PWM 5V
Input Voltage: DC12V-DC24V
Input Signal: 0-10V/1-10V analog signal
Output Signal: 5V PWM× 4CH
Output Dimming Curve: linear/ logarithmic dimming optional
Output Signal Socket: terminal block
Product Dimension: L176×W46×H30(mm)
Weight(G.W): 132g
BC-334-PWM10V Dimming Signal Converter
Product Model:BC-334-PWM10V
Input Voltage:DC12V-DC24V
Input Signal: 0-10V/1-10V analog signal
Output Signal:10V PWM× 4CH
Output Dimming Curve:linear/ logarithmic dimming optional
Output Signal Socket:terminal block
Product Dimension:L176×W46×H30(mm)
Weight(G.W):132g
Package Content:
1 Piece of BC-334-PWM5V PWM10V Bincolor Led Controller 4CH Signal Converter Driver
1 Piece of User's manual
CE and RoHS approved
