Feature function:
5A Model: Max output 5A*3CH,15A in total.
0 - 10V to PWM dimming signal conversion.
Optical isolation protection for input & output.
Compatible with many brand dimming systems.
Working voltage from DC12V~DC24V.
Product parameter:

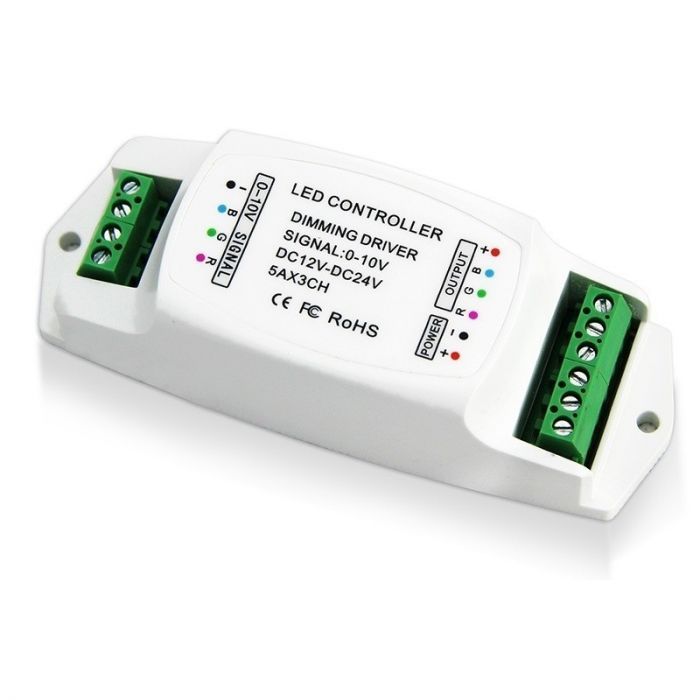

Product Model:BC-330-5A
Input Voltage:DC12V-DC24V
Input Signal:0-10V analog dimming signal
Max Load Current:5A/CH×3CH
Max output power:180W(12V) / 360W(24V)
Output Signal:Constant voltage PWM
Product Dimension:L125×W45×H36(mm)
Package Size:L131×W49×H49(mm)
Gross Weight:90g
Package Content:
1 Piece of BC-330-5A LED Dimming Driver 5A*3CH 0-10V LED Driver
1 Piece of User's manual
CE and RoHS approved
