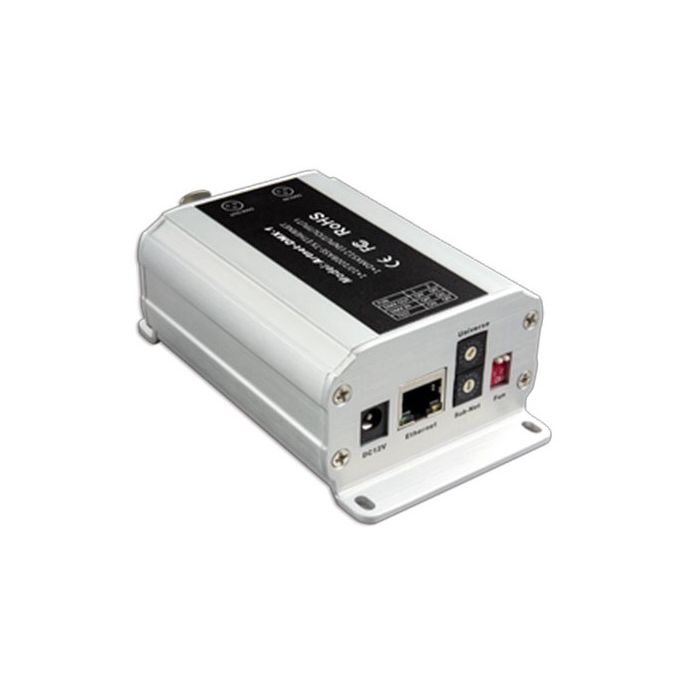

Artnet-DMX-1 512 Channels Signal Bidirectional Ltech LED Controller
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Brief introduction
Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the
Artnet network date package into DMX512 data, adopting high-speed ARM processor, stable and reliable working.
Following Art-net standard protocol, it support RJ45 network interface and standard DMX512 output interface.
Artnet-DMX-1 can be configured in one of two ways: Artnet convert into DMX512, or DMX512 convert into Artnet.
Artnet-DMX-2 has two standard DMX512 data output port, output 1024 data in total.
It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED
dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene,
stage performances, entertainment and so on.
Performance Features
● Based on Artnet protocol network data communication, accept network DMX data;
● IP address is bound to Subnet, no need to reset, plug and play.
● Artnet-DMX-1 could be configured for either Artnet-DMX512 type or DMX512- Artnet Type.
● When configured for DMX -Artnet type. Data packets will be sent over the network by broadcast Mode.
● Manage Artnet on broadcast mode or unicast mode.
● One set DMX512 data-out for Artnet-DMX-1, two for Artnet-DMX-2.
● Set different network segments to avoid multiple sets Artnet data interference.
● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.
Power input 12Vdc (with a power adapter)
Input signal Artnet/DMX512
Output signal DMX512/Artnet
DMX channels 512 channels
working temperature -20℃～65℃
Dimension L120×W73×H45mm
Package Size L200×W80×H50mm
Weight (G.W) 290g
Package Included:
1 Piece of Artnet-DMX-1 512 Channels Signal Bidirectional Ltech LED Controller
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
