Summarization
DMX 0-10V dimmer adopt industrial grade advanced computer control chip, the shell adopt guide rail type,
suitable for industrial environment; Increase 3 channel relay power supply output, as 3 channel 0-10V power supply input,
the dimming effect is better. Used to control the lamps and lanterns which connect with 0-10V power supply, have convenient wiring,
easy to use such advantages; According to customer's actual demand can realize the dimming function.
Technical parameters
Working temperature: -20-60℃
Power supply voltage: AC90～240V（50～60Hz）
Output: 3 channel
Output signal: 0-10V
External dimension: L90×W76×H61 mm
Packing size: L100×W80×H75 mm
Net weight: 265g
Gross weight: 310g
Static power consumption: <3W
0-10V output current: <15mA(each channel)
Relay maximum output power: <200W(each channel)
Package Included:

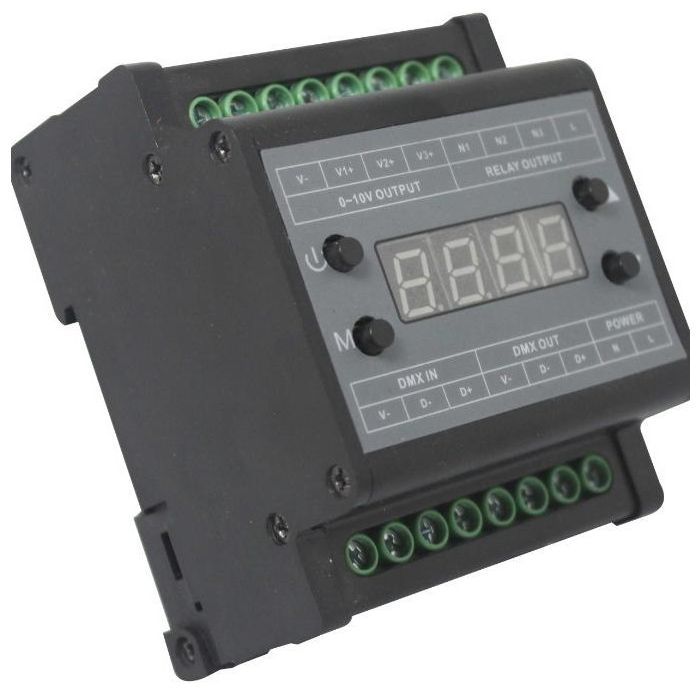

1 Piece of AC90-240V High Voltage DMX Dimmer 3 Channels Output 0-10V DMX303
1 Piece of User's Manual
CE and RoHS approved
Shipping & Delivery
Great Choice for Green Life, CE and RoHS Approved
Quick Shipping & Online Tracking
Mostly your order will be shipped around 1 to 2 business days after payment received. If you need your order urgently,
Pls do contact us right after or before you placed orders. Pls Email to service@vozop.com
vozop.com is very easy to use, we will always provide the online tracking number to you.
The shipping fee is base on the weight of the products. You would easily choose the shipping
method (DHL/Fedex/UPS/TNT/USPS/China Air Post/Economic shipping) when you check out.
We have been in LED business for 10 years, all the products will be well packed and protected to
make sure our customer will quickly receive all the products at great condition. We weekly ship hundreds
of parcels to USA, UK, France, Germany, Italy, Switzerland, Spain, Canada, Sweden, Australia and other countries.
For customized LED Products or further assistance, Please feel free to contact our service team at service@vozop.com
