IC type: WS2811
IC quantity: 50pcs
The length of this light string is about 5 meters (16.4ft), the length between each LED is about 10cm.
LED quantity: 50pc ( 50 Pixels )
Gray scale: 256 levels
LED type: 8mm full RGB strawhat LED, brand Epistar LED, excellent performance
Dimension: 12x14mm
Punch hole diameter size: 12mm
RGB LED quantity: 50pcs
Viewing angle: 120 degrees
Working voltage: DC 5V
Working current: 60 mA
Working consumption: 0.3W each, 50 LEDs for 1 roll, total 15 watts
Protection rate: IP68 Waterproof
Color of wires: mix color
Working temperature: 40~60 Celsius
RGB pixels are digitally-controllable lights which you can set to any color or animation
Each RGB LED and controller chip is molded into a 'dot' of silicone, the dots are waterproof and rugged, there are
four flanges molded in so that you can 'push' them into a 12mm drill hole in any material up to 1.5mm/0.06" thick.
The pixels are connected by a 3-conductor cable. Red is +5V, Yellow is Ground, Green is Data and Data is shifted down
from one pixel to the next so that you can easily cut the strand or attach more onto the end.
Each dot is digitally controlled, with an internal 5-bit PWM LED driver (15-bit color for 32,768 different shades), the pixels
must be clocked by a microcontroller.
The pixels use 8mm diffused RGB LEDs with brightness of about 300 mcd per individual r/g/b LED.
This digital IC LED pixel strip works with SD controller
Individually Control
Conformal Coating, PVC glue protection
Easy installation (punching 12mm hole on metal panel)
Application: outdoor, indoor use, cove lighting, path and contour lighting, backlight for signage letters, architectural lights
for canopy, corridor, window, archwa, DIY lights for home use, marine light, task lighting, replacement of fluorescent light,
decorative lights for holiday, event, show, exhibition

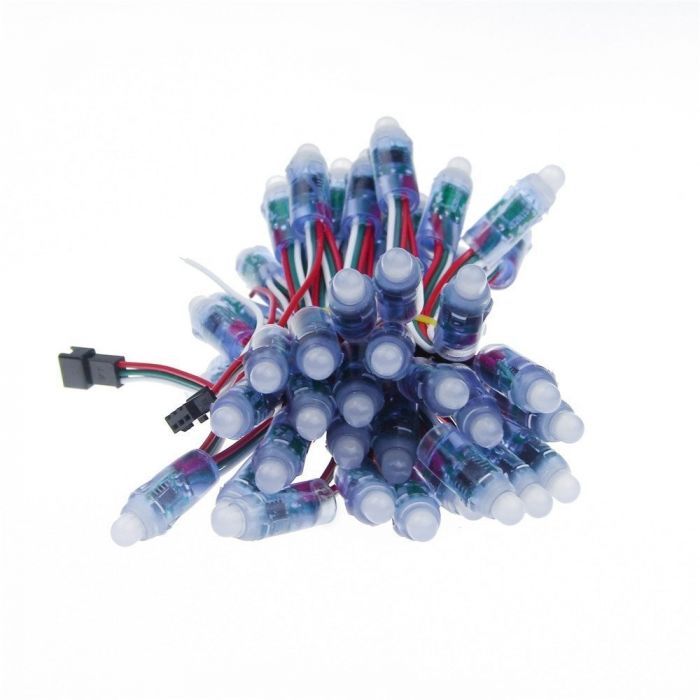

Package Included:1 Sting of DC 5V WS2811 Addressable RGB LED Module Waterproof Pixel Light (50pcs a String)
CE and RoHS approved
