Products Performance:
Input Power: DC9V～DC24V Maximum load current: 4A/4CH
Maximum power load: 192W (12V)384W (24V) Output gray level: 256
Input Signal: DMX512/1990 Output signal: 4 channels Constant PWM
Output DMX : 4 channels DMX512 socket standard RB;
Size:94MM*47MM*24MM Package Measurement:
Net Weight:60g Gross Weight:g:80g
Basic functions:
There are 4 output channels, can connect with single or RGBW lamps；
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC9V-DC24V;
Each occupied by 4 DMX address.
Package Content:

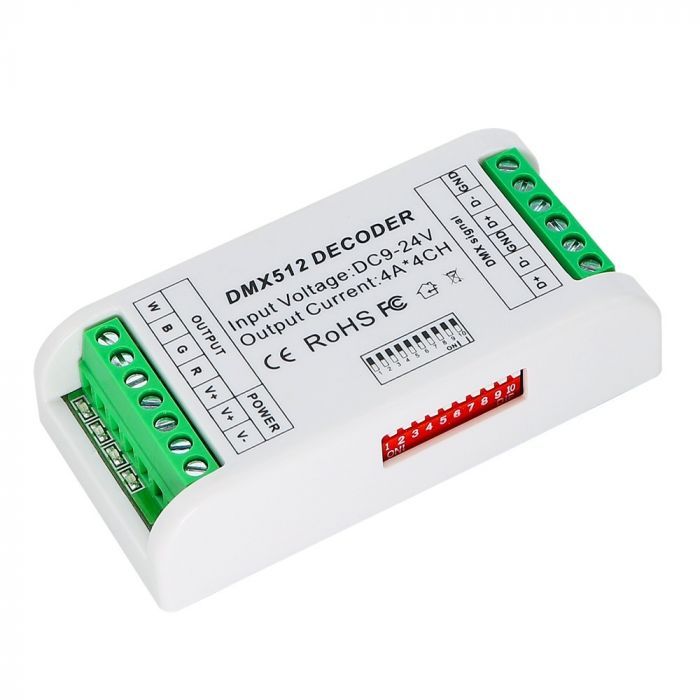

1 Piece of 4CH Mini DMX512 LED Controller DMX Decoder Console 12V-24V
Structure Diagram：
CE and RoHS approved
