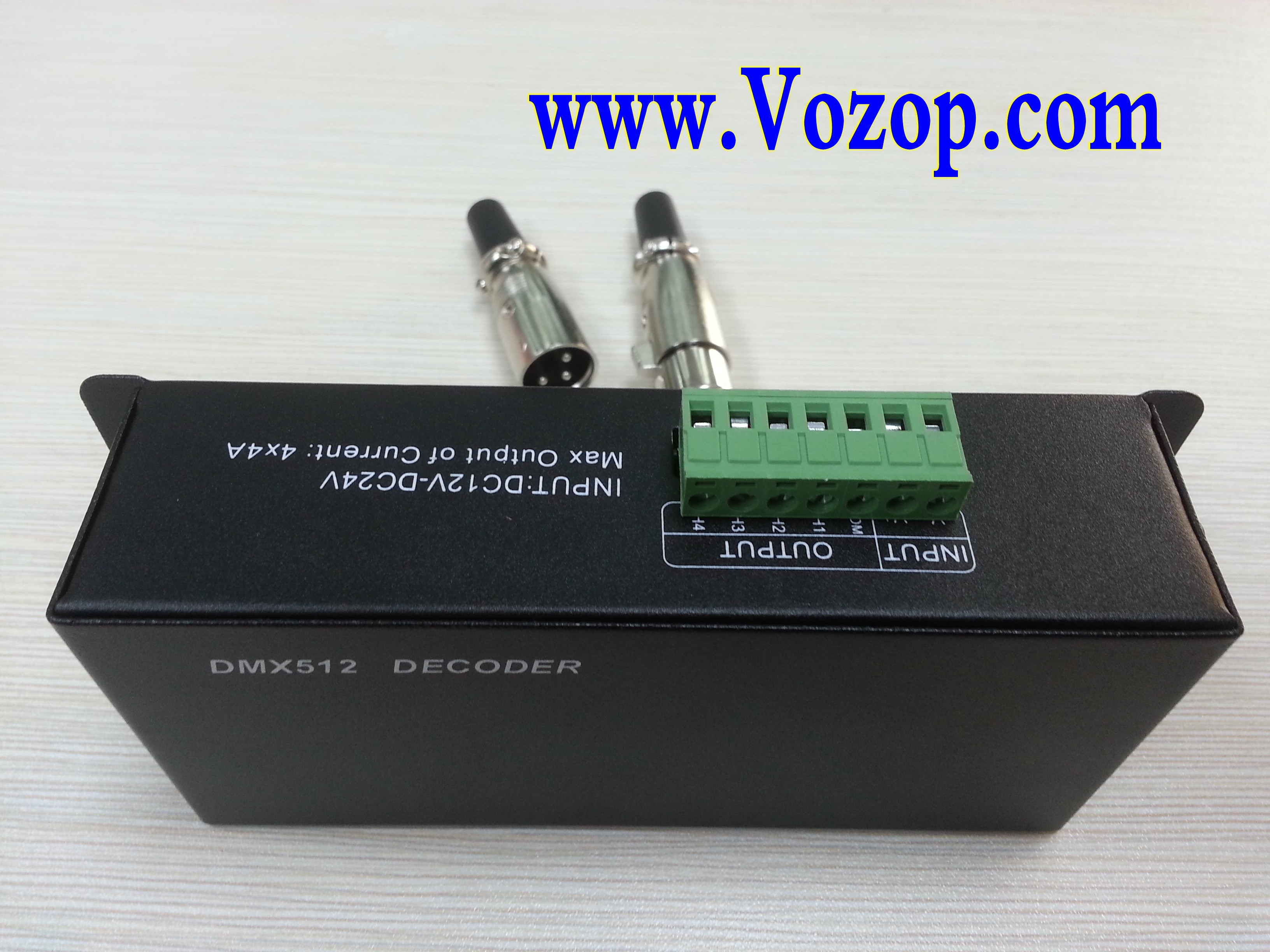

This DMX512 Decoder and Driver takes a DMX signal and uses it to drive 4 channel RGBW (RGB+White) LED fixtures,
providing full color and brightness control. Simply connect the DMX input on this unit, assign its DMX channel ID using
the dip switches on the product, and connect the red, green and blue wires on your LED fixture. Within minutes,
you'll be controlling your LED fixtures via DMX.

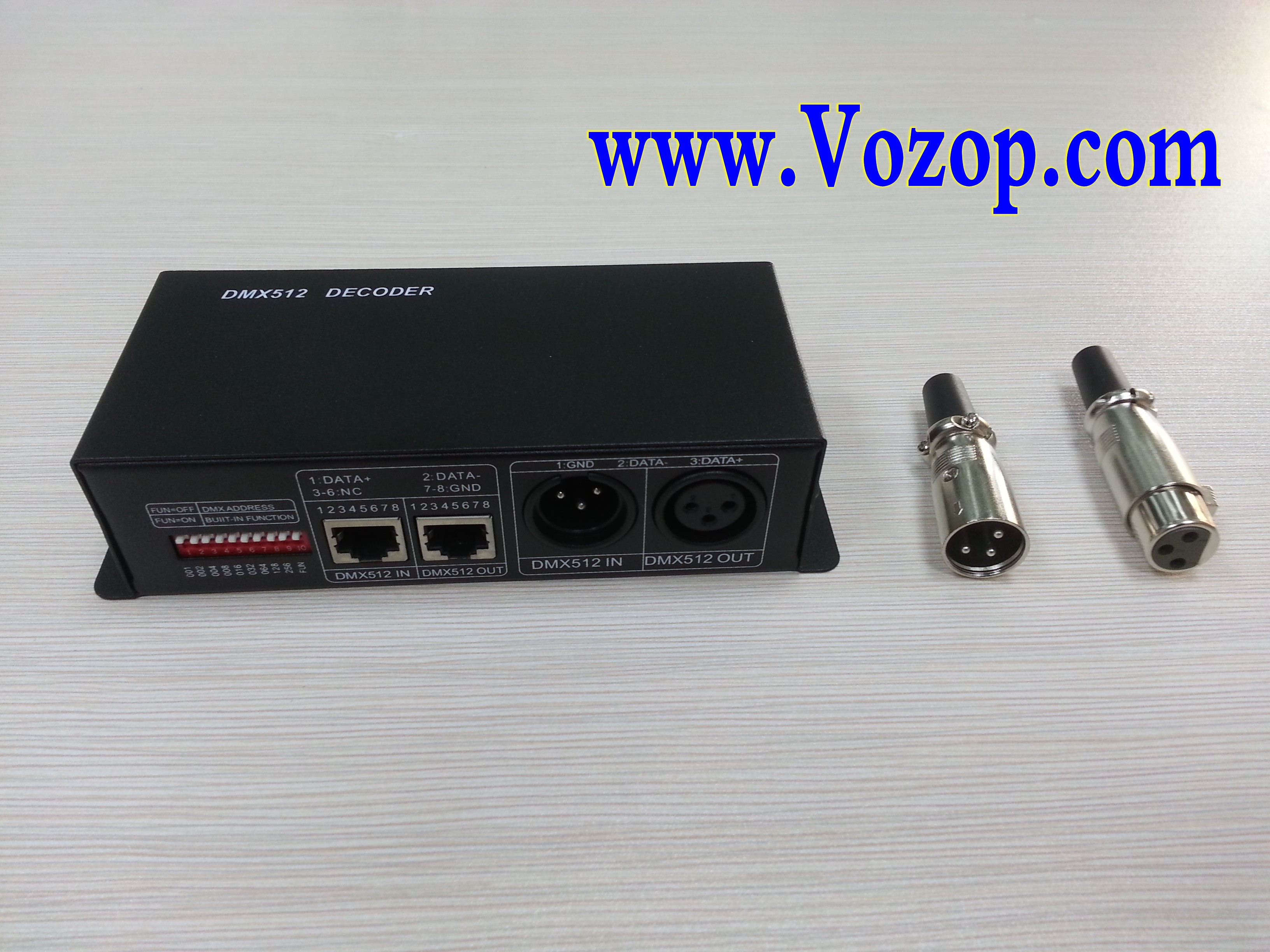

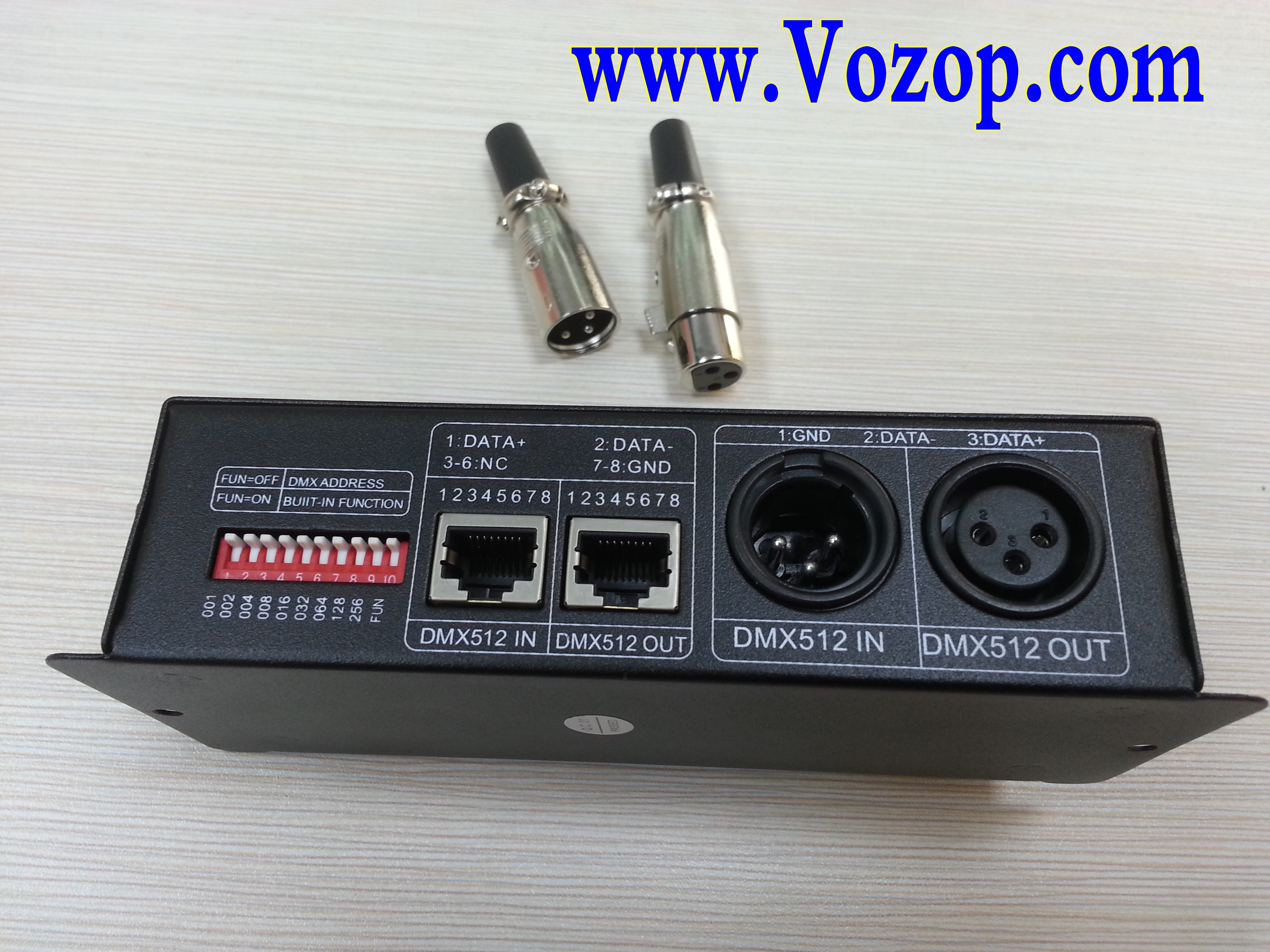

This is a durable DMX 4-channel decoder with RJ-45 and 3-Pin XLR Jacks for DMX in and out.
You can mix and match the connections XLR in and RJ-45 Out or just use one or the other.
It also has built-in testing and stand alone features.
Simply turn on the last dip switch labeled 'fun' to enable stand alone mode (when you don't have a DMX single or for testing).
You can set the color or fade/flash modes and adjust the speed by using different combinations of the dip switches.
Specifications:

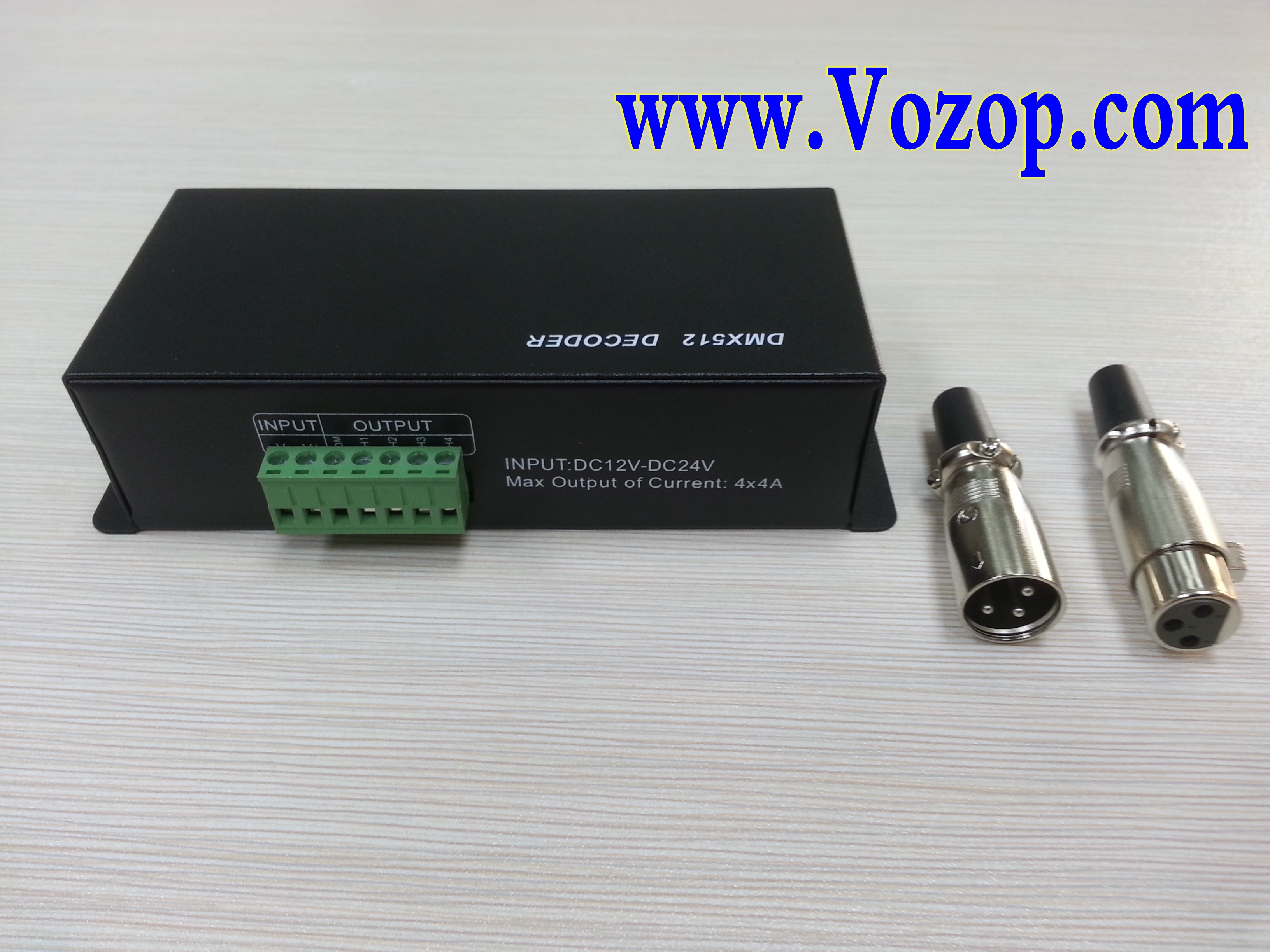

1. Input Power：DC12V-DC24V
2. Output Current：4A per channel（total current: 16A）
3. Output Power：144W(12V) 288W(24V)
4. Brightness Control ：256 scales
5. DMX Address：4 channels
6. DMX512 Standard：DMX512
7. Product Dimension：166×67×41（mm）
8. Casing Size：185×85×59（mm）
9. Weight：0.85lb
Basic Functions
1. 256 scales of smooth brightness adjusting.
2. User addressable DMX interface-with easy dip-switch settings and testing modes.
3. High power output, 4 output channels.
4. DMX pass through and in/out connector for daisy chain configurations.

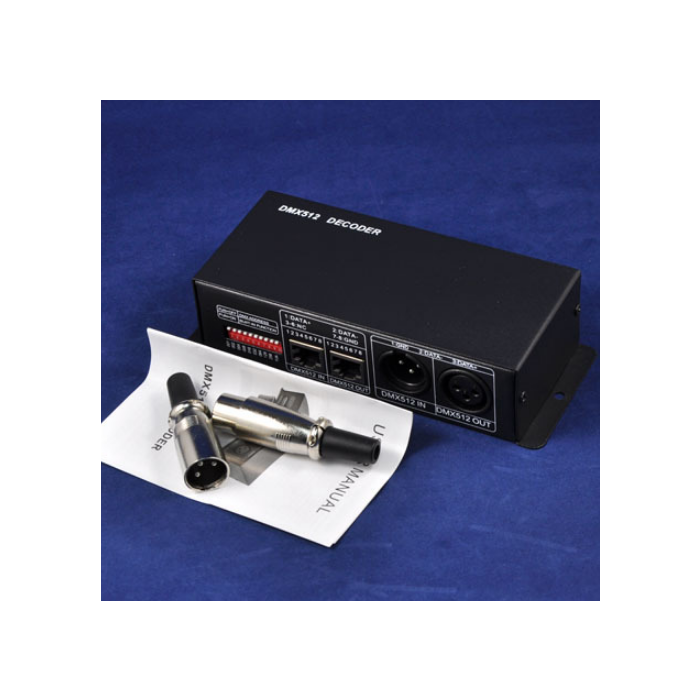

Package Include (As Photo below):
1 Piece of 4 Channel DMX Common Controller DMX512 Decoder
2 Piece of RJ-45
1 Piece of User's Manual
CE and RoHS approved
