Meets DMX512
256-levels brightness, full-color with driver controls
Can achieve asynchronous color changes effect under working with controller.
With the light color selected mechanism, and be able to control the light with 1~4 colors
Modularizing and can be matched with different LED module neatly
Product description
Each DMX common controller occupied 4 DMX address, adopt coding switch is setting DMX original address
code from 1 to 9, 1 is the lowest, and 9 is the highest , 511 address code could be setted in all. This DMX common
controller adopts the advanced
micro control unit, receives standard DMX-512 digital control signal and transformed it into PWM signal to driving LED
With over 30 preprogrammed color changing patterns, including gradual changing, screening and jumping, our DMX
controller offers a variety of display options.. As a powerful color managing controller, it will enable you to choose the
desired pattern and appropriate speed to manage your RGB LED lighting fixtures.With 0 to 100 dimming grades, you
can also control the color and brightness according to your requirements easily, and mix up to 1 million different colors.
The LCD monitor on the controller offers an easy and visible managing method; the mounting bracket will enable the
operator to easily fix the controller onto any place.
Specifications:
Working temperature: -20 to +60 centigrade
Output: 4 CMOS drain-open output
Connecting mode: common anode
Working Voltage: Pls Choose, DC 5V or DC 12V 24V.
Output Current:<4A(each circuit)
Output Power: 5V:<80W, 12V:<192W, 24V:<384W (4 circuit)
Static power consumption:<1W
-Product size: L177*W42*H33mm
Net weight:201g
Application: This controller gives any uses full lighting manipulation to meet almost all applications need by allowing
users to control all colors, hue, and brightness of the RGB strip light.
Package Included:

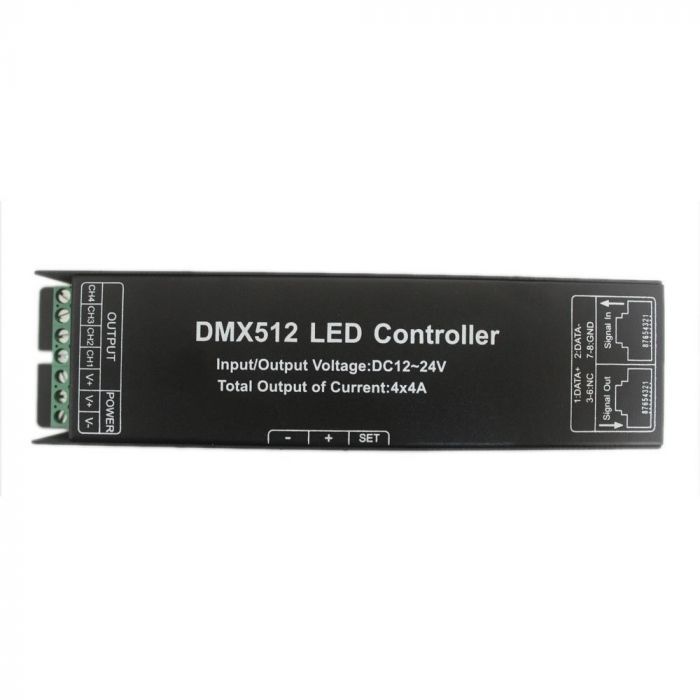

1 Piece of 4 Channel Digital Display DMX Decoder DMX512 LED Controller Driver for RGBW LED Strip or lights
CE and RoHS approved
