Products Performance:
Input Power: DC12V～DC24V Maximum load current: 4A/CH×3
Maximum power load: 144W (12V)288W (24V) Output gray level: 256
Input Signal: DMX512/1990 Output signal: 3 channels Constant PWM
Output DMX : 3 channels
Size:94MM*47MM*24MM Package Measurement:
Net Weight:64g Gross Weight:80g
Basic functions:
There are 3 output channels, can connect with single or RGB lamps；
0-100% dimming output, each channel 256 gray levels
International standard DMX512 input protocol, address code set by DIP switches;
Wide voltage DC input DC12V-DC24V;
Each occupied by 3 DMX address
Package Content:

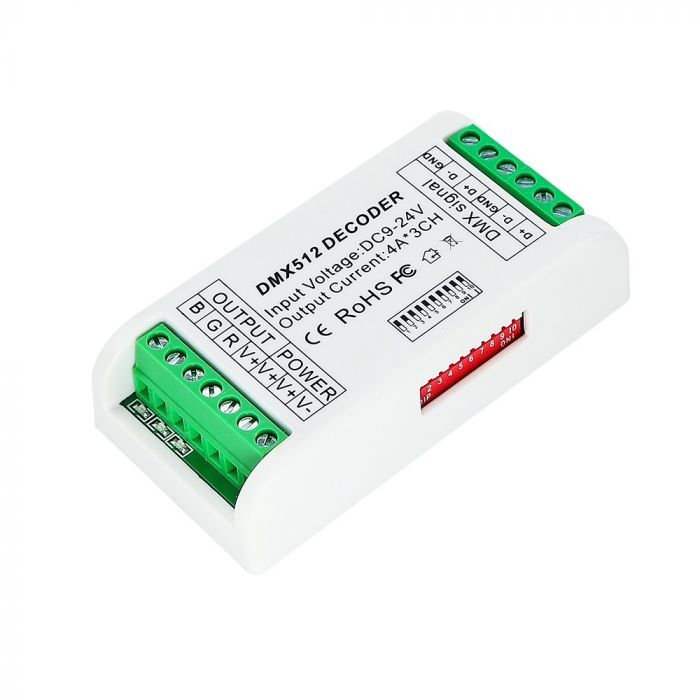

1 Piece of 3CH DMX512 Constant Decoder DMX Controller Dimmer 12V 24V Console
Structure Diagram：
CE and RoHS approved
